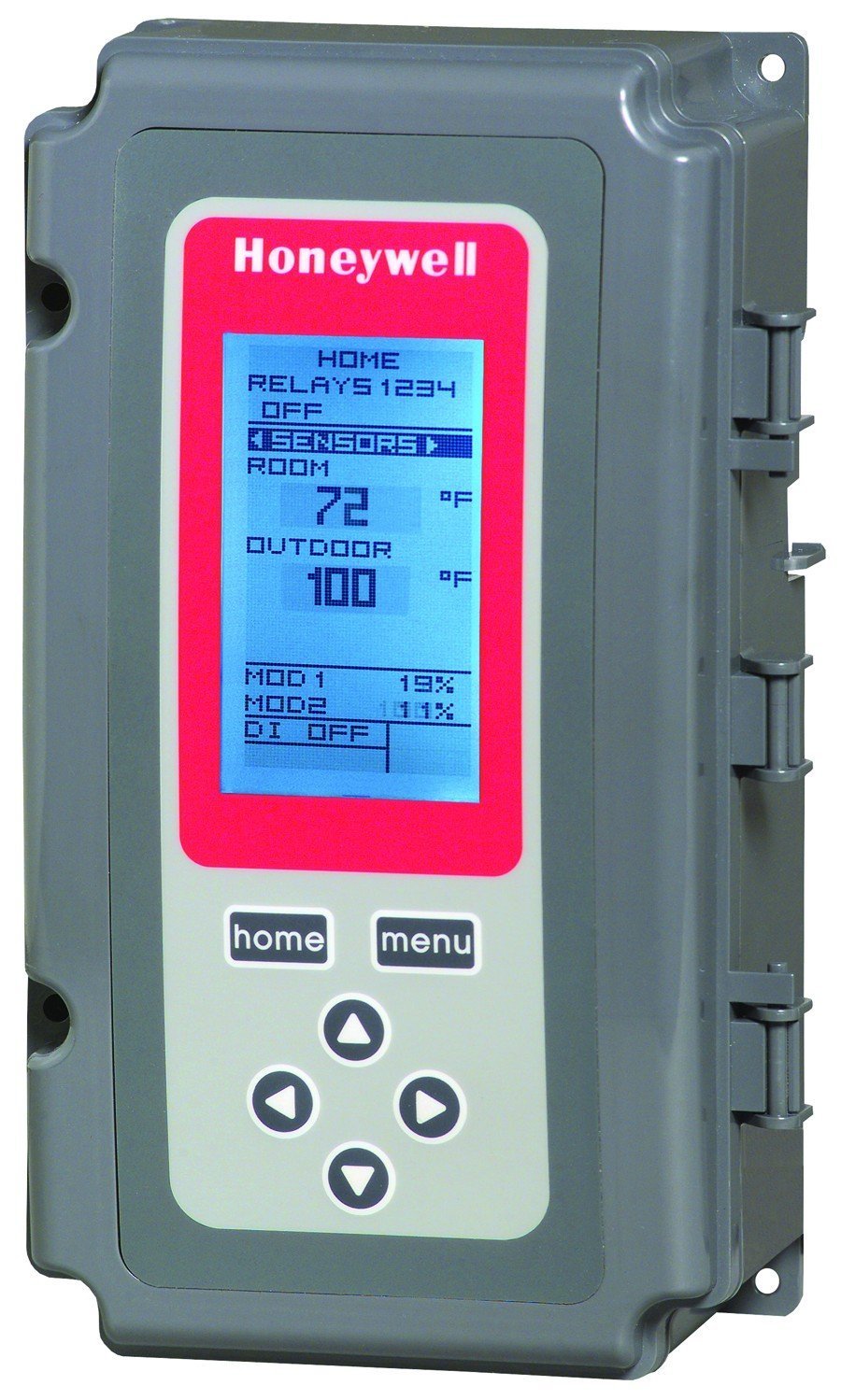

Honeywell T775M2022 Modulating Electronic Temperature Controller With 2 SPDT Relays 2 Analog Outputs 1 Sensor NEMA 4X Enclosure

Product Description

The Honeywell T775M2022 Modulating Electronic Temperature Controller is designed for precise temperature management in commercial and agricultural settings. Featuring two temperature inputs, two SPDT relays, and two analog outputs, this controller ensures reliable operation in harsh environments, thanks to its NEMA 4X enclosure.

• Two temperature inputs
• Two SPDT relays
• Two analog outputs

Product Highlights

This temperature controller by Honeywell, model number T775M2022, is built for applications requiring electronic accuracy and remote temperature sensing. Its robust NEMA 4X enclosure ensures durability, while its intuitive interface simplifies installation and operation.

Product Information

Standard Information

• Brand: Honeywell
• Item Number: T775M2022

Technical Specifications

• Type: Modulating, NEMA 4X
• Analog Outputs: 2
• Relay Outputs: 2 SPDT
• Sensor Inputs: 2
• Voltage: 24 VAC, 120/240 VAC
• Frequency: 50 Hz, 60 Hz
• Relay Contact Ratings 24V: 10.0A resistive
• Relay Contact Ratings 120V: 1/2 hp, 9.8 AFL, 58.8 ALR, 125 VA Pilot Duty
• Relay Contact Ratings 240V: 1/2 hp, 4.9 AFL, 29.4 ALR, 125 VA Pilot Duty
• Dimensions: 8.15625 inches high x 4.40625 inches wide x 2.9375 inches deep
• Sensor Element: 1097 ohms PTC at 77 F (25 C)
• Number of Sensor Inputs: 2
• Sensors Included: T775-SENS-WR (1)
• Maximum Distance to Sensor: Up to 1000 ft
• Setpoint Temperature Range: -40 F to 248 F
• Accuracy: +/- 1 F at 77 F
• Differential Temperature: 1 F to 150 F
• Operating Ambient Temperature Range: -40 F to 140 F @ 60 Hz
• Expandable: Add 1 or 2 T775Ss (4 relays each)
• Analog Output Type: Electronic Series 90
