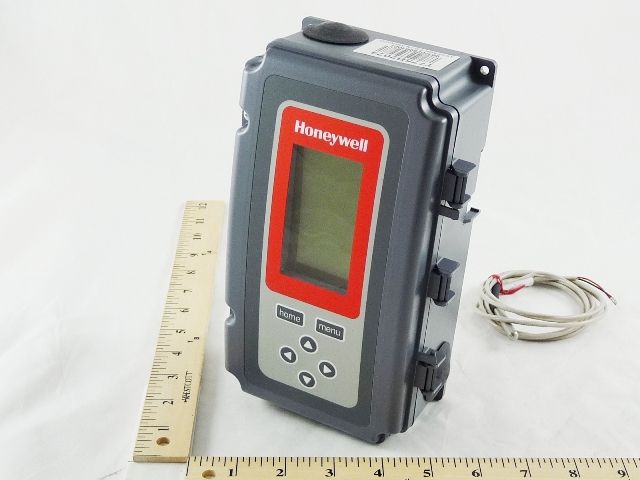

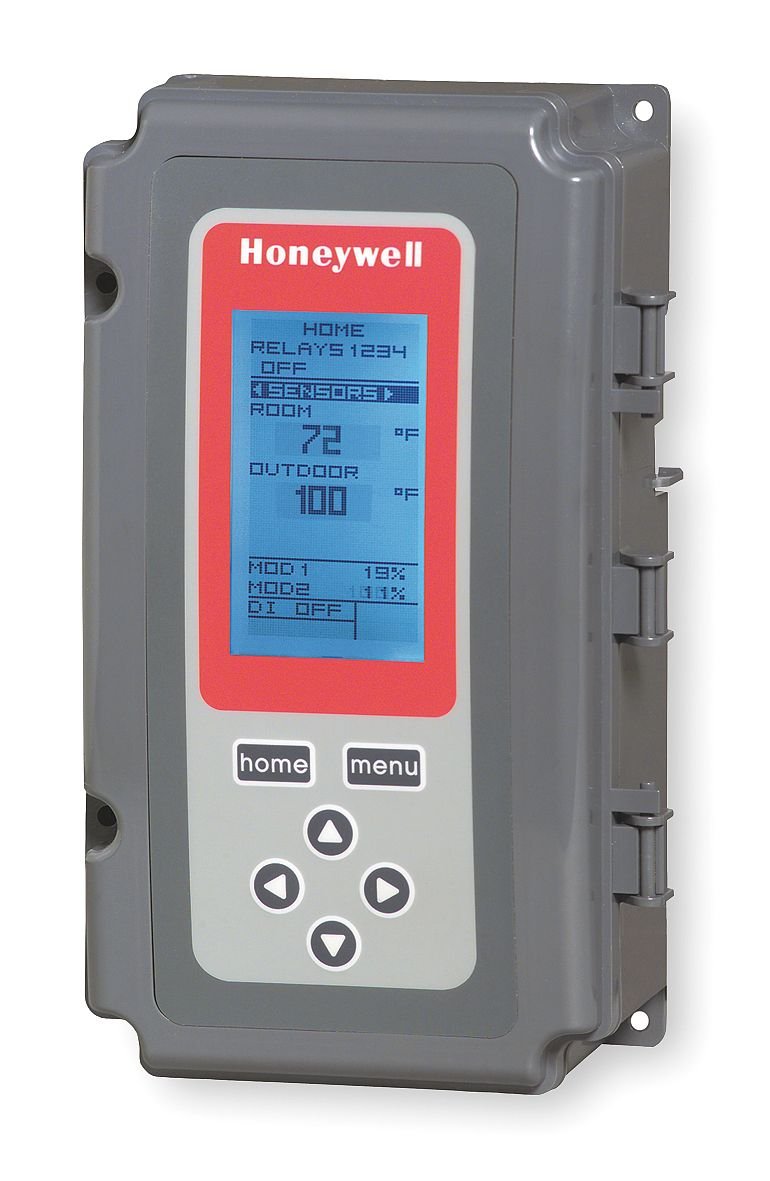

Honeywell T775B2024 Temperature Controller -40/248F TempCtrl 4SPDT NEMA4X

Product Description

The Honeywell T775B2024 is an electronic temperature controller designed for precise temperature management in various industrial applications. This controller operates over a wide temperature range of -40 to 248 degrees Fahrenheit, making it suitable for diverse environments. It features four single pole double throw (SPDT) relays that allow for flexible control of heating and cooling systems.

• Wide temperature range of -40 to 248 degrees Fahrenheit
• Includes four SPDT relay outputs
• NEMA 4X enclosure for protection against moisture and dust

Product Highlights

The intuitive user interface and advanced microprocessor technology ensure accurate temperature control and straightforward operation. The controller also features a digital display for clear temperature readings, allowing easy adjustments and monitoring. It is ideal for commercial and agricultural applications requiring dependable temperature regulation.

Product Information

Standard Information

• Brand: Honeywell
• MPN: T775B2024

Technical Specifications

• Temperature Range: -40 to 248 degrees Fahrenheit
• Relay Outputs: Four SPDT
• Sensor Inputs: Two (one included)
• Bulb Size: 1/4 inch diameter x 2 inches long
• Voltage Rating: 24/120/240 VAC, 50/60 Hz
• Accuracy: +/- 1 degree at 77 degrees Fahrenheit
• Mounting: Horizontal/Vertical
• Enclosure Type: NEMA 4X
