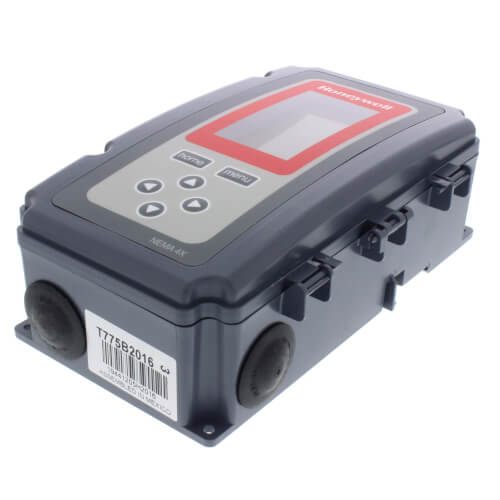

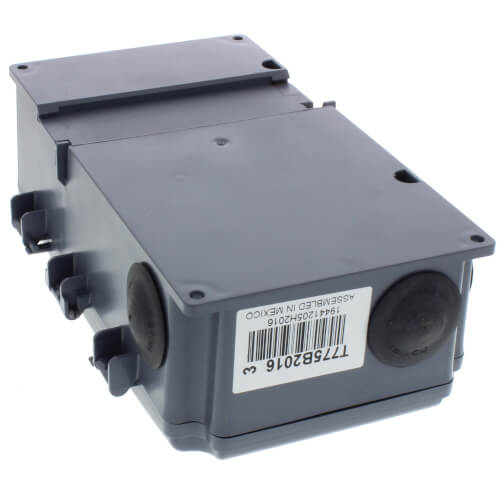

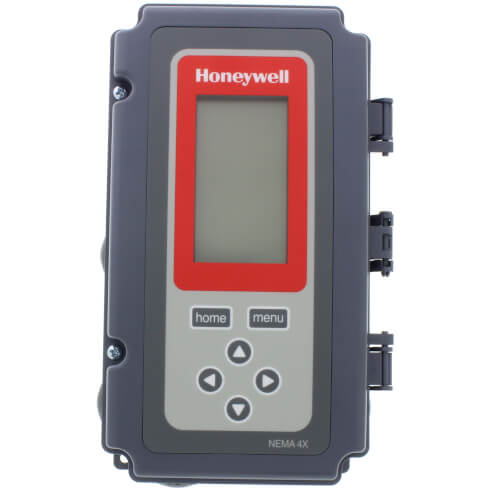

Honeywell T775B2016 Electronic Remote Controller 2 SPDT NEMA 4X

Product Description

The Honeywell T775B2016 Electronic Remote Controller is a versatile device designed for precise temperature control in various industrial settings. It features two SPDT relays, a NEMA 4X enclosure, one floating output, and includes one sensor.

• Graphical interface for easy programming
• Energy-saving time clock scheduler
• High and low limit controls for equipment protection

Product Highlights

The Honeywell T775B2016 offers remote temperature sensing and proportional outputs for diverse load types, making it suitable for commercial and agricultural applications.

Product Information

Standard Information

• Brand: Honeywell
• Model: T775B2016
• Category: Industrial Switches

Technical Specifications

• Relay Outputs: 2 SPDT
• Sensor Inputs: 2
• Voltage: 24 Vac or 120/240 Vac
• Frequency: 50/60 Hz
• Enclosure: NEMA 4X
• Setpoint Temperature Range: -40 F to 248 F
• Accuracy: ±1 F at 77 F
• Dimensions: 8.15625 in. H x 4.40625 in. W x 2.9375 in. D
• Contact Ratings: 24 Vac: 10.0 A resistive, 120 Vac: 1/2 hp, 9.8 AFL, 125 VA, 240 Vac: 1/2 hp, 4.9 AFL, 125 VA
