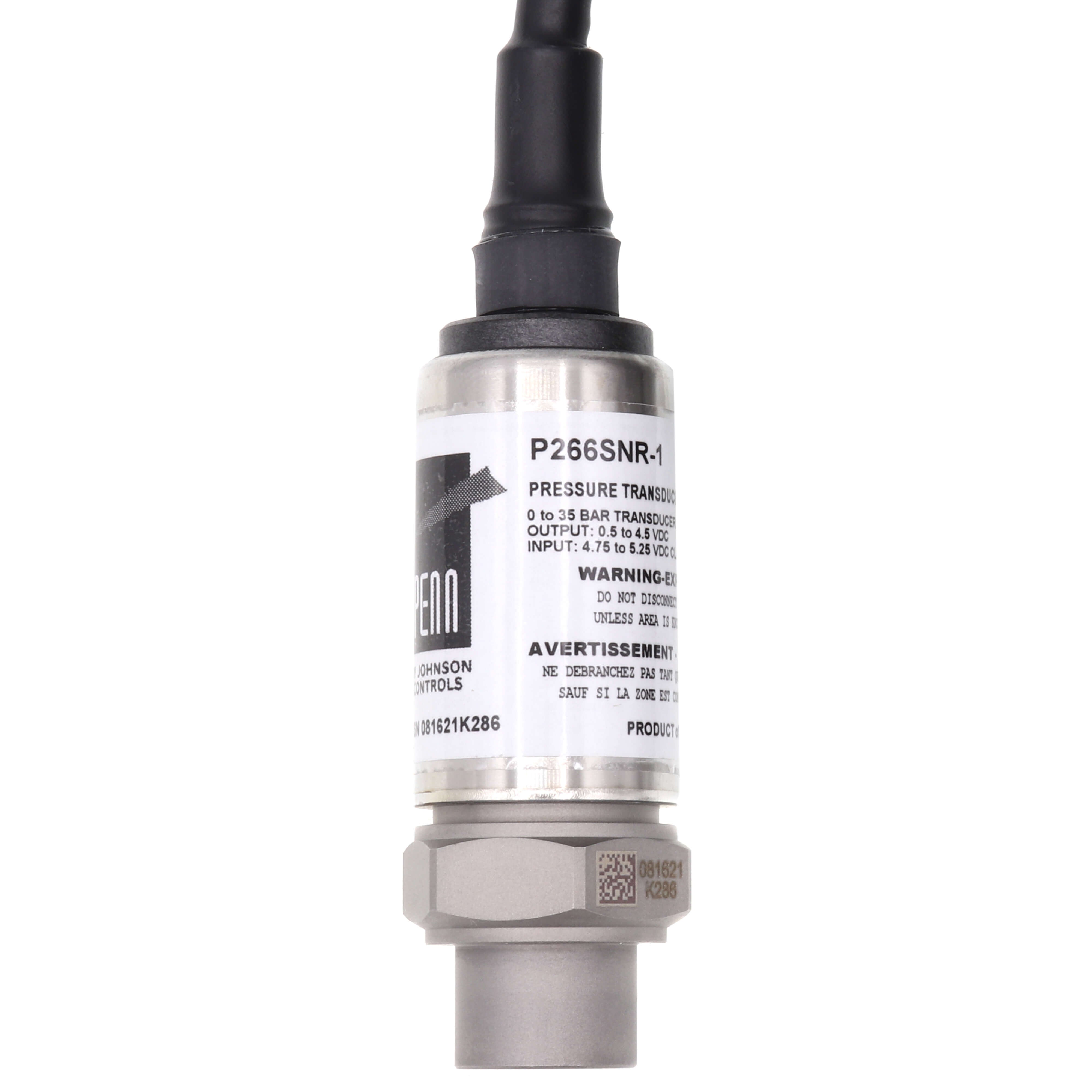

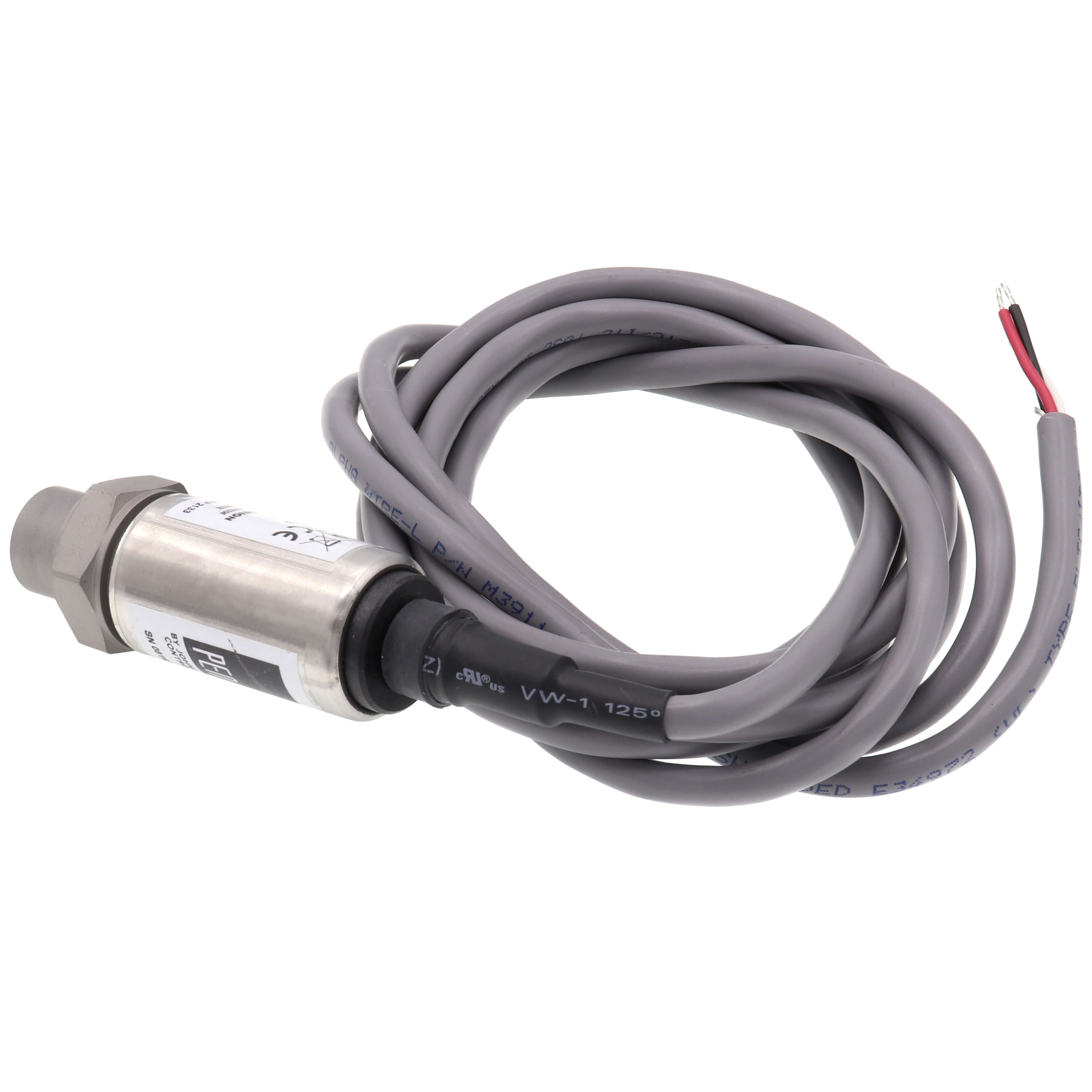

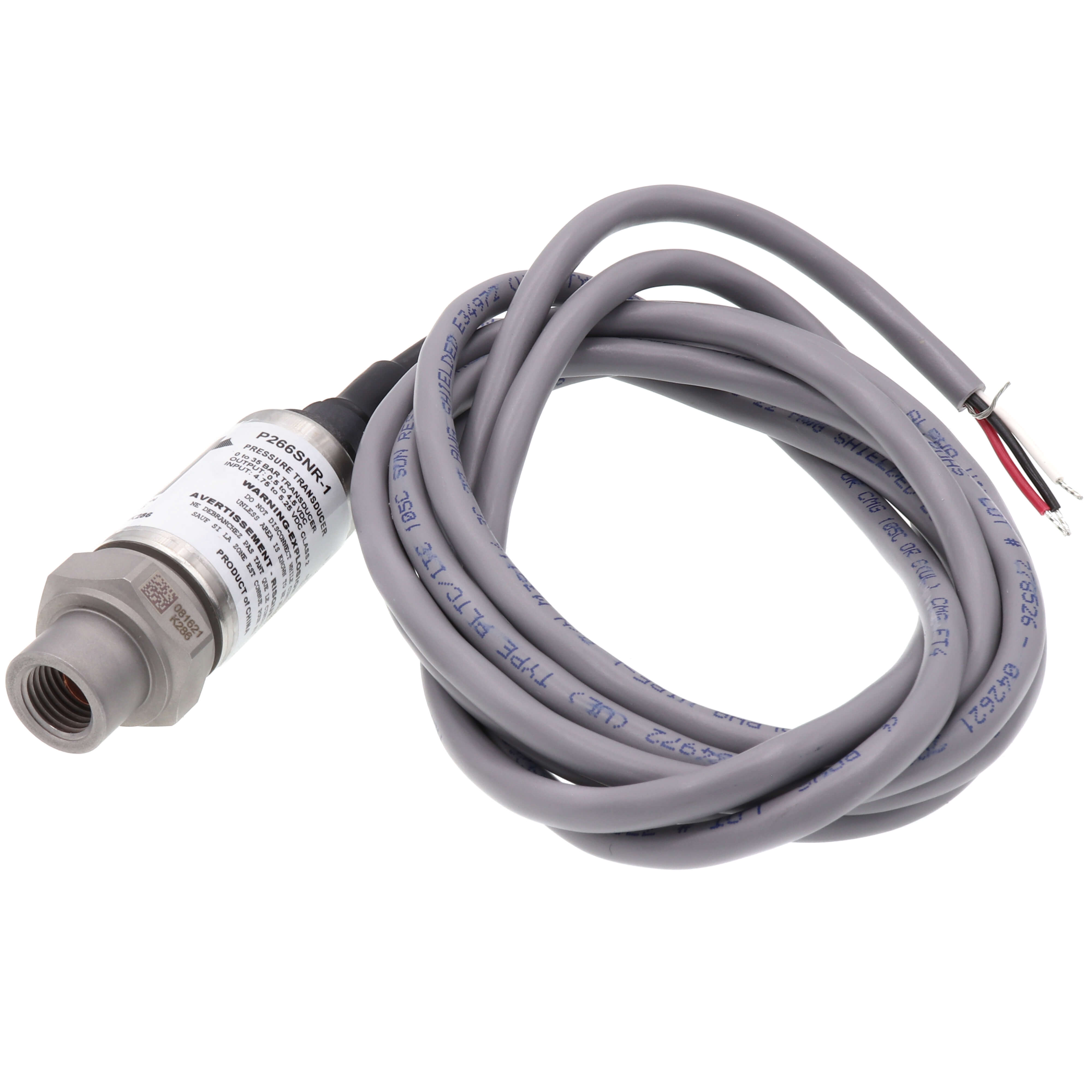

Johnson Controls P266SNR-1C Electronic Pressure Transducer 0 to 508 psi

Product Description

The Johnson Controls P266SNR-1C is an electronic pressure transducer that measures pressure from zero to five hundred eight psi. This device is ideal for commercial HVAC applications and can connect to various systems using a quarter-inch SAE fitting. The P266SNR-1C is designed for durability and reliability, making it suitable for demanding environments.

• Pressure range: 0 to 508 psi
• Stainless steel remote-mount pressure transducer
• NEMA 3R enclosure

Product Highlights

This pressure transducer provides a wide adjustable pressure throttling range and supports optional low-speed capacitor mode, enhancing system efficiency.

Product Information

Standard Information

• Brand: Johnson Controls
• Product Type: Transducer

Technical Specifications

• MPN: P266SNR-1C
• Pressure Range: 0 to 508 psi (0 to 35 bar)
• Connection: 1/4 SAE female flare
• Cable Length: 2 meters (6.6 feet)
• Weight: 0.35 lbs
• Dimensions: 3.2 inches depth, 5.7 inches width, 1.8 inches height
• Applications: Computer room air conditioning, commercial refrigeration, commercial air conditioning
