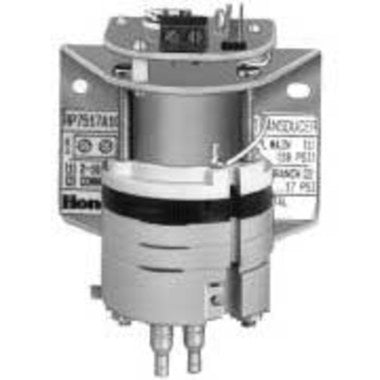

Honeywell RP7517A1017 Electronic Pneumatic Transducer 0-18 Psi Panel Mount Replacement RP7517A1017

Product Description

The Honeywell RP7517A1017 Electronic Pneumatic Transducer is engineered for optimal performance in electronic-pneumatic control systems. This model seamlessly converts electric output signals into proportional pneumatic outputs without the need for an internal power supply.

• Efficient conversion from 0 to 18 psi with a standard output of 3-15 psi.
• Compact design simplifies panel mounting and installation with 2-wire connection.
• Equipped with screw terminals and a 30-inch lead wire for straightforward setup.

Product Highlights

Designed primarily for HVAC systems, fluid control, and process automation, it ensures precise management of complex systems.

Product Information

Standard Information

• Application: Electric to Pneumatic Transducer
• Connections: Dual barb-fittings for 1/4 in. O.D.

Technical Specifications

• Operating Temperature: Up to 131 F
• Humidity Range: 5 to 95% RH
• Input Signal: 2 to 10 Vdc
• Pressure Range: 0 to 18 psi
• Electrical Connections: Screw terminals, 14 to 22 gauge wire
