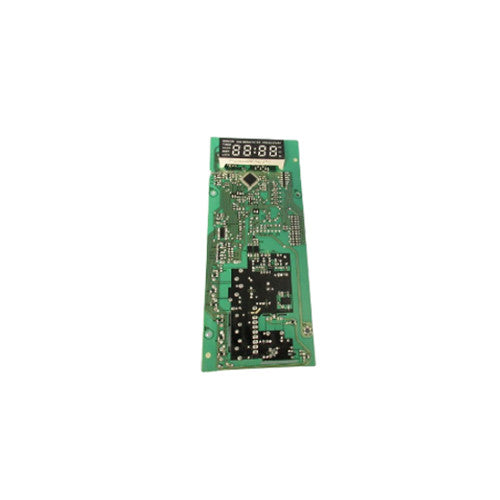

Electrolux 5304533649 Control Board Assembly

Product Description

The ELECTROLUX 5304533649 is a control board assembly with integrated display interface, designed for use in Electrolux appliances requiring electronic control and user interface functions. This board manages the operational logic of the appliance, interpreting user inputs from the display and translating them into system commands. It serves as the primary electronic control component and is typically installed by qualified appliance technicians during diagnostic replacement procedures. The board combines control circuitry and display interface functionality into a single assembly, streamlining replacement and reducing the number of individual components required for a repair.

This control board assembly is suited for residential appliance applications where the original control board or display interface has failed, is damaged, or is producing fault codes that cannot be resolved through reset or calibration. It is installed in place of a defective OEM board and restores full electronic control and display functionality to the unit. Technicians performing appliance service in residential settings will encounter this part during control-related diagnostic repairs.

Key Features

• Integrated display interface and control board in a single assembly
• OEM-style replacement for restoring electronic control functions
• Direct drop-in fit for compatible Electrolux appliances
• Manages user input processing and operational command logic
• Reduces repair complexity by combining control and display interface into one unit

Compatibility

Designed as an OEM-style replacement control board assembly for compatible Electrolux appliances requiring electronic control and display interface components.

Installation Notes

Installation should be performed by a qualified appliance service technician. Disconnect power to the appliance at the circuit breaker or by unplugging the unit before beginning any control board replacement. Handle the board carefully to avoid damage to connectors, solder joints, or surface-mounted components. Follow all applicable local electrical codes and manufacturer service documentation during installation.

Technical Specifications

• Assembly Type: Control Board with Display Interface

Standard Information

• Brand: ELECTROLUX
• Manufacturer Part Number: 5304533649
