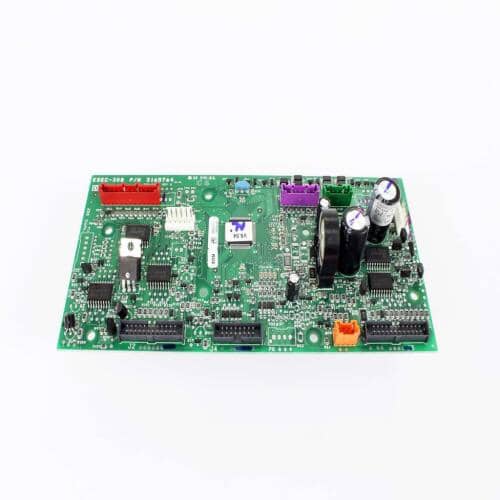

Electrolux 316576430 Oven Relay Control Board

Product Description

The ELECTROLUX 316576430 is an oven relay control board designed to manage the relay switching functions that regulate heating elements in electric ovens. This board serves as the electrical interface between the oven control and the bake and broil elements, directing power on and off based on temperature demand signals. It is a direct OEM-style replacement intended to restore original oven operation after relay failure or board burnout. Licensed appliance technicians and qualified service professionals install this part during diagnostic repair of electric range and wall oven systems.

This relay control board is suited for electric oven applications where the existing board has failed due to relay burnout, carbon scoring, or component fatigue. It is appropriate for residential electric range and built-in wall oven service calls where the oven fails to heat, heats inconsistently, or trips protective circuits tied to relay function. Verify the part number against the appliance data plate before installation.

Key Features

• OEM-style replacement for oven relay control functions
• Manages power switching to bake and broil heating elements
• Direct-fit design intended to restore original oven performance
• Manufactured to match original board form and electrical specifications

Compatibility

Designed as an OEM-style replacement relay control board for compatible ELECTROLUX electric range and wall oven models. Confirm fitment using the appliance model and serial number before ordering.

Installation Notes

Installation should be performed by a licensed appliance technician or qualified service professional. Disconnect power at the breaker or unplug the appliance before removing any panels or handling the control board. Discharge any stored energy in the system and avoid contact with relay terminals during handling. Follow all applicable local electrical codes when reconnecting wiring harnesses and restoring power.

Technical Specifications

• Part Type: Oven Relay Control Board

Standard Information

• Brand: ELECTROLUX
• Manufacturer Part Number: 316576430
