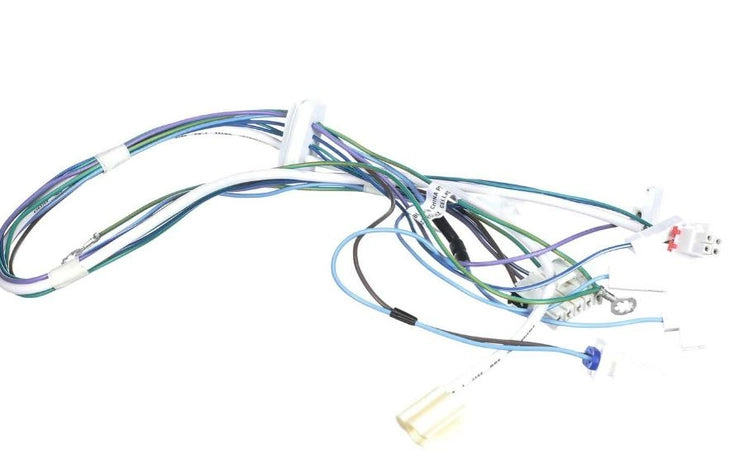

Electrolux 140134075039 Air Handler Wiring Harness

Product Description

The ELECTROLUX 140134075039 is a replacement wiring harness for air handler units. A wiring harness bundles and routes the electrical conductors that connect control boards, motors, sensors, and other components inside the air handler cabinet. When insulation degrades, connectors corrode, or individual conductors fail, the harness must be replaced to restore proper electrical communication between components. This OEM-style replacement is manufactured to original equipment specifications, ensuring correct connector fit, conductor gauge, and circuit routing for a reliable repair.

This wiring harness is intended for use in residential air handler systems where the original harness has been damaged by heat, vibration, rodents, or age-related wear. It is installed by HVAC technicians performing electrical diagnostics and component-level repairs on Electrolux air handler units. The harness restores the internal wiring infrastructure needed for the unit to operate correctly across all its functional circuits.

Key Features

• OEM-specification replacement maintains correct conductor gauge and connector pinout
• Restores electrical continuity between air handler control boards, motors, and sensors
• Direct-fit design eliminates modification during installation
• Manufactured to meet original equipment standards for long-term reliability

Compatibility

Designed as an OEM-style replacement wiring harness for compatible Electrolux residential air handler units. Confirm model number compatibility before ordering.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the air handler at the disconnect switch and breaker before accessing internal wiring. Document existing harness routing and connector positions before removal to ensure correct reinstallation. Follow all applicable NEC requirements for low-voltage and line-voltage wiring within HVAC equipment.

Technical Specifications

• Part Type: Wiring Harness
• Application: Air Handler

Standard Information

• Brand: ELECTROLUX
• Manufacturer Part Number: 140134075039
