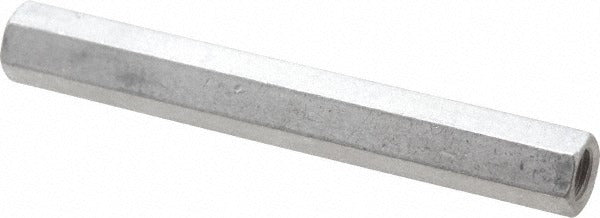

Electro Hardware P625M06F16-1032 Hex Standoff 10-32 2in

Product Description

The ELECTRO HARDWARE P625M06F16-1032 is a female hex circuit board standoff used to create fixed spacing between printed circuit boards and mounting surfaces or between stacked boards. Machined from aluminum with an anodized bright finish, it meets the QQ-A-225A Comp 2 material standard and is rated to material grade T-3. The standoff features a 10-32 female thread, measures 2 inches in overall length, and has a 1/4-inch hex body across flats. It is installed by electronics technicians, panel builders, and field service technicians working on control boards in HVAC equipment, electrical enclosures, and industrial panels.

This standoff is suited for applications requiring rigid, non-conductive spacing in circuit board assemblies. The hex body allows wrench installation for consistent torque without slipping. Typical use cases include mounting control boards inside HVAC air handlers, furnace cabinets, variable frequency drive enclosures, and similar equipment where PCB-to-chassis or PCB-to-PCB separation must be maintained under vibration or thermal cycling conditions.

Key Features

• 10-32 female thread for secure fastener engagement on both ends
• 2-inch overall body length provides consistent board separation
• 1/4-inch hex width across flats allows standard wrench installation
• Aluminum construction with anodized bright finish for corrosion resistance
• Meets QQ-A-225A Comp 2 fastener standard, material grade T-3
• Length tolerance held to plus or minus 0.005 inches for precision fitment

Compatibility

Designed as an OEM-style replacement or new-installation hex standoff for circuit board assemblies requiring a 10-32 female thread and 2-inch overall length in inch-measurement systems.

Installation Notes

Installation is typically performed by electronics technicians or licensed HVAC or electrical technicians during control board service or panel assembly. Power down and de-energize the equipment fully before handling any circuit board hardware. Use a correctly sized hex wrench or nut driver on the 1/4-inch flats to avoid rounding the body. Follow applicable NEC or equipment manufacturer guidelines for mounting clearances and grounding when installing standoffs in live electrical enclosures.
