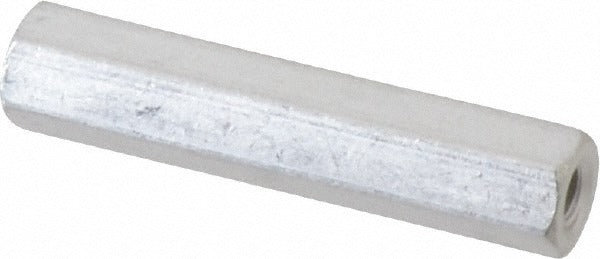

Electro Hardware P577M06F16-632 Female Hex Standoff 6-32

Product Description

The ELECTRO HARDWARE P577M06F16-632 is a female hex circuit board standoff designed to create fixed spacing between PCBs, panels, and chassis surfaces in electronic assemblies. Machined from aluminum alloy to material grade T-3 with an anodized bright finish, this standoff accepts a 6-32 female thread on both ends and measures 1.25 inches overall length with a 0.25-inch width across flats on the hex body. The hex profile allows installation and removal with standard nut drivers or hex wrenches. It meets QQ-A-225A Comp 2 fastener standards. Electricians, electronics technicians, and panel builders working on control boards, HVAC control assemblies, or industrial enclosures will find this a reliable OEM-grade hardware component.

This standoff is suited for residential and commercial applications where circuit boards require secure, evenly spaced mounting within an enclosure or chassis. Common install scenarios include HVAC control board mounting, industrial panel assemblies, electrical enclosure builds, and electronics repair where original standoffs must be replaced to exact OEM dimensions. The 6-32 thread size is a standard designation widely used across control board hardware in trade equipment. Length tolerance is held to plus or minus 0.005 inches, making this appropriate for precision PCB stacking applications.

Key Features

• Female 6-32 thread accepts machine screws on both ends for board-to-board or board-to-chassis stacking
• 1.25-inch overall length with tight length tolerance of plus or minus 0.005 inches
• Hex body profile at 0.25-inch width across flats for tool-driven installation
• Aluminum construction with anodized bright finish for corrosion resistance in enclosure environments
• Meets QQ-A-225A Comp 2 fastener standard
• Material grade T-3 aluminum for consistent machining quality

Compatibility

Designed as an OEM-style replacement or new-installation standoff for circuit board mounting applications using 6-32 threaded fasteners in electronic enclosures and control panel assemblies.

Installation Notes

Installation is typically performed by licensed electricians or electronics technicians during panel assembly or control board replacement. Always de-energize the equipment and discharge any capacitors before working inside electrical enclosures. A standard nut driver or hex wrench sized to 0.25 inches across flats is required for proper torque. Follow all applicable NEC guidelines for enclosure work and equipment manufacturer instructions for PCB mounting procedures.
