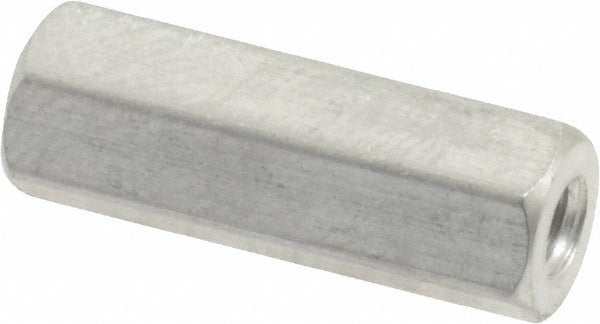

Electro Hardware P545M06F16-632 Hex Standoff 6-32 3/4in

Product Description

The ELECTRO HARDWARE P545M06F16-632 is a female hex circuit board standoff designed to space and mount printed circuit boards within electrical enclosures, control panels, and electronic assemblies. Machined from aluminum alloy to material grade T-3 with a bright anodized finish per QQ-A-225A Comp 2, this standoff accepts a 6-32 threaded fastener and provides a 3/4-inch overall length with a 1/4-inch width across the hex flats. It is installed by electricians, electronics technicians, and HVAC control board service professionals wherever secure, insulated board-to-chassis spacing is required.

This standoff is suited for residential and light commercial control board assemblies, including HVAC unit control panels, relay boards, and custom electrical enclosures where repeatable board spacing and a secure threaded connection point are needed. The hex body allows installation and removal with standard nut drivers or hex wrenches without slipping or marring the finish. The anodized aluminum construction resists corrosion in moderate-duty environments. Minimum order quantity is 10 pieces; package quantity is 1.

Key Features

• Female 6-32 threaded receiving end for standard machine screws
• 3/4-inch overall length provides consistent board-to-chassis standoff height
• Hex body profile - 1/4-inch width across flats - allows positive torque with standard nut drivers
• Bright anodized aluminum finish per QQ-A-225A Comp 2 for corrosion resistance
• Material grade T-3 aluminum for lightweight, non-magnetic installation
• Length tolerance of -0.005 to +0.005 inches for precise stack-up in multi-board assemblies

Compatibility

Designed as an OEM-style replacement or new-installation standoff for any circuit board assembly using 6-32 threaded fasteners requiring a 3/4-inch standoff height.

Installation Notes

Installation is typically performed by licensed electricians or electronics technicians. De-energize and lock out the equipment before servicing any control board or panel. Use a properly sized nut driver matched to the 1/4-inch hex flats to seat the standoff without over-torquing the aluminum threads. Follow applicable NEC guidelines for panel and control board assembly work.
