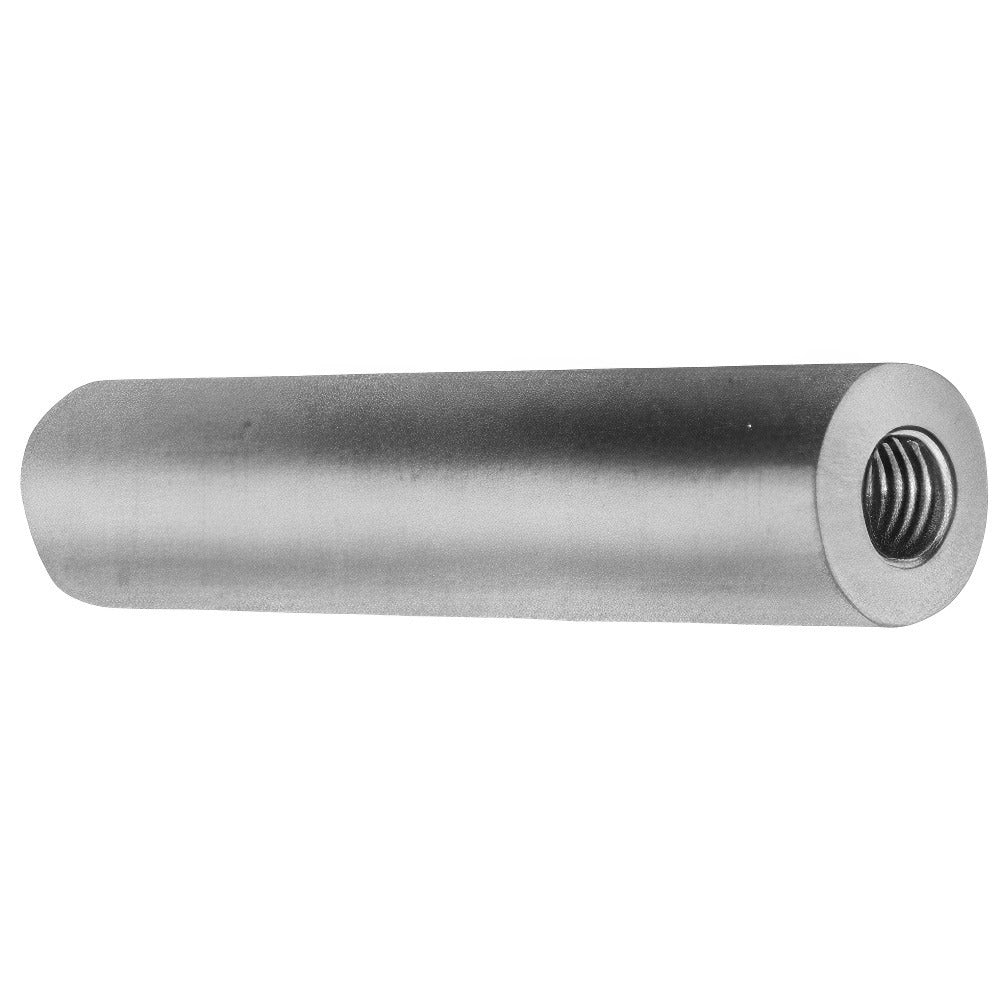

Electro Hardware P537M10F21-832 Female Standoff 8-32

Product Description

The ELECTRO HARDWARE P537M10F21-832 is a round female standoff designed to create fixed spacing between panels, circuit boards, and structural components in mechanical and electrical assemblies. Machined from Grade 2 steel with a zinc-plated finish meeting ASTM B633 Type 1 and QQ-S-633 standards, this standoff delivers reliable corrosion resistance in typical indoor service environments. It measures 0.625 inches overall length with a 0.25 inch outside diameter and features full female threading at an 8-32 thread size with a 1 inch thread depth. Licensed electricians, panel builders, and mechanical assemblers install this type of hardware in control panels, enclosures, and equipment chassis.

This standoff is suited for use in light-duty electrical and mechanical assemblies where consistent panel separation and a secure threaded connection are required. The inch-system sizing and standard 8-32 thread make it compatible with common machine screws used across control panel fabrication, PCB mounting, and sheet metal assembly work. Its compact 0.625 inch body length fits tight-clearance applications where space between mating surfaces is limited.

Key Features

• 8-32 female thread, fully threaded through 1 inch thread depth for secure fastener engagement
• 0.625 inch overall length with 0.25 inch outside diameter for compact, tight-clearance installations
• Grade 2 steel construction provides reliable mechanical strength for standard assembly loads
• Zinc-plated finish meets ASTM B633 Type 1 and QQ-S-633 for corrosion resistance in indoor environments
• Round body shape with inch-system sizing for straightforward integration into standard hardware layouts
• Length tolerance held to plus or minus 0.005 inches for consistent stack-up in precision assemblies

Compatibility

Designed as a standard-fit replacement or new-install female standoff for mechanical and electrical assemblies using 8-32 inch-thread machine screws.

Installation Notes

De-energize and lock out all electrical panels or equipment before installing or replacing standoffs in live enclosures. Use appropriately sized hex drivers or sockets to avoid deforming the standoff body during installation. Torque mating machine screws to the fastener manufacturer's recommended values for 8-32 hardware - do not over-torque, as steel threads can strip under excessive load. Panel builders should verify thread engagement depth against the mating screw length before finalizing the assembly.
