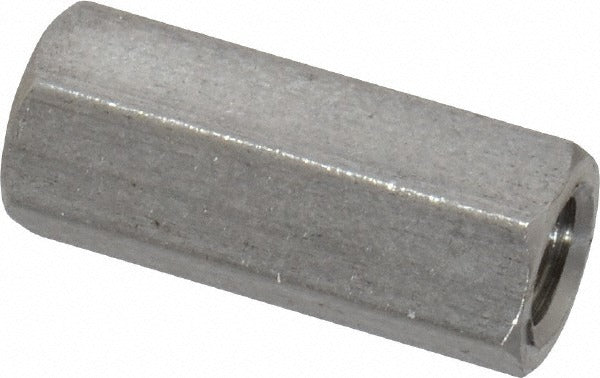

Electro Hardware MP1029M09F16M4 Female Hex Standoff M4x0.7

Product Description

The ELECTRO HARDWARE MP1029M09F16M4 is a female hex circuit board standoff designed to create fixed spacing between PCBs or between a PCB and a mounting surface. The fastener features an M4 x 0.7 metric thread, a fully threaded 15 mm thread depth, and a 6 mm hex body that accepts a standard wrench for secure, torque-controlled installation. Manufactured from grade 303 stainless steel with a plain, bright uncoated finish, it meets the QQ-S-763 material standard. This standoff is installed by electronics assemblers, field service technicians, and industrial maintenance professionals wherever vibration resistance and corrosion resistance are required in board-level hardware.

This standoff is suited for panel-mount and rack-mount electronic assemblies across industrial, commercial, and light electrical applications. The metric M4 x 0.7 thread size and 15 mm overall length make it a common fit in control panel PCB mounting, instrumentation housings, and similar enclosure assemblies where boards must be elevated and secured against a chassis or secondary board. The fully threaded body allows engagement along the full 15 mm length for maximum thread contact and holding strength.

Key Features

• M4 x 0.7 metric female thread, fully threaded through 15 mm depth
• Grade 303 stainless steel construction meets QQ-S-763 standard
• Hexagonal body at 6 mm width across flats for wrench-driven installation
• Plain, bright uncoated finish resists corrosion without additional coating
• Length tolerance of -0.13 mm to 0.13 mm for consistent stack height
• Metric system dimensioning for use in metric-designed assemblies

Compatibility

Designed as an OEM-style metric standoff for circuit board mounting applications requiring an M4 x 0.7 female thread and a 15 mm overall length in a hex body format.

Installation Notes

Installation is performed by electronics assemblers or qualified maintenance technicians. De-energize all boards and assemblies before working on PCB hardware. Use an appropriately sized wrench or hex driver on the 6 mm flats to seat the standoff without stripping the body. Follow the equipment manufacturer's assembly specifications for thread engagement and fastener seating requirements.
