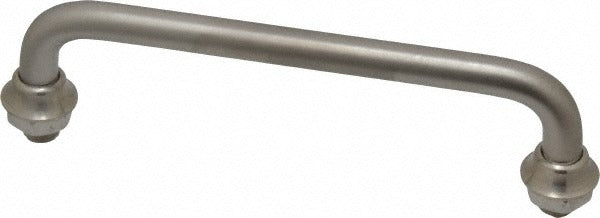

Electro Hardware C1657-9MH1.437 Stainless Steel Drawer Pull

Product Description

The ELECTRO HARDWARE C1657-9MH1.437 is a passivated stainless steel drawer pull designed for industrial and commercial enclosures, panels, and cabinetry. Cast from steel with a passivated finish, it resists corrosion and surface oxidation in demanding environments. The pull features a 5/16-18 external thread with a 0.5625-inch thread depth, a 0.3125-inch handle diameter, and a 4.25-inch center-to-center spacing. The passivated finish is well-suited for applications where surface contamination must be minimized, including food-grade, cleanroom, or marine-adjacent environments. Installation requires standard hardware tools and no special fastening equipment.

This drawer pull is used in light industrial, commercial, and professional enclosure applications where a threaded stud-mount pull is required. Typical installations include electrical enclosures, control panels, machine cabinets, and equipment housings. The 4.25-inch center-to-center dimension suits standard panel cutout patterns. It is installed by licensed electricians, panel fabricators, and mechanical technicians working on enclosure assembly and retrofit projects.

Key Features

• Passivated stainless steel finish resists corrosion and surface oxidation
• 5/16-18 external thread with 0.5625-inch thread depth for secure panel mounting
• 4.25-inch center-to-center spacing fits standard enclosure and cabinet layouts
• 0.3125-inch handle diameter for a firm grip in service and maintenance access
• 1.5-inch projection provides adequate clearance for gloved-hand operation
• Sold individually — minimum order quantity of 1

Compatibility

Designed as an OEM-style threaded drawer pull for industrial enclosures, control panels, and equipment cabinets requiring a 5/16-18 external thread mount with 4.25-inch center-to-center spacing.

Installation Notes

Installation is performed by panel fabricators, electricians, or mechanical technicians. Power down and de-energize any enclosure before installing or replacing pulls on live electrical panels. Secure the threaded studs with appropriate nuts or threaded inserts rated for the panel material. Follow applicable NEMA enclosure standards and local codes when servicing control panel hardware.
