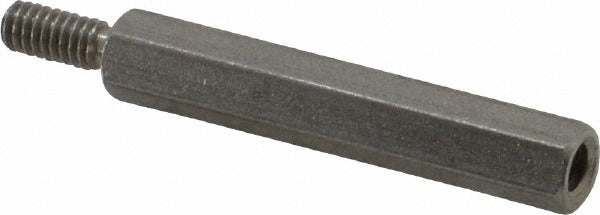

Electro Hardware 1467M09F16-832 Hex Standoff 8-32

Product Description

The ELECTRO HARDWARE 1467M09F16-832 is a male-female hex circuit board standoff designed to space and support printed circuit boards within electronic enclosures and control assemblies. It features an 8-32 threaded stud on the male end and an 8-32 threaded receptacle on the female end, allowing boards to be stacked or mounted to a chassis at a fixed, repeatable height. The standoff is machined from 18-8 and Grade 303 stainless steel with an anodized finish, meeting the QQ-S-763 fastener standard. Overall length is 1.875 inches, with a body length of 1.5 inches and a 0.25-inch width across flats. HVAC technicians, electricians, and control-panel assemblers use this hardware when building or servicing control board assemblies.

This standoff is used in residential and light commercial electronic control assemblies, PCB mounting applications, and enclosure builds where stainless steel corrosion resistance and a precise standoff height are required. The hex body profile accepts a standard hex driver or nutdriver for clean, torque-consistent installation without slippage. It is well suited for service environments where control boards must be removed and reinstalled repeatedly without damaging the board mounting holes.

Key Features

• Male-female configuration allows board stacking and chassis mounting in a single fastener
• 8-32 thread on both male stud and female receptacle for standard PCB hardware compatibility
• 18-8 and Grade 303 stainless steel construction with anodized finish for corrosion resistance
• Hex body profile at 0.25 inches across flats accepts standard nutdrivers and hex drivers
• Meets QQ-S-763 fastener standard
• Length tolerance held to plus or minus 0.005 inches for consistent board spacing

Compatibility

Designed as an OEM-style replacement or new-installation standoff for circuit board assemblies using 8-32 threaded hardware in standard hex standoff configurations.

Installation Notes

Installation is performed by electricians, electronics technicians, and HVAC control-panel assemblers. De-energize all circuits and discharge any capacitors before handling or mounting circuit boards. Use a properly sized nutdriver or hex driver matched to the 0.25-inch across-flats hex body to avoid rounding the standoff. Follow applicable NEC and equipment manufacturer guidelines for control-panel assembly and board mounting clearances.
