Electro Hardware 1459M09F16-1032 Hex Standoff 10-32

Product Description

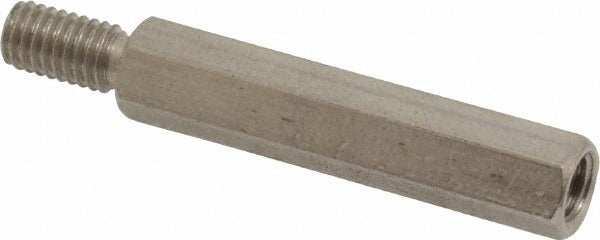

The ELECTRO HARDWARE 1459M09F16-1032 is a male-female hex circuit board standoff designed to space and secure printed circuit boards within electronic assemblies and enclosures. Machined from 18-8 and Grade 303 stainless steel with an anodized finish, this standoff meets the QQ-S-763 fastener standard. The hex body measures 0.25 inches across flats with an overall length of 1.625 inches and a body length of 1.25 inches. The male thread length is 0.375 inches and the female thread depth is 0.5 inches, both at a 10-32 thread size. Length tolerance is held to plus or minus 0.005 inches. This hardware is typically installed by electronics technicians, electrical contractors, and control panel assemblers working on industrial or commercial equipment.

This standoff is suited for residential and commercial control panel builds, HVAC equipment electronics, industrial enclosures, and any application requiring rigid PCB mounting with pass-through threaded connections. The male end threads into a mating standoff or panel hole, while the female end accepts a machine screw to stack or secure an additional board. Compatible with standard 10-32 threaded hardware and panel layouts calling for 0.25-inch hex body standoffs.

Key Features

• 10-32 male-female thread configuration for stacked or panel-mounted PCB assemblies
• 18-8 and Grade 303 stainless steel construction for corrosion resistance
• Anodized finish for surface protection
• Hex body shape allows installation and removal with standard hex drivers or wrenches
• Meets QQ-S-763 fastener standard
• Tight length tolerance of plus or minus 0.005 inches for precise board spacing

Compatibility

Designed as an OEM-style replacement or new-installation standoff for assemblies using 10-32 threaded male-female hex standoffs with a 0.25-inch width across flats.

Installation Notes

Install and remove using a hex driver or open-end wrench sized for the 0.25-inch across-flats body to avoid rounding the hex. De-energize all circuits and discharge any capacitors before handling circuit boards or installing standoffs in live equipment. Ensure mating threads are clean and free of debris before fastening. Follow applicable NEC requirements when installing standoffs inside electrical enclosures or control panels.
