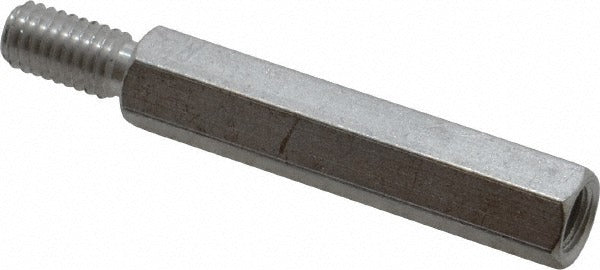

Electro Hardware 1459M06F16-1032 Hex Standoff 10-32

Product Description

The ELECTRO HARDWARE 1459M06F16-1032 is an aluminum male-female hex circuit board standoff designed to space and secure printed circuit boards within enclosures, control panels, and electronic assemblies. The standoff features a 10-32 thread size with a male thread on one end and a female threaded bore on the other, allowing boards to be stacked or mounted at a fixed distance from a chassis or sub-panel. The hex body measures 0.25 inches across the flats for wrench engagement, and the overall length is 1.625 inches. Finished with an anodized coating and manufactured to QQ-A-225A Comp 2 standards, this standoff is suited for environments where corrosion resistance and dimensional consistency are required.

This standoff is used in PCB mounting applications across industrial controls, HVAC control boards, electrical panel assemblies, and similar electronic equipment. The male-female configuration allows for modular stacking of multiple boards or secure single-board mounting to a chassis surface. The 1.625-inch overall length and 1.25-inch body length make it appropriate for applications requiring moderate board clearance. Installers working on control board layouts, enclosure builds, or field replacements will find this standoff suitable for standard 10-32 threaded mounting holes.

Key Features

• Male-female thread configuration enables board stacking or chassis mounting with a single fastener
• 10-32 thread size with a 0.375-inch thread length on the male end and 0.5-inch thread depth on the female bore
• Hex body shape with 0.25-inch width across flats allows standard wrench installation
• Overall length of 1.625 inches with a 1.25-inch body length for consistent board standoff clearance
• Aluminum construction with anodized finish resists corrosion and provides electrical isolation at the surface
• Manufactured to QQ-A-225A Comp 2 fastener standard for dimensional and material compliance

Compatibility

Designed for use with 10-32 threaded PCB mounting applications in electronic enclosures, control panels, and circuit board assemblies requiring a male-female hex standoff configuration.

Installation Notes

Installation is performed by electronics technicians, electrical panel builders, or field service technicians familiar with PCB mounting hardware. Always de-energize and discharge any circuits before working on or near mounted boards. Use an appropriately sized wrench or hex driver on the 0.25-inch flats to avoid stripping the hex body. Do not overtighten, as aluminum threads can be damaged by excessive torque.
