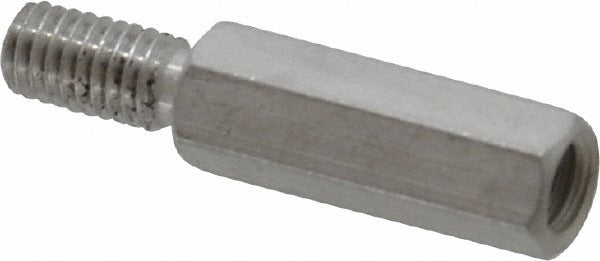

Electro Hardware 1443M06F16-1032 Hex Standoff 10-32

Product Description

The ELECTRO HARDWARE 1443M06F16-1032 is a male-female hex circuit board standoff designed to create precise spacing between stacked PCBs and mounting surfaces in electronic assemblies. Machined from aluminum alloy (Material Grade T-3) with an anodized finish, this standoff provides corrosion resistance and electrical isolation in a lightweight hex-body profile. The standoff measures 1.125 inches overall length with a 1/4-inch width across flats, a 3/4-inch body length, and accepts a 10-32 thread on both the male pin and female threaded bore. It is used wherever repeatable board-to-board or board-to-chassis standoff spacing is required in control panels, circuit boards, and enclosures.

This standoff is suited for installation in residential and commercial control boards, HVAC control panels, electrical enclosures, and general electronic assemblies requiring rigid, non-conductive spacing hardware. The hex body allows for tool-driven installation with a standard hex wrench or nut driver, making it appropriate for production assembly lines and field service applications where consistent torque and alignment are critical. It conforms to QQ-A-225A Comp 2 standards, making it appropriate for applications with defined material traceability requirements.

Key Features

• Male-female thread configuration accepts 10-32 fasteners for stackable PCB mounting
• Hex body profile (1/4 inch across flats) enables tool-driven installation and removal
• Aluminum construction with anodized finish for corrosion resistance and durability
• Overall length of 1.125 inches with tight length tolerance of plus or minus 0.005 inches
• Meets QQ-A-225A Comp 2 fastener standard for material grade traceability
• Lightweight design reduces added mass in sensitive electronic assemblies

Compatibility

Designed as a standard 10-32 male-female hex standoff for use in circuit board assemblies, electronic enclosures, and control panel applications requiring aluminum hex standoff hardware.

Installation Notes

Installation is typically performed by electronics assembly technicians or electricians working on control panel builds. Power down and de-energize all circuits before servicing any board or panel containing these standoffs. A nut driver or hex wrench sized for 1/4-inch across-flats hex hardware is recommended for proper engagement. Do not overtighten, as aluminum threads can strip or gall if excessive torque is applied without lubrication or thread-locking compound.
