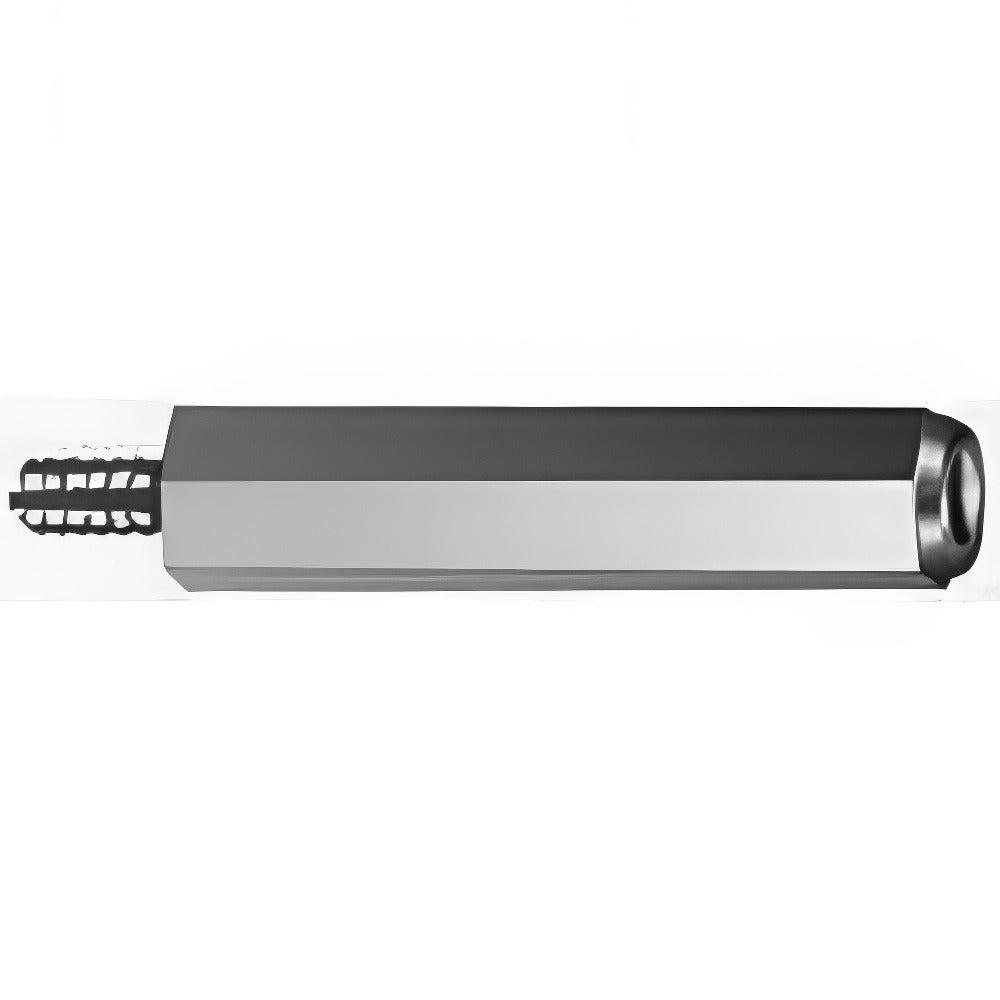

Electro Hardware 1439M12F21-1032 Hex Standoff 10-32 1in

Product Description

The ELECTRO HARDWARE 1439M12F21-1032 is a male-female hex circuit board standoff designed to create fixed spacing between printed circuit boards or between a board and a chassis panel. Machined from Grade 2 steel with a zinc-plated finish meeting ASTM B633 Type 1 and QQ-S-633 standards, this fastener provides corrosion resistance suitable for electronics enclosures and control panels. The standoff measures 1 inch in overall length with a 5/8-inch hex body, a 1/4-inch width across flats, and a 10-32 thread on both the male and female ends. Electronics assemblers, control panel builders, and HVAC equipment technicians commonly install these fasteners during board-level service and assembly work.

This standoff is used in residential and light commercial control panel assemblies, PCB stack configurations, and enclosure mounting applications where consistent board-to-board or board-to-chassis clearance is required. The 10-32 unified fine thread makes it compatible with standard threaded inserts and machine screw hardware widely used in electronics and electrical enclosure construction. It is appropriate wherever an inch-series hex standoff with male-female threading is needed to secure and elevate circuit boards within a housing.

Key Features

• Male-female thread configuration allows stacking or panel-mount installation in a single fastener
• 10-32 unified fine thread on both ends for compatibility with standard PCB hardware
• Grade 2 steel construction with zinc-plated finish per ASTM B633 Type 1 and QQ-S-633
• Hex body shape accepts standard hex drivers and wrenches for torque-controlled installation
• 1/4-inch width across flats suits tight board layouts with limited wrench clearance
• 1 inch overall length with 5/8-inch body and 3/8-inch thread length for predictable standoff height

Compatibility

Designed as an OEM-style replacement or assembly component for circuit board standoff applications using 10-32 inch-series threaded fastener hardware in electronics enclosures and control panels.

Installation Notes

Installation is performed by electronics assemblers, electricians, or HVAC technicians during control board service or panel assembly. De-energize all equipment and discharge any stored energy before handling circuit boards or installing standoffs. Use an appropriately sized hex driver or nut driver matching the 1/4-inch across-flats dimension to seat the fastener without over-stressing the board. Avoid cross-threading the male end into mating inserts, as 10-32 fine threads are susceptible to damage if started at an angle.
