Electro Hardware 1435M09F16-1032 Hex Standoff 10-32 7/8 in

Product Description

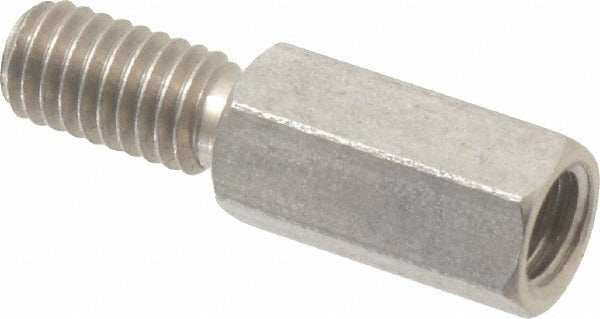

The ELECTRO HARDWARE 1435M09F16-1032 is a male-female hex circuit board standoff designed to create precise separation and alignment between PCBs, chassis panels, and mounting surfaces. Machined from 18-8 and Grade 303 stainless steel with an anodized finish, this standoff meets the QQ-S-763 fastener standard. It measures 0.875 inches in overall length with a 0.25-inch hex width across flats, offering a compact, sturdy footprint for tight board assemblies. The male thread projects 0.375 inches and accepts mating hardware on the female end at a thread depth of 0.5 inches, both in the 10-32 thread specification. Electronics assemblers, electrical panel builders, and control board technicians install this type of hardware in production and field-service applications.

This standoff is suited for use in residential and commercial control board assemblies, industrial enclosures, HVAC control panels, and electrical equipment where stainless steel corrosion resistance and dimensional consistency are required. The hex body shape allows wrench engagement for installation in torque-sensitive or confined layouts. The 18-8 and Grade 303 stainless steel construction makes it appropriate for environments with moderate moisture exposure. Typical use cases include spacing PCBs off mounting plates and creating threaded standoff columns between stacked boards.

Key Features

• Male-female configuration allows stacking and panel-mount spacing in a single fastener
• 10-32 thread on both the male stud and female bore for standard mating hardware compatibility
• Hex body profile enables wrench or socket installation without slippage
• 18-8 and Grade 303 stainless steel construction resists corrosion in damp or humid service environments
• Anodized finish provides surface protection and consistent appearance
• Meets QQ-S-763 fastener standard for dimensional and material traceability

Compatibility

Designed as an OEM-style replacement or new-installation standoff for circuit board mounting applications requiring a 10-32 thread, 0.875-inch overall length, and 0.25-inch hex width across flats.

Installation Notes

Install and remove using an appropriately sized wrench or socket on the hex body; avoid pliers that can mar the finish or deform the hex flats. De-energize all circuits and discharge any capacitors in the board assembly before removing or installing standoffs. Follow applicable electrical codes and equipment manufacturer torque guidance for fastener hardware in control panel assemblies. Inspect threads on both the male stud and mating female bore for damage before final assembly.
