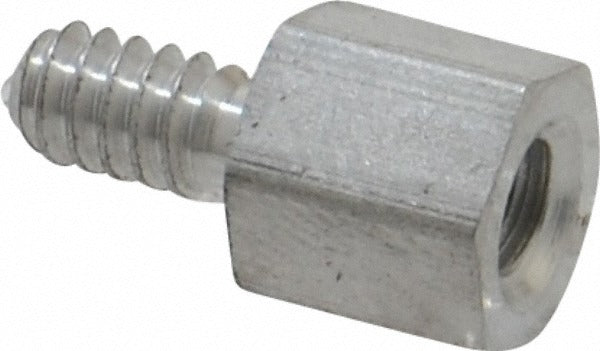

Electro Hardware 1427M06F16-632 Hex Standoff 6-32 1/2 in

Product Description

The ELECTRO HARDWARE 1427M06F16-632 is a male-female hex circuit board standoff designed to space and secure printed circuit boards within electronic enclosures and control assemblies. Machined from aluminum alloy to material grade T-3 with an anodized finish, this standoff meets the QQ-A-225A Comp 2 fastener standard. It accepts a 6-32 thread size, measures 0.5 inches in overall length, and features a 0.25-inch hex body width across flats. The hex profile allows installation with standard nut drivers or wrenches, making it a common hardware choice for HVAC control boards, electrical panels, and other electronic assemblies requiring precise board-to-surface spacing.

This standoff is suited for residential and light commercial electronics assembly and service work where circuit boards must be mounted at a fixed standoff distance from a chassis or enclosure wall. It is appropriate for control board replacement and retrofit applications in HVAC equipment, electrical control enclosures, and similar trade environments. The male-female configuration allows boards to be stacked or mounted with a single fastener pass-through from one side, simplifying multi-board layouts and enclosure assembly.

Key Features

• 6-32 male-female thread configuration for versatile circuit board mounting
• 0.5-inch overall length with 0.25-inch hex body and 0.25-inch thread length
• Aluminum construction to material grade T-3 with anodized finish for corrosion resistance
• Hex body profile compatible with standard nut drivers and open-end wrenches
• Meets QQ-A-225A Comp 2 fastener standard
• Length tolerance held to plus or minus 0.005 inches for consistent board spacing

Compatibility

Designed as an OEM-style replacement or service hardware standoff for circuit board mounting applications requiring a 6-32 thread size and 0.5-inch overall length in inch-measurement systems.

Installation Notes

Installation is typically performed by electricians, HVAC technicians, or electronics technicians during control board service or enclosure assembly. Always de-energize and lock out the equipment before removing or installing circuit board hardware. A hex nut driver sized for 0.25-inch width across flats is the appropriate tool for this standoff. Do not overtighten, as aluminum threads can strip or gall if excessive torque is applied.
