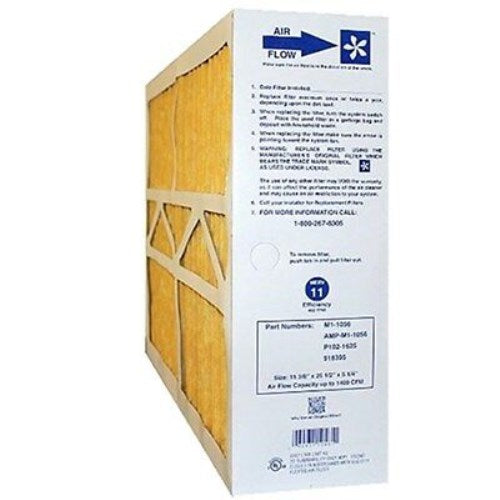

Electro-air m1-1056 Merv 11 Media Air Filter 15.375x25.5x5.25

Product Description

The ELECTRO-AIR m1-1056 is a MERV 11 media air filter designed for whole-house air cleaner systems. It is constructed from continuous hydrophobic polyolefin fibers that are cellulose free, meaning the media will not shred or absorb moisture during operation. This design actively resists mold growth over the service life of the filter. A structured density gradient combined with an electret charge delivers higher initial filtration efficiency and sustains that efficiency as the filter loads. HVAC technicians and service professionals install this filter as a scheduled replacement in compatible media air cleaner cabinets.

This filter is sized at 15.375 inches wide by 25.5 inches long by 5.25 inches thick and fits media air cleaner cabinets requiring that nominal footprint. It is suitable for residential forced-air systems where improved particulate capture at MERV 11 is specified. The MERV 11 rating makes it appropriate for applications where capturing finer dust, mold spores, and similar particulates is a priority without excessive static pressure drop.

Key Features

• MERV 11 filtration efficiency for effective particulate capture in residential air systems
• Continuous hydrophobic polyolefin fiber media resists moisture absorption and mold growth
• Cellulose-free construction prevents media shredding over time
• Structured density gradient with electret charge maintains efficiency throughout the filter life
• Nominal dimensions of 15.375 inches x 25.5 inches x 5.25 inches for direct cabinet fit

Compatibility

Designed for use with the ElectroAir EANC1625-A media air cleaner cabinet.

Installation Notes

Installation of this filter should be performed by a qualified HVAC technician as part of a scheduled maintenance visit. Power down the air handler or furnace at the disconnect or breaker before opening the media air cleaner cabinet. Confirm airflow direction arrows on the filter frame align with the system airflow direction before seating the filter. Refer to the cabinet manufacturer guidelines for recommended replacement intervals.

Technical Specifications

• Filter Efficiency: MERV 11
• Width: 15.375 inches (nominal 16 inches)
• Length: 25.5 inches (nominal 25 inches)
• Thickness: 5.25 inches (nominal 5 inches)
• Media Material: Continuous Hydrophobic Polyolefin Fibers
• Air Filter Type: Media Air Cleaner Filter
• Manufacturer: Electro-Air Canada

Standard Information

• Brand: ELECTRO-AIR
• Manufacturer Part Number: m1-1056
