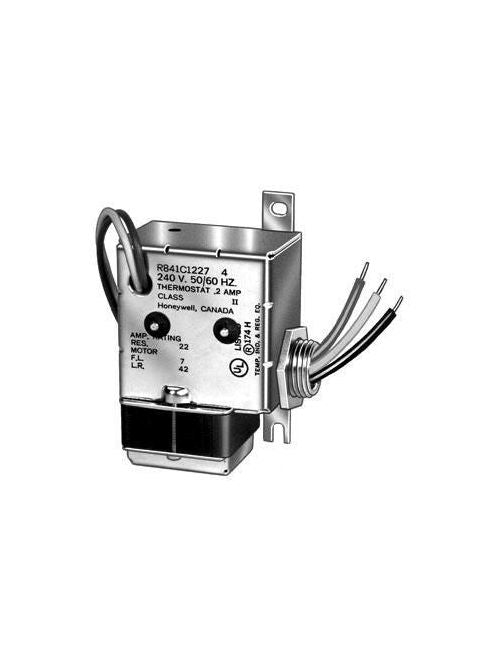

Honeywell R841C1227 22 Amp 24 VAC SPST Relay

Product Description

The Honeywell R841C1227 is a 22 Amp SPST relay designed for efficient control of electric heating systems. It operates at 24 VAC and is a reliable component in HVAC applications.

• Compatible with baseboard, ceiling cable, and duct heaters
• Switches up to a 5000 W load
• Operates with each cycle of the thermostat

Product Highlights

This SPST relay can be mounted in any position and handles temperature ranges from -20 to 150 degrees Fahrenheit. It switches contacts in about 75 seconds, making it a critical part of heating control systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: R841C1227
• Manufacturer: Honeywell Incorporated

Technical Specifications

• Coil Voltage: 24 VAC
• Voltage Rating: 120/240 VAC
• Amperage Rating: 7 A at 208/240/277 VAC, 14 A at 120 VAC
• Contact Configuration: SPST
• Terminal Type: Leadwire
• Dimensions: 13-7/8 inches L x 2-13/16 inches W x 1-1/2 inches D
• Country of Origin: United States
