Electri-flex 80162 Liquid Tight Flexible Metal Conduit 2 in 50 Ft

Product Description

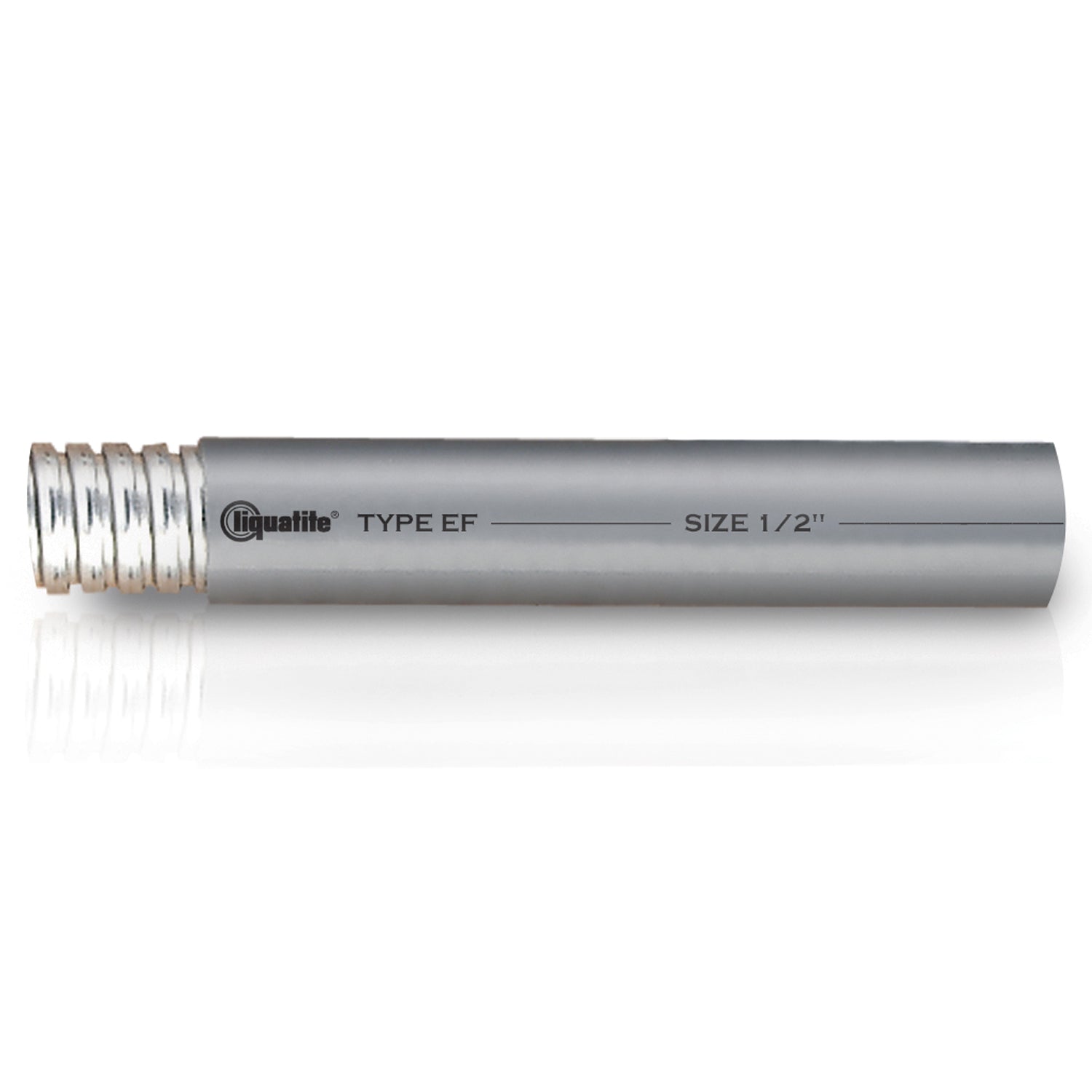

The ELECTRI-FLEX 80162 is a Type EF general purpose liquid tight flexible metal conduit built for installations that involve motion, vibration, and repeated bending. Constructed from galvanized steel with a gray PVC outer jacket, this conduit provides solid mechanical protection and moisture resistance to enclosed conductors. The 2-inch trade size version spans 50 feet per coil, with an inside diameter ranging from 2.02 to 2.045 inches and an outside diameter of 2.34 to 2.375 inches. It carries a temperature rating of -20 to 80 degrees C, making it suitable for a broad range of indoor and outdoor environments. Licensed electricians and journeymen working in commercial, industrial, and light residential applications install this conduit where rigid systems are not practical.

Type EF conduit is designed for general purpose applications where flexible routing is required around equipment, machinery, or structural obstructions. Common install scenarios include connections to HVAC equipment, pumps, compressors, motors, and other vibrating machinery where a rigid conduit run would stress the conductors or fittings. The 5.5-inch minimum bend radius and 50-foot coil length give installers enough material to handle most standard panel-to-equipment runs without splicing. This is a competitive-grade, non-UL listed product intended for installations where UL listing is not a project specification requirement.

Key Features

• Galvanized steel construction provides durable mechanical protection for enclosed conductors
• Liquid tight design resists moisture intrusion along the conduit body
• 2-inch trade size with ID of 2.02 to 2.045 inches and OD of 2.34 to 2.375 inches
• 50-foot coil length reduces splice points on longer equipment connections
• 5.5-inch minimum bend radius supports tight routing around obstructions
• Temperature rated from -20 to 80 degrees C for broad environmental compatibility

Compatibility

Designed as a general purpose flexible metal conduit suitable for equipment connections requiring motion, vibration, and bending relief in electrical installations where non-UL listed conduit is acceptable per the project specification.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out all circuits before making conduit connections. Use liquid tight conduit fittings rated for the 2-inch trade size to maintain the moisture seal at termination points. Verify that the non-UL listing status of this conduit is acceptable under the authority having jurisdiction before installation.

Technical Specifications

• Type: Type EF General Purpose
• Trade Size: 2 inches
• Inside Diameter: 2.02 to 2.045 inches
• Outside Diameter: 2.34 to 2.375 inches
• Length: 50 ft
• Bend Radius: 5.5 inches
• Temperature Rating: -20 to 80 degrees C
• Material: Steel
• Finish: Galvanized
• Color: Gray

Standard Information

• Brand: ELECTRI-FLEX
• Manufacturer Part Number: 80162
