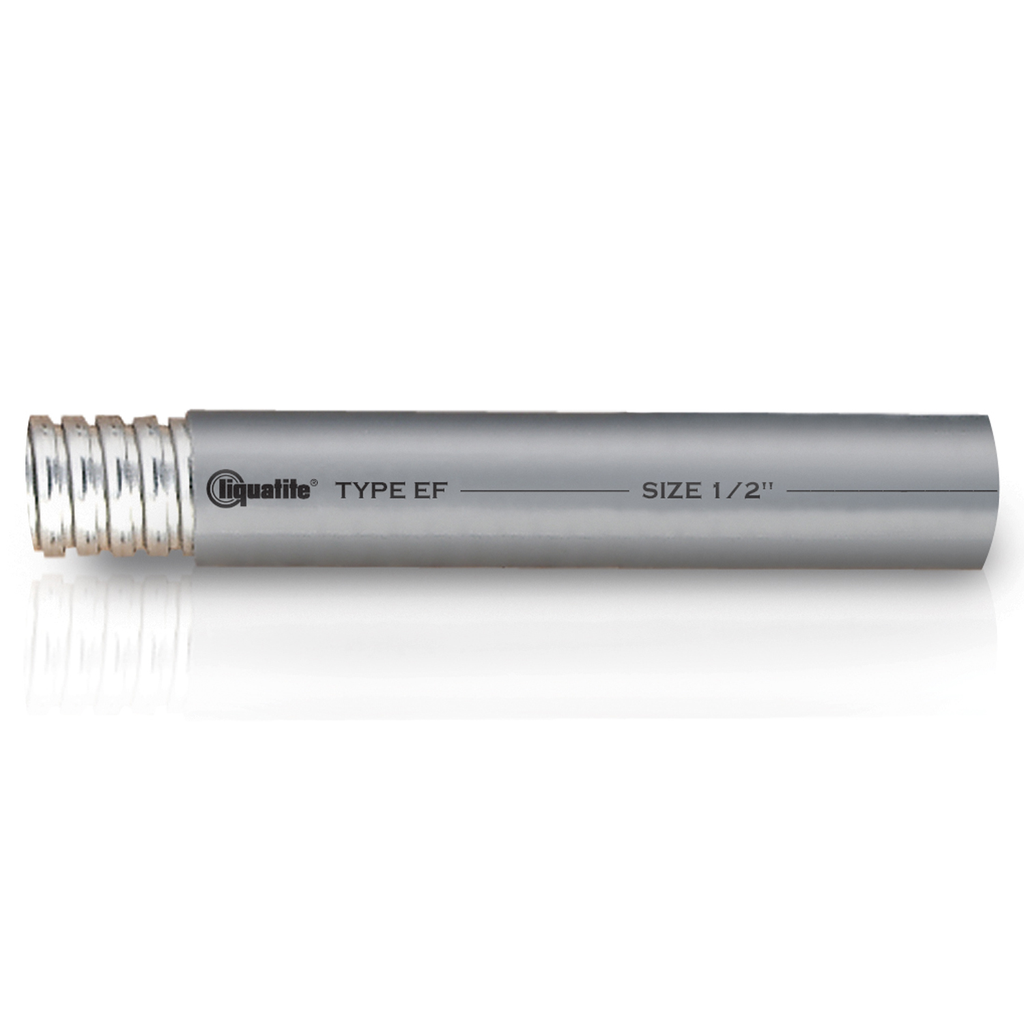

Electri-flex 80111 Flexible Liquidtight Conduit 1/2 in 100 Ft

Product Description

The ELECTRI-FLEX 80111 is a non-UL flexible liquidtight conduit supplied in a 100-foot carton, trade size 1/2 inch. Classified as Type EF and finished in machine tool gray, this conduit is constructed with a steel core and a PVC outer jacket that delivers both mechanical protection and moisture resistance to enclosed conductors. The steel construction provides durable flexibility for installations subject to continuous motion, vibration, and bending. The inside diameter ranges from 0.622 to 0.642 inches, with an outside diameter ranging from 0.820 to 0.840 inches, and a minimum inside bend radius of 2 inches. It is installed by licensed electricians in commercial and industrial settings.

The 80111 is designed for use in industrial environments, machine tool applications, and outdoor installations where PVC jacket UV resistance is required. It serves as a competitive-grade alternative to Type LT liquidtight conduit and is well suited for runs requiring repeated flexing or routing around equipment. Typical applications include connecting motors, control panels, pumps, and other machinery where rigid conduit is impractical. The conduit is rated for working temperatures from -20 degrees C to 80 degrees C, making it appropriate for both cold storage and elevated-temperature industrial environments.

Key Features

• Steel core construction provides mechanical strength and flexibility under repeated bending and vibration
• PVC jacket offers moisture protection and inherent UV resistance for outdoor and industrial use
• 1/2 inch trade size with inside diameter range of 0.622 to 0.642 inches
• Minimum inside bend radius of 2 inches allows tight routing in confined spaces
• Rated from -20 degrees C to 80 degrees C for broad temperature range serviceability
• Supplied in a 100-foot carton for full-run installations
• Made in the United States

Compatibility

Designed as a competitive-grade replacement for Type LT flexible liquidtight conduit in 1/2 inch trade size applications across industrial, machine tool, and outdoor electrical installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for flexible liquidtight conduit. De-energize all circuits before cutting, routing, or terminating the conduit. Use liquidtight fittings rated for the conduit type and trade size to maintain moisture integrity at termination points. Avoid bending the conduit below the minimum inside bend radius to prevent conductor damage and conduit kinking.

Technical Specifications

• Type: EF
• Trade Size: 1/2 inch
• Length: 100 feet
• Color: Machine Tool Gray
• Material: Steel with PVC jacket
• Inside Diameter Minimum: 0.622 inches
• Inside Diameter Maximum: 0.642 inches
• Outside Diameter Minimum: 0.820 inches
• Outside Diameter Maximum: 0.840 inches
• Inside Bend Radius: 2 inches
• Working Temperature Range: -20 degrees C to 80 degrees C
• Weight: 24 pounds per 100 feet
• Country of Origin: United States

Standard Information

• Brand: ELECTRI-FLEX
• Manufacturer Part Number: 80111
