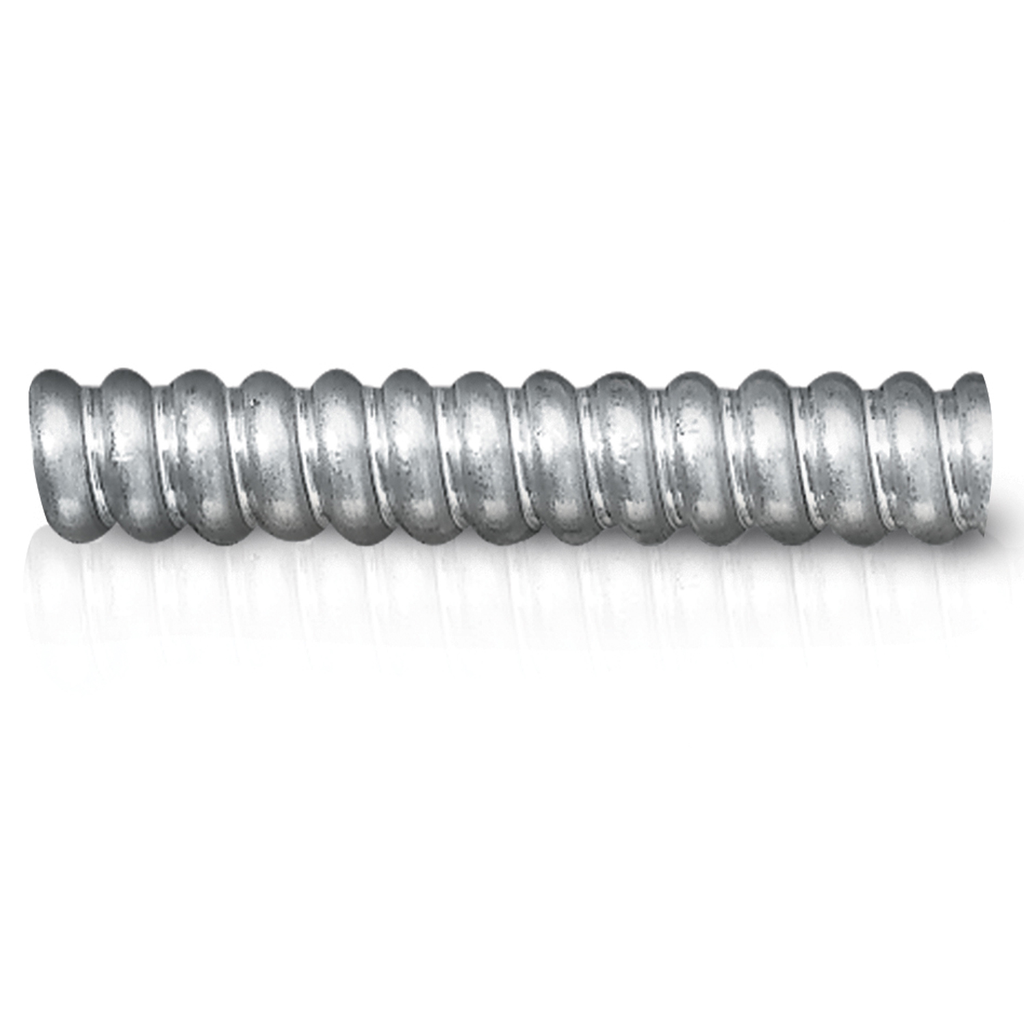

Electri-flex 69424 Type ABR-12 Flexible Aluminum Conduit 3/4 in

Product Description

The ELECTRI-FLEX 69424 is a UL-listed, non-jacketed flexible aluminum conduit sold under the Liquatite Type ABR-12 designation and commonly referenced in the field as Greenfield or Reduced Wall Flex. Built to a reduced-wall profile, the conduit ships on a 500 ft reel, making it practical for larger rough-in jobs where multiple circuits or long runs are required. The 3/4 inch trade size measures 0.812 to 0.835 inches ID and 1.045 to 1.105 inches OD. Licensed electricians install this conduit in commercial and residential wiring applications where flexible metal raceway is required by design or code.

Type ABR-12 flexible aluminum conduit is suited for a broad range of general wiring applications where non-jacketed flexible metal conduit is acceptable. It is commonly installed as a whip between a junction box and a fixed equipment connection, in lighting fixture drops, motor terminations, and other locations requiring conduit flexibility to absorb vibration or accommodate equipment alignment. The aluminum construction keeps the assembly lightweight, which reduces labor time on overhead and ceiling installations. This product is manufactured in the United States.

Key Features

• UL-listed non-jacketed flexible aluminum conduit meets standard requirements for flexible metal conduit raceway
• Reduced-wall profile designated as Type ABR-12 for applications where full-wall conduit is not required
• 3/4 inch trade size with an ID range of 0.812 to 0.835 inches and OD range of 1.045 to 1.105 inches
• 500 ft reel length supports high-volume or multi-circuit installations from a single spool
• Aluminum construction reduces weight compared to steel flexible conduit, easing overhead installation
• Domestic manufacture — country of origin: United States

Compatibility

Designed as a standard 3/4 inch trade size flexible metal conduit compatible with UL-listed 3/4 inch flexible metal conduit fittings and connectors.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes governing flexible metal conduit use. De-energize all circuits and verify absence of voltage before making terminations. Use fittings listed specifically for use with flexible metal conduit and sized for the 3/4 inch trade size. Avoid over-bending beyond the conduit minimum bend radius, as excessive bending can distort the raceway and compromise wire pulling and conduit integrity.

Technical Specifications

• Trade Size: 3/4 inch
• Inner Diameter: 0.812 to 0.835 inches
• Outer Diameter: 1.045 to 1.105 inches
• Length: 500 ft reel
• Material: Aluminum
• Type: ABR-12 (Reduced Wall Flexible Metal Conduit)
• Listing: UL Listed
• Country of Origin: United States

Standard Information

• Brand: ELECTRI-FLEX
• Manufacturer Part Number: 69424
