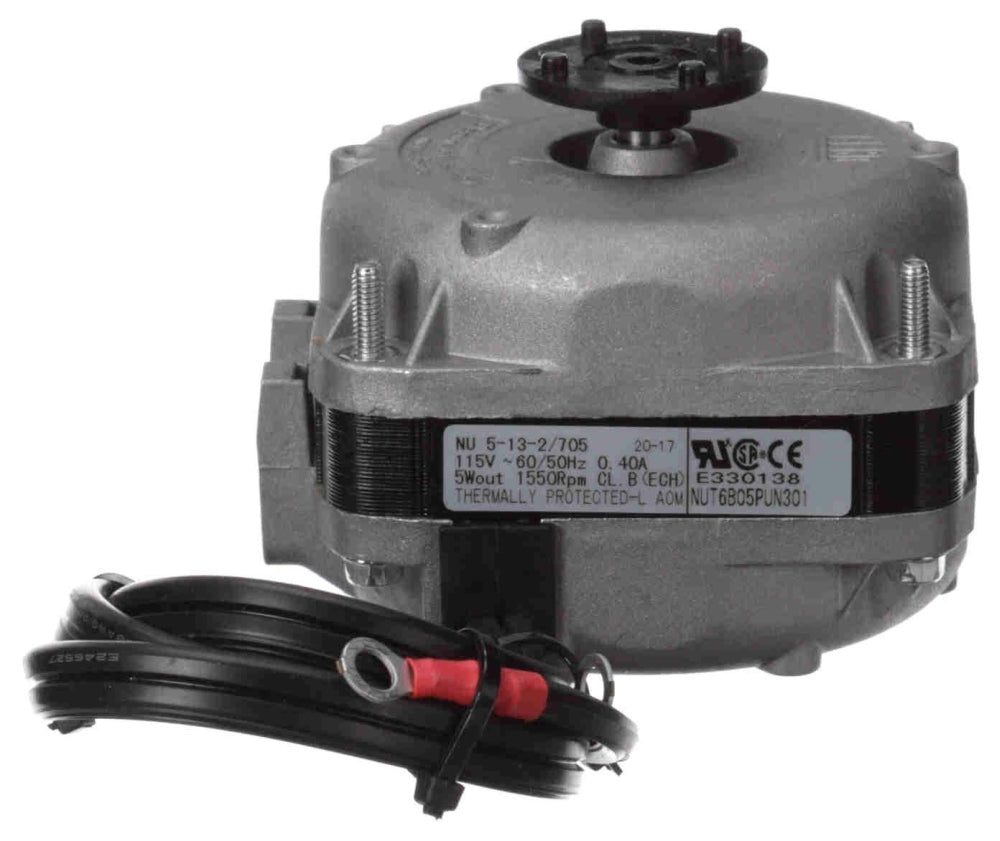

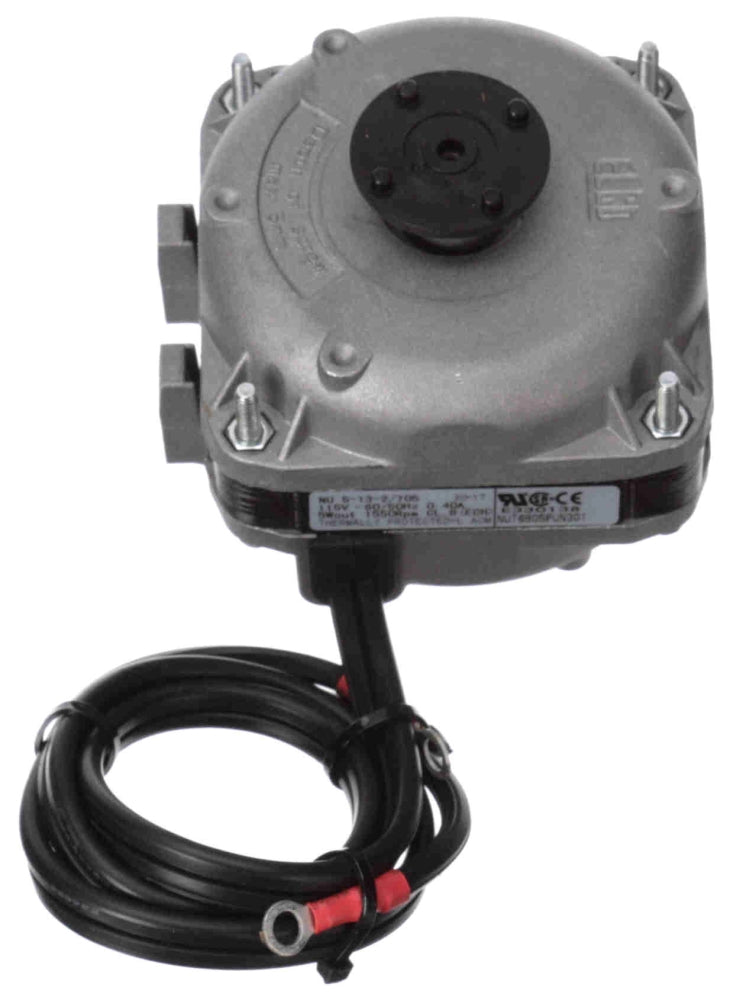

Elco EC5W115 Refrigeration Fan Motor 5 W 115 VAC 60 Hz

Product Description

The Elco EC5W115 is a refrigeration fan motor designed for various cooling applications. This motor operates at five watts with a voltage rating of one hundred fifteen volts AC. It is a single-phase motor with a frequency rating of sixty hertz and a speed of one thousand five hundred fifty RPM. The motor features an aluminum frame and a flat shaft configuration, making it suitable for a wide range of installations.

• Power Rating: 5 Watt
• Voltage Rating: 115 Volt AC 1-Phase
• Insulation Class: B

Product Highlights

This refrigeration fan motor is ideal for use in cooling systems and comes equipped with a shaded pole design. The motor supports continuous duty operation and is built with class B insulation for enhanced durability.

Product Information

Standard Information

• Manufacturer: Elco
• Approval: UL, CSA, CE

Technical Specifications

• Power Rating: 5 Watt
• Voltage Rating: 115 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 0.4 Amp
• Speed Rating: 1550 RPM
• Weight: 2 Pound
• Application: Refrigeration Motor
• Enclosure Type: Totally Enclosed, Air-Over
• Frame Material: Aluminum
• Number of Poles: 4
• Shaft Type: Flat
• Rotation Type: Counter Clockwise
• Ambient Temperature Rating: 40 Deg C
• Starting Method: Across the Line
• Size: 3.3 Inch Diameter x 2.8 Inch Length
