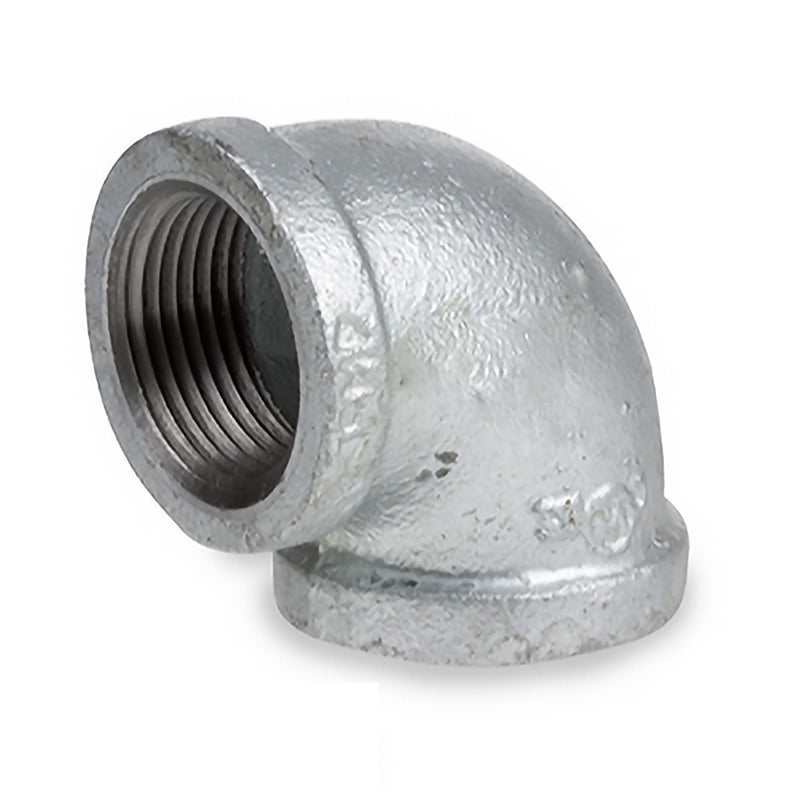

ELBOWS COUPLINGS & NIPPLES-GENERIC 1-IN-90DEG-GALV-ELBOW

Product Description

The ELBOWS COUPLINGS & NIPPLES-GENERIC 1-IN-90DEG-GALV-ELBOW is designed for 90-degree connections in piping systems. Made of galvanized malleable iron, it meets ASTM A197 standards and complies with ASME B16.3 dimensions. This fitting provides robust connections with NPT threads that conform to ASME B1.20.1 standards. Suitable for various applications including air, water, oil, natural gas, and steam, this product is UL listed and FM approved, ensuring reliability under pressure. The class 150 rating supports up to three hundred psi. Additionally, the fitting complies with ANSI/NSF 61-4 Annex G and CA AB1953 regulations regarding lead content.

• Constructed from galvanized malleable iron.
• Features NPT threaded end connections.
• Meets industry standards including ASTM A197.

Product Highlights

Reliable for multiple applications in residential and commercial plumbing.

Product Information

Standard Information

• Product Type: 90° Elbow
• Material: Galvanized Malleable Iron

Technical Specifications

• Size: 1 inch
• End Connection: NPT
• Pressure Rating: 150 psi
• Temperature Rating: -20° to 350° F
• Standards Met: UL Listed, FM Approved @ 300 psi
• Lead Free: Yes
• Applications: Air, water, oil, natural gas, steam, potable water, plumbing
• Country of Origin: China or Thailand
