Elbows Couplings & Nipples-Generic 1/2-90deg-Galv-Elbow

Product Description

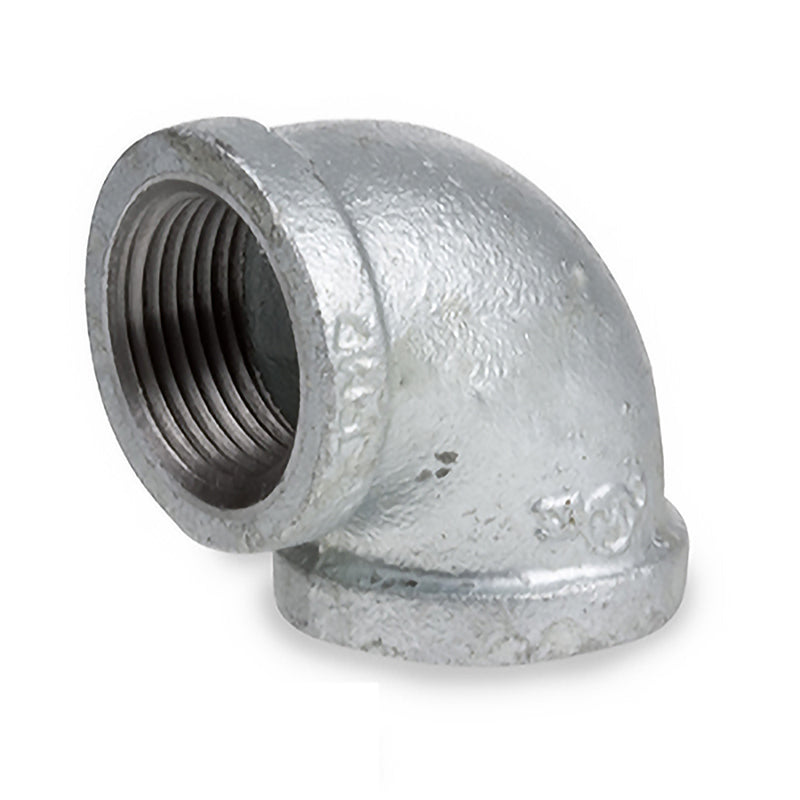

The Elbows Couplings & Nipples-Generic 1/2-90Deg-Galv-Elbow is a 90-degree elbow pipe fitting made from galvanized malleable iron. It meets the standards set by ASME B16.3 and features NPT threads in accordance with ASME B1.20.1. This fitting is rated for class 150 and has UL listing with FM approval at 300 psi. It is suitable for various applications involving air, water, oil, natural gas, and steam.

• Manufactured from ASTM A197 galvanized malleable iron.
• Includes female NPT x female NPT end connections.
• Compliant with ANSI/NSF 61-4 Annex G and CA AB1953 standards.

Product Highlights

This elbow fitting is designed to provide reliable performance in plumbing and piping systems.

Product Information

Standard Information

• Product Type: 90° Elbow
• Material Type: Galvanized Malleable Iron

Technical Specifications

• End Connection: NPT
• Pressure Rating (psi): 150
• Size (inches): 0.500 (1/2)
• Standards Met: AB1953
• Temperature Rating: -20° to 350° deg F
