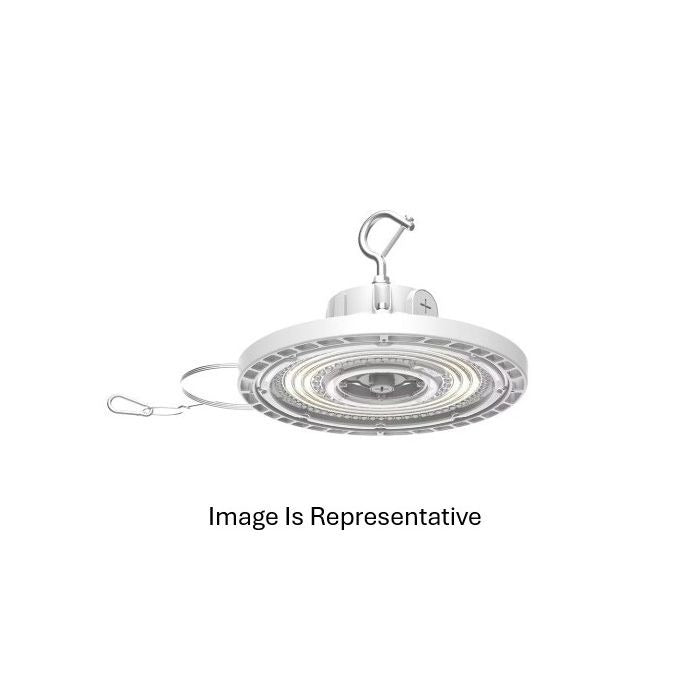

Eiko BAYE4PS150OS8FCCTHDIMWH Round Led High Bay 150W

Product Description

The EIKO BAYE4PS150OS8FCCTHDIMWH is a round LED high bay fixture from the BAYE4 series, designed for industrial and commercial overhead lighting applications. It features a PowerSET selectable wattage of 100, 120, or 150 watts and delivers up to 22,500 lumens at maximum output. ColorSET technology allows field selection of correlated color temperature at 3500K, 4000K, or 5000K, giving installers flexibility at commissioning. The fixture operates across a wide voltage range of 120 to 347 volts and supports 0-10V dimming. An IK08 impact-resistant polycarbonate lens and die-cast aluminum housing make this fixture suitable for demanding environments.

This high bay is intended for dry, damp, and wet-rated overhead installations in warehouses, manufacturing floors, gymnasiums, big-box retail spaces, and similar high-ceiling commercial or industrial settings. The selectable wattage and CCT options reduce the number of SKUs a contractor needs to stock for a single project. Hook mount, yoke surface mount, and pipe adapter pendant mount options are included, accommodating a range of ceiling configurations. It is appropriate for new construction and retrofit applications where an efficient, long-service LED high bay is required.

Key Features

• PowerSET selectable output: 100W, 120W, or 150W set at installation
• ColorSET field-selectable CCT: 3500K, 4000K, or 5000K
• Up to 22,500 lumens maximum output with 80+ CRI
• Wide voltage input of 120 to 347 volts accommodates most commercial and industrial supply configurations
• 0-10V dimming for integration with lighting controls
• IK08 impact-resistant polycarbonate lens for durability in active environments
• Rated L70 at 100,000 hours at 25 degrees C for extended service life

Compatibility

Designed as an OEM-style replacement or new-installation LED high bay fixture for commercial and industrial overhead lighting systems requiring 120 to 347 volt supply and 0-10V dimming control. Order Code 16458.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Disconnect and lock out power at the circuit breaker before wiring or mounting. Select the desired wattage and CCT using the onboard selectors prior to energizing the fixture. Verify that the mounting method — hook, yoke, or pipe adapter — is rated for the fixture weight and ceiling structure before securing.
