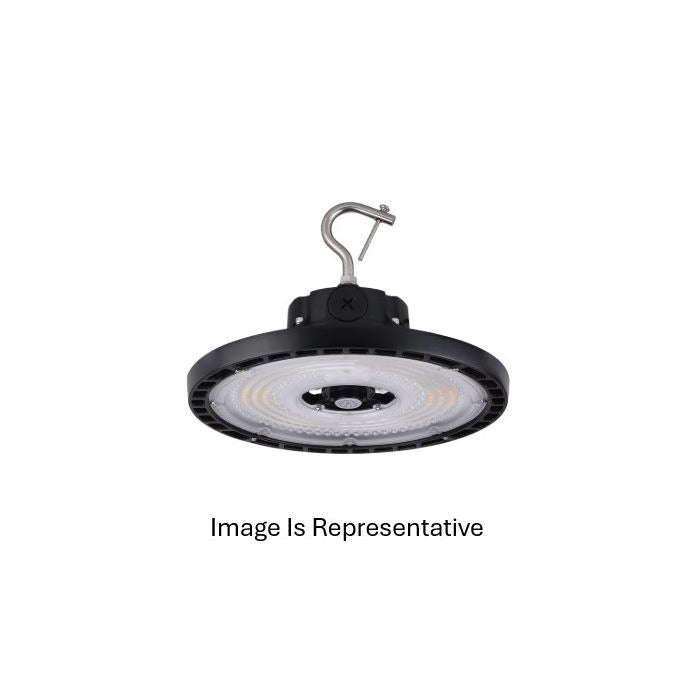

Eiko BAYE4PS150OS8FCCTHDIM Round Led High Bay 150W

Product Description

The EIKO BAYE4PS150OS8FCCTHDIM is a round LED high bay luminaire from the BAYE4 series, designed for commercial and industrial overhead lighting applications. It features PowerSET selectable wattage at 150, 120, and 100 watts, allowing a single fixture to serve multiple project specifications without stocking separate SKUs. ColorSET technology lets the installer select color temperature at 3500K, 4000K, or 5000K CCT in the field. Output reaches 22,500 lumens maximum with a CRI of 80 or better. The fixture operates on 120 to 347 volts and supports 0-10V dimming for integration with lighting control systems. Licensed electricians and lighting contractors handle installation.

This high bay is suited for warehouses, manufacturing floors, gymnasiums, retail distribution centers, and other large-volume spaces requiring robust overhead illumination. The die-cast aluminum housing with a black finish and IK08 impact-resistant polycarbonate lens makes it appropriate for environments where fixtures may be exposed to airborne debris or mechanical contact. Its enclosure rating supports dry, damp, and wet location installations, extending its usable range to covered outdoor areas, wash bays, and food processing facilities. Multiple mounting options accommodate a wide variety of structural conditions in new construction and retrofit projects.

Key Features

• PowerSET selectable wattage: 150W, 120W, or 100W field-configurable at installation
• ColorSET selectable CCT: 3500K, 4000K, or 5000K adjustable before or during installation
• 22,500 lumens maximum output with 80+ CRI for accurate color rendering on the work floor
• 0-10V dimming compatible for use with standard low-voltage dimming control systems
• IK08-rated impact-resistant polycarbonate lens for high-abuse environments
• Rated up to L70 at 100,000 hours at 25 degrees C for long service intervals
• Dry, damp, and wet location listed for versatile installation settings

Compatibility

Designed for use with standard 0-10V dimming control systems operating at 120 to 347 volts. Mounting options include hook mount, yoke for surface mount, and pipe adapter for pendant mount, making it compatible with a broad range of existing high bay mounting infrastructure in commercial and industrial facilities.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify absence of voltage before making any wiring connections. Confirm the selectable wattage and CCT switches are set to the desired position before securing the fixture in its final mounting position. For 0-10V dimming, ensure the control wiring is kept separate from line-voltage conductors and that the dimmer or controller is rated for LED loads.
