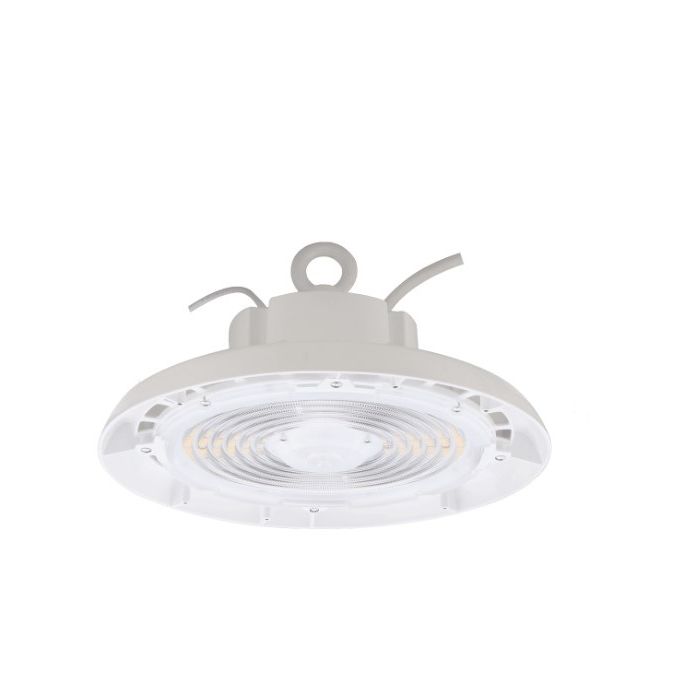

Eiko baye3-ps150-fcct-u-wh 150W Led Round High Bay Light

Product Description

The EIKO baye3-ps150-fcct-u-wh is a round LED high bay luminaire designed for demanding industrial and commercial overhead lighting applications. It operates at selectable wattages of 150W, 130W, or 100W and delivers up to 22,500 lumens at its highest power setting, achieving an efficacy of 150 lumens per watt. Color temperature is field-selectable at 3500K, 4000K, or 5000K, giving installers flexibility without stocking multiple SKUs. The fixture runs on 120-277V and supports 0-10V dimming. It carries a DLC Premium listing and an IP65 rating, making it suitable for wet locations. Licensed electricians and electrical contractors are the primary installers for this fixture type.

This high bay is suited for warehouses, distribution centers, manufacturing floors, gymnasiums, and large retail spaces where high-output overhead lighting is required. The selectable wattage and CCT settings allow a single fixture to serve varied project requirements. It is rated for wet locations, expanding its use to covered outdoor areas, wash-down environments, and semi-exposed industrial spaces. The fixture is positioned as a direct replacement for up to 400W HID systems, making it a practical retrofit choice in facilities still running metal halide or high-pressure sodium high bays.

Key Features

• Selectable wattage: 150W, 130W, or 100W output in a single fixture
• Selectable CCT: 3500K, 4000K, or 5000K field-adjustable color temperature
• Up to 22,500 lumens and 150 lumens per watt efficacy at full power
• 0-10V dimming support for lighting control system integration
• IP65-rated for wet locations including wash-down and outdoor covered areas
• DLC Premium listed, qualifying for most utility rebate programs
• Auxiliary 12V output available for sensor or control accessories
• Driver surge protection rated at 6kV (L/N-PE and L-N)

Compatibility

Rated as a replacement for up to 400W HID fixtures including metal halide and high-pressure sodium high bays. Operates on 120-277V, making it compatible with standard single-phase commercial and industrial branch circuits. DLC Premium listing confirms compatibility with most utility rebate qualification requirements.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. Disconnect and lock out all power to the circuit before mounting or wiring the fixture. The 0-10V dimming leads require connection to a compatible 0-10V dimming control; consult the fixture wiring diagram before energizing. Verify that the mounting structure is rated for the fixture weight and that the appropriate wet-location wiring methods are used where the IP65 rating is being relied upon.

Technical Specifications

• Wattage: 150W / 130W / 100W (selectable)
• Lumens: 22,500 lm / 19,500 lm / 15,000 lm
• Efficacy: 150 lm/W
• Color Temperature (CCT): 3500K / 4000K / 5000K (selectable)
• CRI: 80+
• Voltage: 120-277V
• Dimming: 0-10V
• IP Rating: IP65
• Location Rating: Wet
• Operating Temperature: -40 degrees F to 122 degrees F (-40 degrees C to 50 degrees C)
• Driver Surge Protection: 6kV (L/N-PE and L-N)
• Auxiliary Output: 12V
• Diameter: 11-3/16 inches (284 mm)
• Height: 5-11/16 inches (144 mm)
• Lens Material: Impact-Resistant Polycarbonate (PC)
• Housing Material: Die Cast Aluminum
• Housing Finish: Matte White Powder Coated
• Lamp Type: LED
• DLC Version: DLC Premium
• HID Equivalent: Up to 400W HID
• Series: BAYE3

Standard Information

• Brand: EIKO
• Manufacturer Part Number: baye3-ps150-fcct-u-wh
