Eiko baye3-ps150-fcct-u 150W Led Ufo High Bay Selectable Cct

Product Description

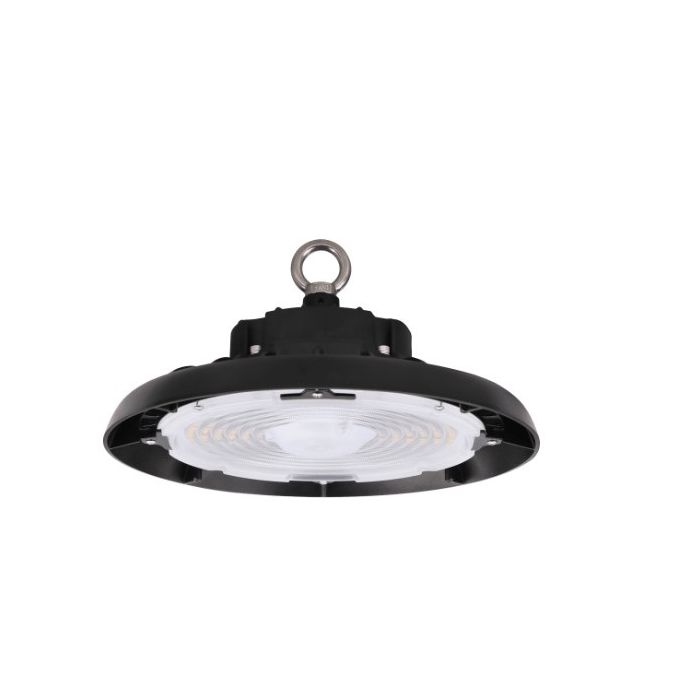

The EIKO baye3-ps150-fcct-u is a round UFO-style LED high bay fixture designed for commercial and industrial overhead lighting applications. It offers selectable wattage at 150W, 130W, or 100W and selectable color temperature at 3500K, 4000K, or 5000K, giving the installing electrician flexibility to match the output and light quality to the specific space. At 150W, the fixture delivers 22,500 lumens at an efficacy of 150 lumens per watt. It operates on 120-277 volts with 0-10V dimming and carries a DLC Premium listing, making it eligible for utility rebate programs. The die-cast aluminum housing with matte black powder coat and IP65-rated polycarbonate lens suits demanding environments.

This fixture is suited for warehouses, manufacturing floors, gymnasiums, retail spaces, and other high-ceiling commercial or industrial interiors. The wet location rating and IP65 enclosure rating allow installation in covered outdoor areas, loading docks, parking structures, and car washes where moisture exposure is a factor. The selectable CCT and wattage settings mean a single SKU can serve multiple zones within a facility, reducing the need to stock multiple part numbers. It is rated as a direct replacement for up to 400W HID sources, making it a strong candidate for retrofit projects converting metal halide or high-pressure sodium fixtures.

Key Features

• Selectable wattage: 150W, 130W, or 100W with corresponding lumen outputs of 22,500 lm, 19,500 lm, and 15,000 lm
• Selectable CCT: 3500K, 4000K, or 5000K field-adjustable color temperature
• 0-10V dimming support for lighting control system integration
• DLC Premium listed (DLC ID: S-Q8DPVZ) for utility rebate eligibility
• IP65-rated, wet location listed for use in moisture-prone environments
• Auxiliary 12V output for optional sensor or control accessories
• Driver surge protection rated at 6kV L/N-PE and 6kV L-N

Compatibility

Rated as a direct equivalent replacement for up to 400W HID fixtures including metal halide and high-pressure sodium high bays. DLC Premium listing under DLC ID S-Q8DPVZ. T20 Status: Exempt.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. Disconnect and lock out all power to the circuit before mounting or wiring the fixture. The fixture supports 120-277V wiring and 0-10V dimming leads; verify driver compatibility with the dimming control system before connecting. Do not exceed the operating temperature range of -40 degrees F to 122 degrees F.

Technical Specifications

• Wattage: 150W / 130W / 100W (selectable)
• Lumen Output: 22,500 lm / 19,500 lm / 15,000 lm
• Efficacy: 150 lm/W
• Color Temperature (CCT): 3500K / 4000K / 5000K (selectable)
• Color Rendering Index (CRI): 80+
• Voltage: 120-277 volts
• Dimming: 0-10V
• IP Rating: IP65
• Location Rating: Wet
• Operating Temperature: -40 degrees F to 122 degrees F (-40 degrees C to 50 degrees C)
• Diameter: 11.19 inches (284 mm)
• Height: 5.69 inches (144 mm)
• Lens Material: Impact-resistant polycarbonate (PC)
• Housing Material: Die-cast aluminum
• Housing Finish: Matte black powder coat
• Driver Surge Protection: 6kV L/N-PE and 6kV L-N
• Auxiliary Output: 12V
• DLC Listing: DLC Premium (ID: S-Q8DPVZ)
• HID Equivalent: Up to 400W HID
• Series: BAYE3
• Order Code: 13163

Standard Information

• Brand: EIKO
• Manufacturer Part Number: baye3-ps150-fcct-u
