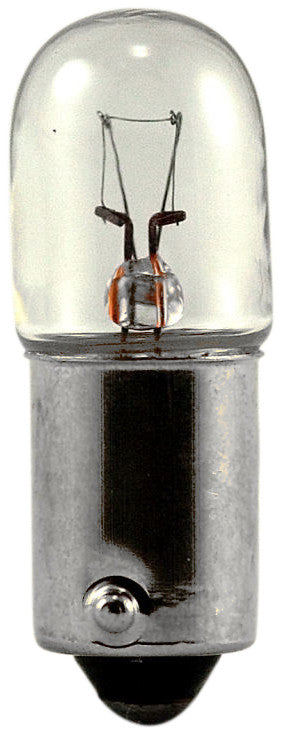

EIKO 1820 Miniature Lamp 3 W 28V .10A T3-1/4

Product Description

The EIKO Miniature Lamp has the MPN 1820. It features a wattage of three watts and operates at twenty-eight volts. This incandescent lamp uses a BA9s miniature bayonet lamp base, and its shape follows the T3.25 specification. The lamp produces twenty point eleven lumens and has an average life of one thousand hours.

• Type: Incandescent Lamp
• Amperage: 0.1 A
• Dimensions: 0.43 inches diameter x 1.19 inches length

Product Highlights

This miniature lamp is suitable for a variety of applications, including lighting fixtures that require a compact bulb.

Product Information

Standard Information

• Manufacturer: EIKO Global
• UPC: 03129340368

Technical Specifications

• Wattage: 3 W
• Voltage Rating: 28 VAC
• Filament Type: C-2F
• Lumens: 20.11 Lumens
• Color: White
• Shape: T3.25
• Lamp Base Type: BA9s Miniature Bayonet
• Fixture Type: Incandescent
• Average Life: 1000 hr
• Standards/Approvals: RoHS Compliant | SAE Certified | ANSI Specified
