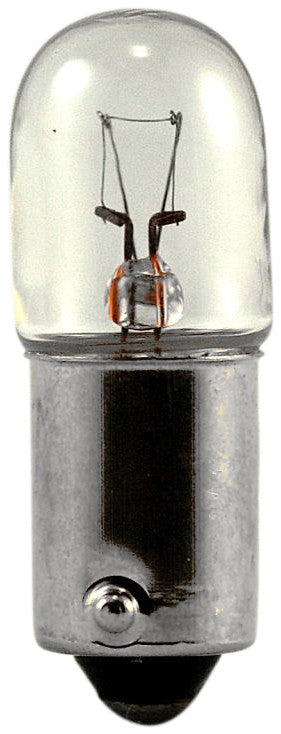

EIKO 1813 14V .1A T3-1/4 MOL 1.19 MINI BAYONET LAMP

Product Description

The EIKO 1813 Miniature Lamp is a reliable incandescent solution. It operates at 14.4 VAC with a power rating of 1 watt and a current rating of 0.1 A. Designed with a BA9s miniature bayonet base, the bulb has a T3.25 shape. It emits 10.81 lumens and has an average life of 1000 hours, making it suitable for various applications that require compact lighting.

• Voltage rating: 14.4 VAC
• Dimensions: 0.43 inches diameter x 1.19 inches length
• Clear lamp finish with a C-2V filament

Product Highlights

This miniature lamp is a good choice for fixtures requiring small bulbs. It's compatible with many decorative applications and various lighting environments.

Product Information

Standard Information

• Manufacturer: EIKO Global
• UPC: 03129340358

Technical Specifications

• Amperage Rating: 0.1 A
• Average Life: 1000 hr
• Dimensions: 0.43 in Dia x 1.19 in L
• Filament: C-2V
• Fixture Type: Incandescent
• Lamp Base Type: BA9s Miniature Bayonet
• Lamp Finish: Clear
• Lamp Type: Incandescent
• Lumens: 10.81 Lumens
• Shape: T3.25
• Standards/Approvals: RoHS Compliant, SAE Certified, ANSI Specified
• Voltage Rating: 14.4 VAC
• Wattage: 1 W
