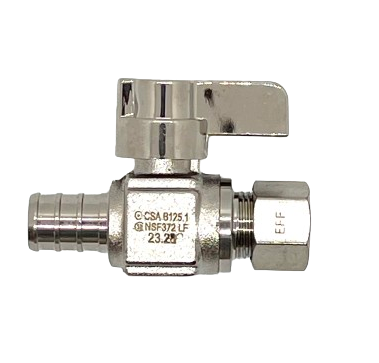

EFF EFF121-03-LF Lead Free 1/4 Turn Mini Ball Valves - Straight

Product Description

The EFF EFF121-03-LF is a lead-free mini ball valve designed for reliable flow control. It features a quarter-turn operation that enables easy opening and closing. This valve comes with a double O-ring seal stem, PTFE seats, and EPDM seals for effective sealing and durability.

• Lead-free construction for safe use.
• Certified to NSF/ANSI standards for drinking water applications.
• Chrome plated brass ball for corrosion resistance.

Product Highlights

This valve is ideal for plumbing applications where space is limited. It is suitable for both residential and commercial systems due to its robustness and reliable operation.

Product Information

Standard Information

• Model: EFF EFF121-03-LF
• Operation Type: Quarter Turn

Technical Specifications

• Stem Seal: Double O-Ring
• Seats Material: PTFE
• Seals Material: EPDM
• Ball Material: Chrome Plated Brass
• Rated Pressure: 400 PSI
• Max Working Pressure: 250 PSI @ 250 deg F
• Nominal Size: 1/2 x 3/8 inches
• Body Material: Brass
• Handle Material: Zinc Alloy
• Lead-Free: Yes
• Temperature Rating: 250 deg F
