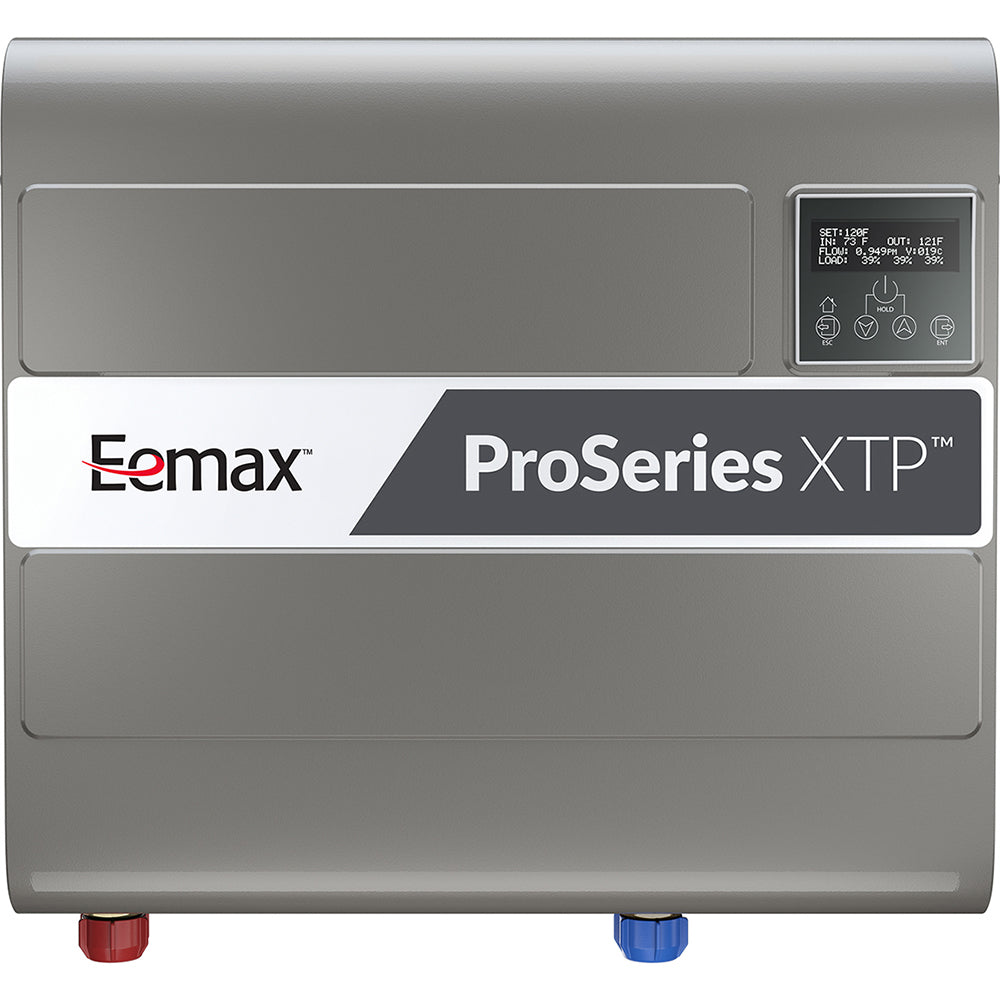

Eemax XTP024208 ProSeries XTP Commercial Thermostatic Electric Tankless Water Heater 24 kW 208V

Product Description

The EEMAX XTP024208 ProSeries XTP commercial thermostatic electric tankless water heater is a solution for on-demand hot water. It features adaptive stability technology that assesses the heater condition. Built with powder-coated galvanized steel and stainless steel heating chambers, it minimizes rust and corrosion. The unit has a 4-line, 20-character LED display.

• Adaptive Stability Technology assesses the heater condition
• Includes wall mounting bracket for easy installation
• SafeStart engages upon start-up to avoid dry-fire occurrence

Product Highlights

This tankless water heater is designed for commercial applications requiring superior thermal performance and stability.

Product Information

Standard Information

• Brand: EEMAX
• Manufacturer Part Number: XTP024208
• Country of Origin: US

Technical Specifications

• Amperage: 67A
• Voltage: 208V
• Kilowatts: 24kW
• Min Operating Pressure: 35 PSI
• Max Operating Pressure: 150 psi
• Min Flow: 0.5 GPM
• Max Flow: 20 GPM
• Fuel Type: Electric
• Phase: 3 ph
• Water Connection: 3/4"
• Connection Type: NPT
• Recommended Wire Size (CU): 4 AWG
• Max Temperature: 180F
• Height: 18.52"
• Width: 20.47"
• Depth: 5.84"
• Model Number: XTP024208
• Amperage Rating: 67 A
• Connection Size: 3/4 in
• Element Material: Copper
• Finish: Powder-Coated
• Flow Rate: 0.5 to 20 gpm
• Material: Steel
• Power Rating: 24 kW
• Pressure Rating: 35 to 150 psi
• Temperature Rating: 60 to 180 deg F
• Voltage Rating: 208 V
• Wire Size: 4 AWG
• Adjustable Thermostat: Yes
• Application: Booster (Up To 180 F), Commercial Kitchens, Dishwasher, Kitchen Sinks, Mop Sinks, Recirculation Loop, Utility Sinks, Wet Bar Sinks
• Cold Inlet Gender: Female
• Cold Inlet Size: 3/4"
• Cold Inlet Type: NPT
• Commercial / Residential: Commercial
• Control Type: Digital Display With Keypad
• Cord Conductor Gauge: 4 AWG
• Default Temp.: 120 F
• Environment: Indoor
• Features: High Temperature Limit Switch, Only One Input Water Line Needed For Installation, Safestart Prevents Dry-Fire Occurrence, Self-Diagnostics With Intelligent Controls
• Hot Outlet Connection Gender: Female
• Hot Outlet Size: 3/4"
• Hot Outlet Type: NPT
• Item - Water Heaters: Electric Tankless Water Heater
• Market: Commercial, Industrial
• Max. Flow Rate: 20 GPM
• Max. Water Pressure: 150 psi
• Min. Flow Activation: 0.5 GPM
• Min. Water Pressure: 35 psi
• Minimum Delivered Temperature: 180 F
• Mounting: Wall Mounting
• Mounting Orientation: Horizontal, Vertical
• Mounting Type: Wall Mounting
• Nema Rating: N4
• Operating Voltage: 208/240V AC
• Overall Depth: 5 21/25"
• Overall Height: 18 13/25"
• Overall Width: 20.47"
• Power Consumption: 24000 W
• Temperature Rise @ Flow: 16 F @ 10 GPM, 18 F @ 9 GPM, 20 F @ 8 GPM, 23 F @ 7 GPM, 27 F @ 6 GPM, 33 F @ 5 GPM, 41 F @ 4 GPM, 55 F @ 3 GPM, 82 F @ 2 GPM
• Water Connection Location: Bottom
• standard: CETLUS LISTED
