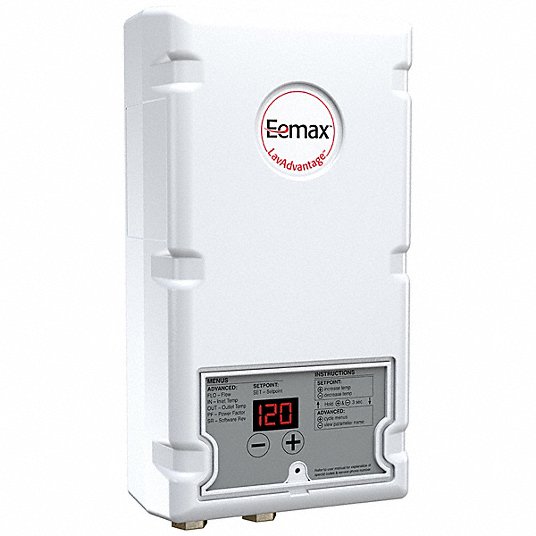

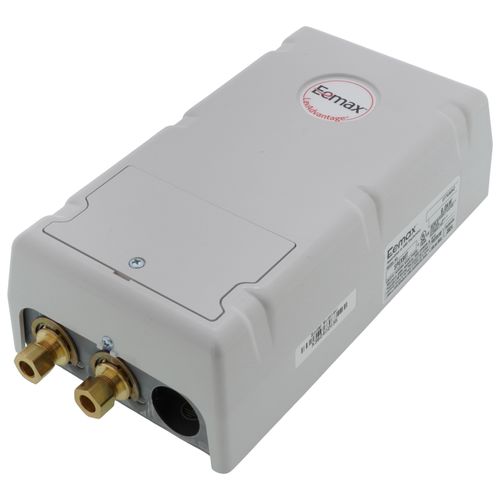

Eemax SPEX90T Electric Tankless Water Heater 9,000 W Undersink

Product Description

The EEMAX SPEX90T electric tankless water heater operates at 277V AC and consumes 9,000 W of power. It is designed for undersink applications in both commercial and residential settings. The heater features active energy management, microprocessor temperature control, and a digital display for thermostatic accuracy. It has a maximum flow rate of 3 gpm and a minimum flow activation of 0.2 gpm.

• Active Energy Management with Power Modulating Controls
• Microprocessor Temperature Control
• Digital Display for Thermostatic Accuracy

Product Highlights

This tankless water heater provides hot water on demand, has silent operation, and is easy to install. Its compact size allows for flexible mounting in any direction.

Product Information

Standard Information

• Brand: EEMAX
• Manufacturer Part Number: SPEX90T
• Country of Origin: United States

Technical Specifications

• Item [Specifications]: Electric Tankless Water Heater
• Depth [Specifications]: 3"
• Width [Specifications]: 5-1/4"
• Height [Specifications]: 9-3/4"
• Market [Specifications]: Commercial, Residential
• Current [Specifications]: 33 A
• Voltage [Specifications]: 277VAC
• Elements [Specifications]: Replaceable Nickel Chrome Cartridge Insert
• Features [Specifications]: Active Energy Management with Power Modulating Controls, Microprocessor Temperature Control, Digital Display for Thermostatic Accuracy, Silent Operation, Easy Installation, High Temperature Limit Switch, Compact Size
• Mounting [Specifications]: Any Direction
• Standards [Specifications]: UL
• Wire Size [Specifications]: 10 AWG
• Application [Specifications]: Eyewash Fountains (EE Models - 90 Degrees F Max) Sanitation (S Models - 180 Degrees F), Multiple Sensor or Metering Faucets, Kitchen Sinks
• Environment [Specifications]: Indoor
• Control Type [Specifications]: Digital Display with Keypad
• Mounting Type [Specifications]: Wall Mounting
• Max. Flow Rate [Specifications]: 3 gpm
• Pressure Range [Specifications]: 35 to 150 psi
• Cold Inlet Size [Specifications]: 3/8 in
• Cold Inlet Type [Specifications]: Compression
• Hot Outlet Size [Specifications]: 3/8 in
• Hot Outlet Type [Specifications]: Compression
• Element Material [Specifications]: Nichrome
• Housing Material [Specifications]: Thermoplastic
• Water Connection [Specifications]: 3/8" Compression
• Maximum Flow Rate [Specifications]: 3 gpm
• Operating Voltage [Specifications]: 277V AC
• Power Consumption [Specifications]: 9,000 W
• Temperature Range [Specifications]: 70 Degrees F to 140 Degrees F
• Default Temperature [Specifications]: 140 Degrees F
• Water Heater Design [Specifications]: Point-of-Use
• Amps - Water Heaters [Specifications]: 33
• Cord Conductor Gauge [Specifications]: 10 AWG Wire
• Min. Flow Activation [Specifications]: 0.20 gpm
• Mounting Orientation [Specifications]: Horizontal, Vertical
• Temp. Rise @ 0.5 GPM [Specifications]: 123 Degrees F
• Temp. Rise @ 1.5 GPM [Specifications]: 41 Degrees F
• Temp. Rise @ 6.0 GPM [Specifications]: Limited to Thermostatic Setting
• Phase - Water Heaters [Specifications]: 1
• Watts - Water Heaters [Specifications]: 9000
• Maximum Water Pressure [Specifications]: 150 psi
• Minimum Water Pressure [Specifications]: 30 psi
• Minimum Flow Activation [Specifications]: 0.2 gpm
• Temperature Rise @ Flow: 31 Degrees F @ 2 gpm, 61 Degrees F @ 1 gpm
• Voltage - Water Heaters [Specifications]: 277
• Commercial / Residential [Specifications]: Both
• Residential / Commercial [Specifications]: Both
• Water Heater Application [Specifications]: Undersink
• Temp. Range - Water Heaters [Specifications]: 70 Degrees to 140 Degrees F
• Maximum Delivered Temperature [Specifications]: 140 Degrees F
• Minimum Delivered Temperature [Specifications]: 70 Degrees F
• Overall Dimensions - H x W x D [Specifications]: 10.75 in x 5.25 in x 3 in
• Temp. Rise @ 2.5 GPM - Water Heaters [Specifications]: 24 Degrees F
• Kilowatts (KW): 9
• Amperage: 33
• Max Operating Temp: 140°F
• Min Operating Pressure (PSI): 30
• Max Pressure (PSI): 150
• Flow Rate: 0.5-2.0 GPM
• Flow Rate at 40F Temp Rise (GPM): 2
• Flow Rate at 60F Temp Rise (GPM): 1
• Flow Rate at 70F Temp Rise (GPM): 0.9
• Flow Rate at 50F Temp Rise (GPM): 1.2
• Depth (Inches): 2-87/100"
• Efficiency: 99%
• Water Connection: 1/2"
• MAX PSI: 150
• Power: 9kW
• Volts: 277V
• Phase: Single
• Recommended Wire Size: 10 AWG
• Brand: EEMAX
• Sub-brand: LavAdvantage
• Manufacturer Part Number: SPEX90T
• Default Temperature: 110 °F
• Mounting Orientation: Horizontal; Vertical
• Overall Depth: 3 in
• Overall Height: 10.75 in
• Overall Width: 5.25 in
• Standards: ADA Compliant; cETLus Listed; NSF/ANSI 372; UL Listed E86887
• UNSPSC: 40101825
