Product Description

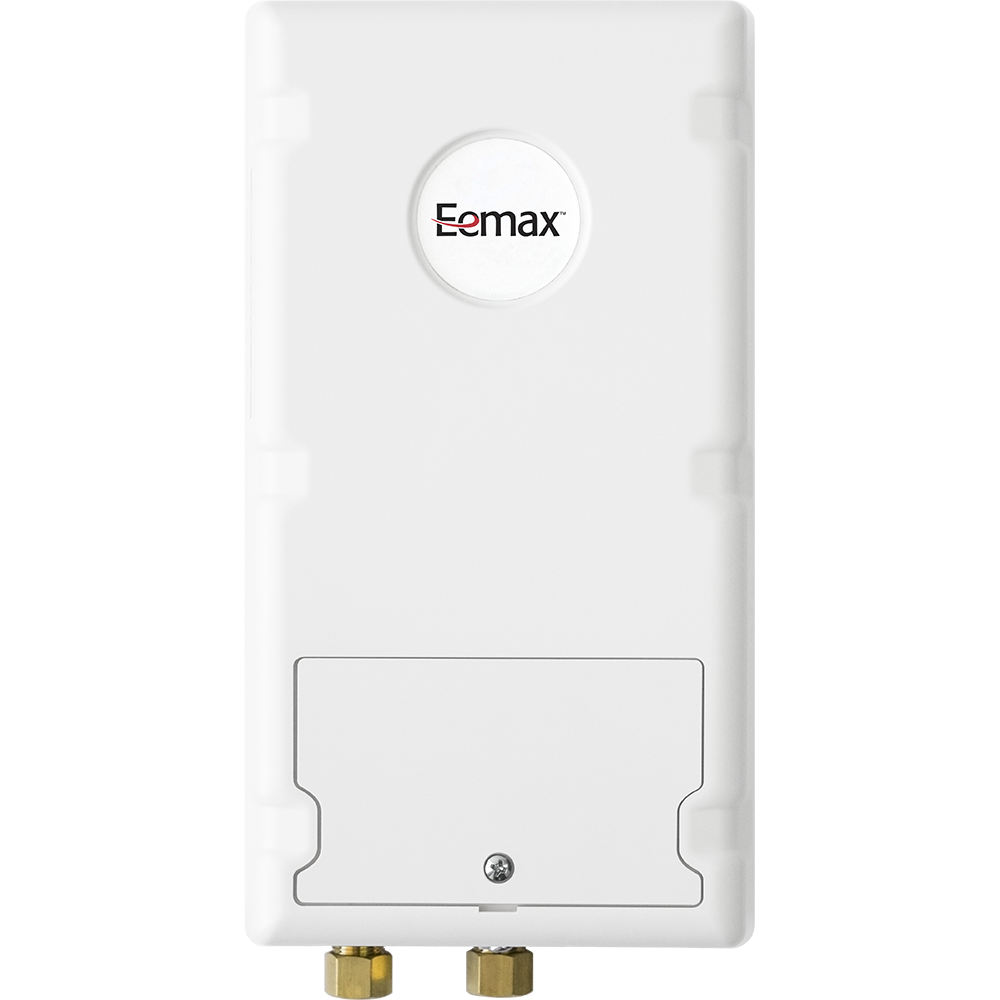

The EEMAX SPEX4277TML is a 4.1kW electric tankless water heater designed for point-of-use installation. It features low flow activation at 0.2 GPM and can be mounted in any orientation for flexible installation. Ideal for ADA compliant facilities, it saves water and energy by eliminating long pipe runs and standby heat loss.
- Low flow activation with 0.2 GPM turn on flow rate
- Mounts in any orientation for a flexible installation
- Endless hot water – no storage capacity to run out
Product Highlights
Provides on-demand hot water with easy installation and reduced energy waste.
Product Information
Standard Information
-
Brand: EEMAX
-
Manufacturer Part Number: SPEX4277TML
Technical Specifications
-
Category: Tankless Water Heater
-
Voltage: 277V
-
Pressure Rating: 150 psi
-
Flow Rate: 0.2 GPM
-
Brand: Eemax
-
kW: 4.1 kW
-
Amps: 15 A
-
Temp Rise F at 0.5 GPM: 56 Degrees
-
Recommended Wire Size: 14 AWG
-
Installation Type: Under Sink
-
Fuel Type: Electric
-
Phase: 1
-
Flow Rate at 70F Temp Rise (GPM): 0.4
-
Flow Rate at 40F Temp Rise (GPM): 0.5
-
Flow Rate at 50F Temp Rise (GPM): 0.6
-
Power: 4.1kW
-
GPM Turn On: 0.2
-
Physical Max Volume: 0 gpm
-
Minimum Operating Temp: 70
-
Max Operating Temp: 140
-
Minimum Operating Pressure: 35 PSI
-
Height: 9 inches
-
Width: 5 inches
-
Depth: 3 inches
-
Cover Material: ABS-UL 94 5VA Rated
-
Element Type: Replaceable cartridge - bare wire
-
Element Material: Nichrome
-
Adjustable Thermostat: True
-
NEMA Cabinets Available: N4, N4X
-
Single Lav Model Available: No
-
Dual Lav Model Available: No
-
Multi Lave Model Available: No
-
Sanitation Model Available: No
-
Tepid Water Model Available: No
-
De-Ionized: No
-
Water Connection: 3/8"
-
NPT or Compression: Compression
-
Plumbing Configuration: Mutli-directional feed
-
Hot or Cold Feed: Pre-heated or cold water feed
-
# of Aerators Supplied: 0
-
GPM Flow Rate of Aerator Supplied: 3
-
Element: EX1870
-
Board: EX384-277
-
Relay/Contactor: EX253B
-
Eco: EX278A
-
Amperage Rating: 14.8 A
-
Domestic/Import: Domestic
-
Energy Factor: 0.99
-
Heating Element: Nickel Chrome
-
Mounting Type: Wall
-
Power Rating: 4100 W
-
Temperature Rating: 70 to 140 deg F
-
Voltage Rating: 277 VAC
-
Wire Size: 14 AWG
