Product Description

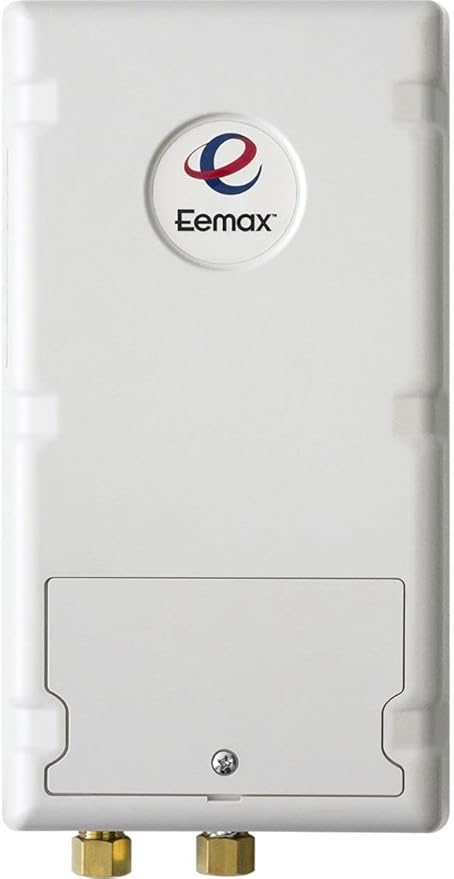

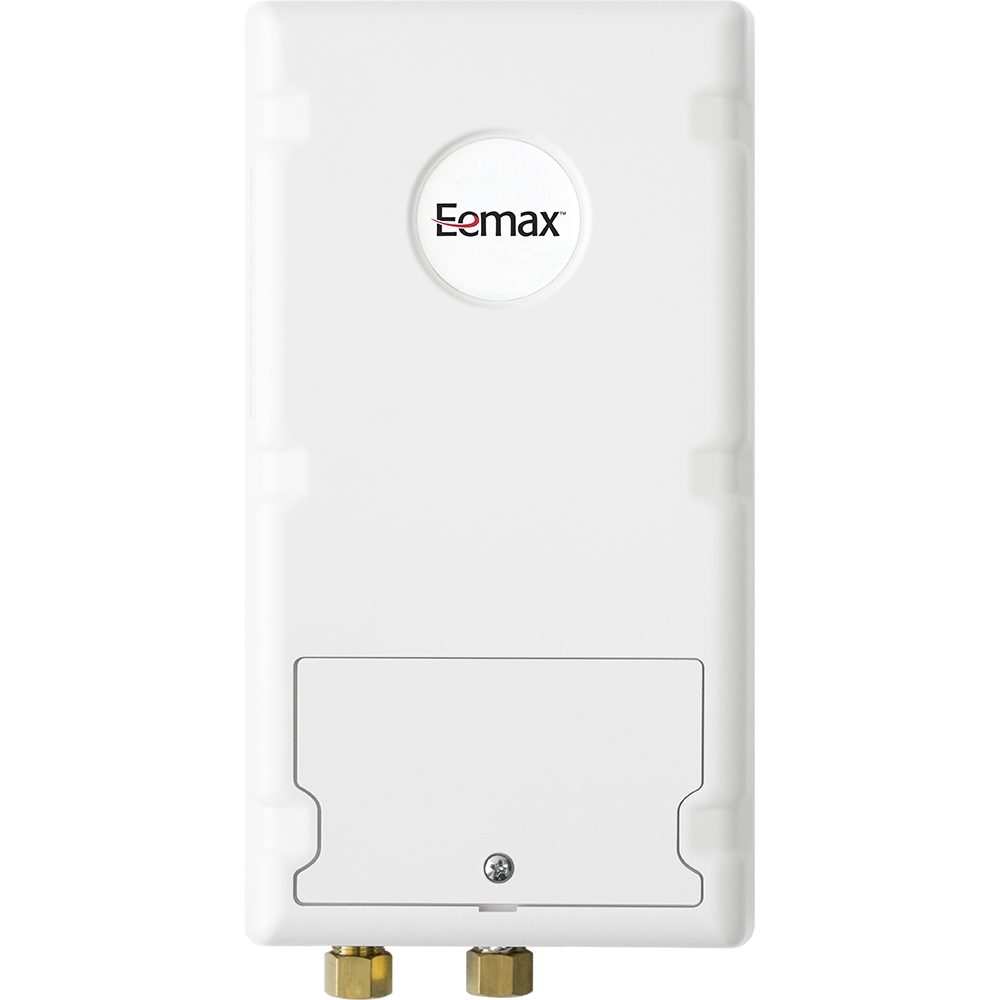

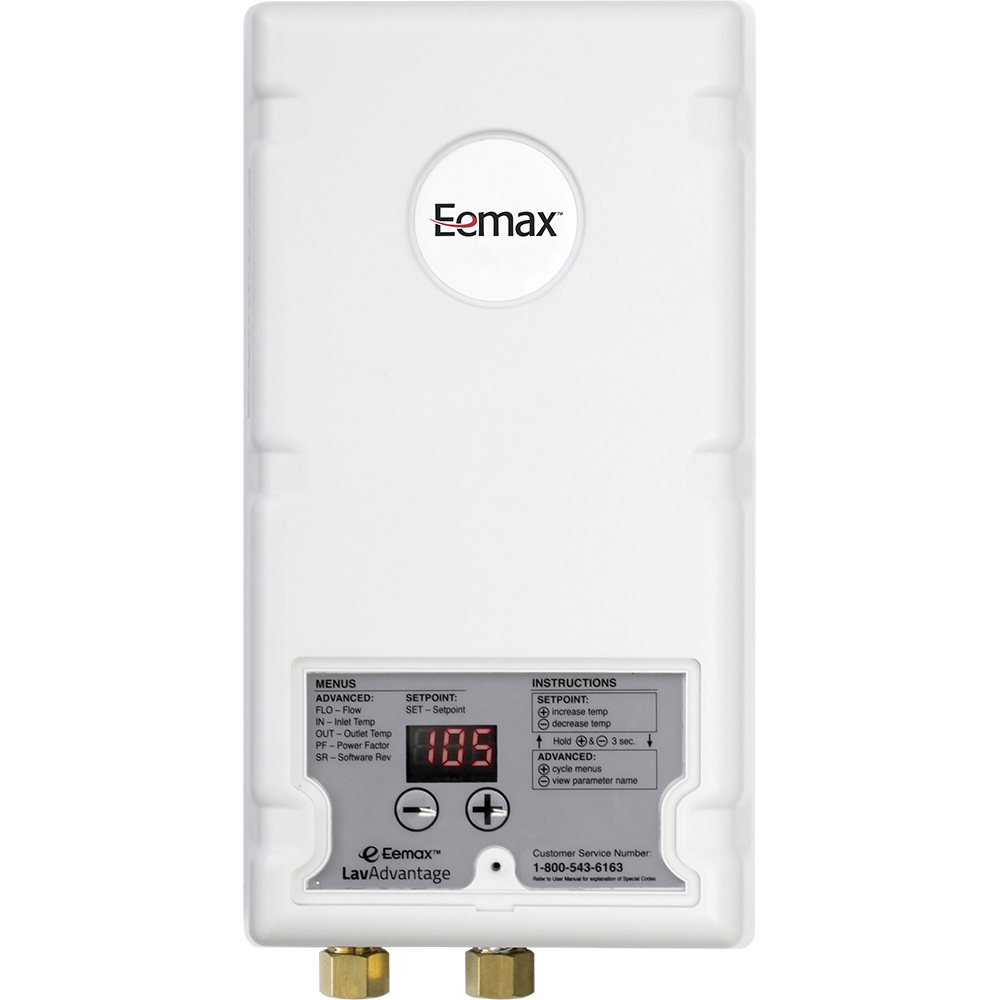

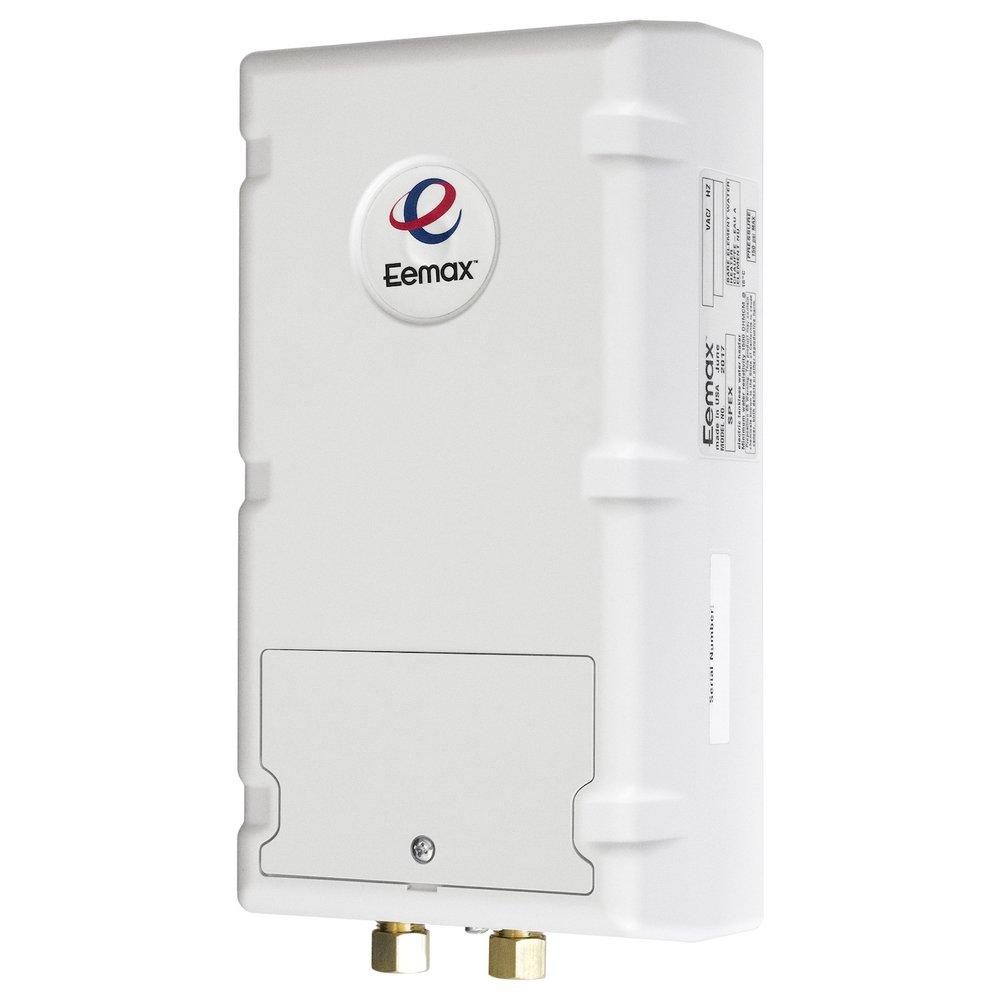

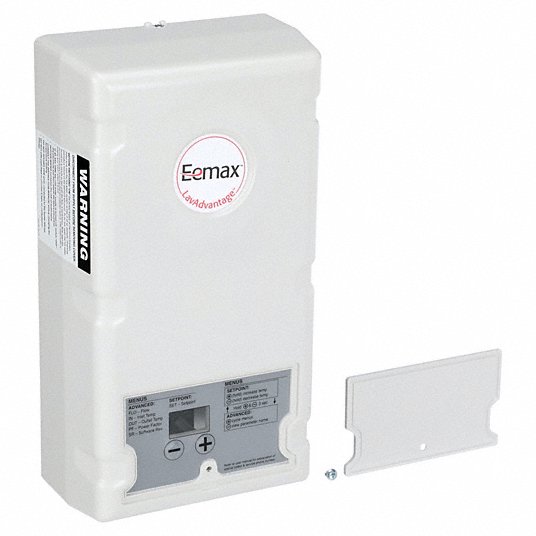

The EEMAX SPEX3012T LavAdvantage is a 3kW, 120V electric tankless water heater ideal for fixed or variable flow applications. It features a low flow activation with a 0.2 GPM turn on flow rate and can be mounted in any orientation for flexible installation. Provides hot water for kitchen sinks, bars, utility sinks, and single lavatory faucets.
- Thermostatic heater ideal for fixed or variable flow applications
- Low flow activation with 0.2 GPM turn on flow rate
- Mounts in any orientation for a flexible installation
Product Highlights
This thermostatic tankless water heater is energy efficient and provides on-demand hot water for commercial, residential, industrial, and safety applications.
Product Information
Standard Information
-
Brand: EEMAX
-
Manufacturer Part Number: SPEX3012T
-
Country of Origin: USA
Technical Specifications
-
Power: 3kW
-
Volts: 120V
-
Phase: 1
-
Amperage: 25 A
-
Recommended Wire Size: 12 AWG
-
GPM Turn On: 0.2
-
Physical Max Volume: 0 gpm
-
Minimum Operating Temp: 70
-
Max Operating Temp: 140
-
Minimum Operating Pressure: 35 PSI
-
Max Pressure Rating: 150 PSI
-
Height: 9 inches
-
Width: 5 inches
-
Depth: 3 inches
-
Cover Material: ABS-UL 94 5VA Rated
-
Element Type: Replaceable cartridge - bare wire
-
Element Material: Nichrome
-
Adjustable Thermostat: True
-
NEMA Cabinets Available: N4, N4X
-
Single Lav Model Available: No
-
Dual Lav Model Available: No
-
Multi Lave Model Available: No
-
Sanitation Model Available: No
-
Tepid Water Model Available: No
-
De-Ionized: No
-
Water Connection: 3/8"
-
NPT or Compression: Compression
-
Plumbing Configuration: Mutli-directional feed
-
Hot or Cold Feed: Pre-heated or cold water feed
-
Aerator Supplied: None
-
# of Aerators Supplied: 0
-
GPM Flow Rate of Aerator Supplied: 3
-
Element: EX480
-
Board: EX384-120
-
Relay/Contactor: EX259B
-
Eco: EX278A
-
Are Cabinets Available: No
-
Fuel Type: Electric
-
Activation GPM: 0.2
-
Maximum Flow Rate: 3 GPM
-
Minimum Flow Rate: 0.2 GPM
-
Heating Technology: Electric Element
-
Indoor Installation: Yes
-
Number of Breakers: 1
-
Vent Type: Vent Free
-
Kilowatts: 3
-
Power Source: Corded Electric
-
Temperature (Max): 140 °F
-
Temperature (Min): 70 °F
-
Wattage: 3000 watts
-
Wire Size: 12
-
Approved for Commercial Use: Yes
-
Certifications: AHRI, UL
-
Collection: LavAdvantage
-
Country Of Origin: USA
-
Low Lead Compliant: Yes
-
Made in America: Yes
-
Manufacturer Warranty: 1 Year Parts
-
Outdoor Approved: No
-
Product Variation: Point-Of-Use Water Heater
-
Series: LavAdvantage
-
Uniform Energy Factor: 0.96
-
Special Features: Anti-Freezing Protection, Overheat Protection
-
Heat Output: 3 Kilowatts
-
Efficiency: 99%
-
Mount Type: Wall
-
Is Electric: Yes
-
Style Name: LavAdvantage
-
Material Type: Copper
-
eBay Product ID (ePID): 24027755743
-
Year Manufactured: Unknown
-
Water Temperature Range: 80°F to 140°F
-
Water Heater Profile: Compact
-
Heating System: Instantaneous (Tankless)
-
Minimum Flow Activation: 1-4 gpm
-
Tank Lining Material: Metal
-
Features: Electric
-
Type: Tankless Water Heater/Boiler
-
Model: SPEX3012T
-
Jacket Diameter: Heater
-
Mounting Location: Indoor Only, Wall, Under Sink
-
Item Height: 10 in
-
Current: 25 A
-
Operating Voltage: 120V AC
-
Default Temperature: 140 °F
-
Environment: Indoor
-
Mounting Orientation: Horizontal; Vertical
-
Manufacturer Warranty Length: 1 yr on Parts; 5 yr Limited on Leaks
-
Maximum Delivered Temperature: 140 °F
-
Control Type: Digital Display with Keypad
-
Cold Inlet Size: 3/8 in
-
Hot Outlet Size: 3/8 in
-
Overall Depth: 3 in
-
Overall Height: 10.75 in
-
Overall Width: 5.25 in
-
Power Consumption: 3,000 W
-
Standards: ADA Compliant; cETLus Listed; NSF/ANSI 372; UL Listed E86887
-
Temperature Rise @ Flow: 10°F @ 2 gpm; 20°F @ 1 gpm; 41°F @ 0.5 gpm; 59°F @ 0.35 gpm
-
Maximum Water Pressure: 150 psi
-
Market: Commercial; Residential
-
Application: Eyewash Fountains (EE Models - 90°F Max) Sanitation (S Models - 180°F); Kitchen Sinks; Multiple Sensor or Metering Faucets
-
Housing Material: Thermoplastic
-
Minimum Delivered Temperature: 70 °F
-
Hot Outlet Type: Compression
-
Cold Inlet Type: Compression
-
Minimum Water Pressure: 30 psi
-
Mounting Type: Wall Mounting
-
Cord Conductor Gauge: 12 AWG Wire
-
UNSPSC: 40101825
-
AMP: 25
-
ANSI: ANSI 372
-
CSA Certified: CSA C22.2 No. 64, CSA C22.2 No. 88
-
Indoor Outdoor: Indoor
-
NSF: NSF 372
-
NSF Certified: Yes
-
Number of Elements: 1
-
Pressure - Low: 30
-
Pressure - Maximum: 150 psi
-
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
-
Temperature Range: 70 to 140 Deg F
-
UL Listed: UL 94 5V-A
-
UPC: 091654923333
-
Water Connection Size: 3/8
-
Water Heater Type: Point of Use
-
Weight: 4
-
Cable Diameter (in): 12 AWG
-
Drain Connection Size (in): 3/8 in
-
Flow Rate (gpm): 3 gpm
-
Temperature Rating (deg): 70 to 140 deg F
-
Plumbing Connection Type: Compression
-
Style: Color
