Product Description

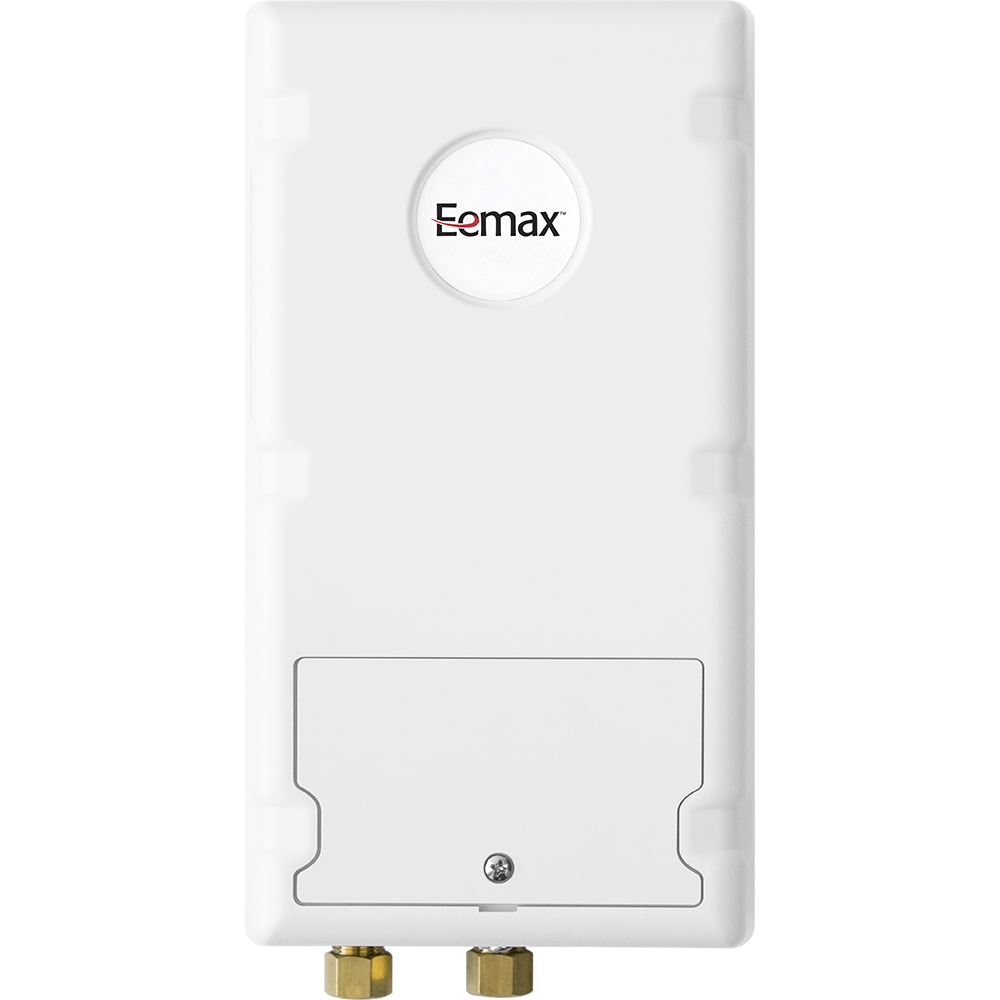

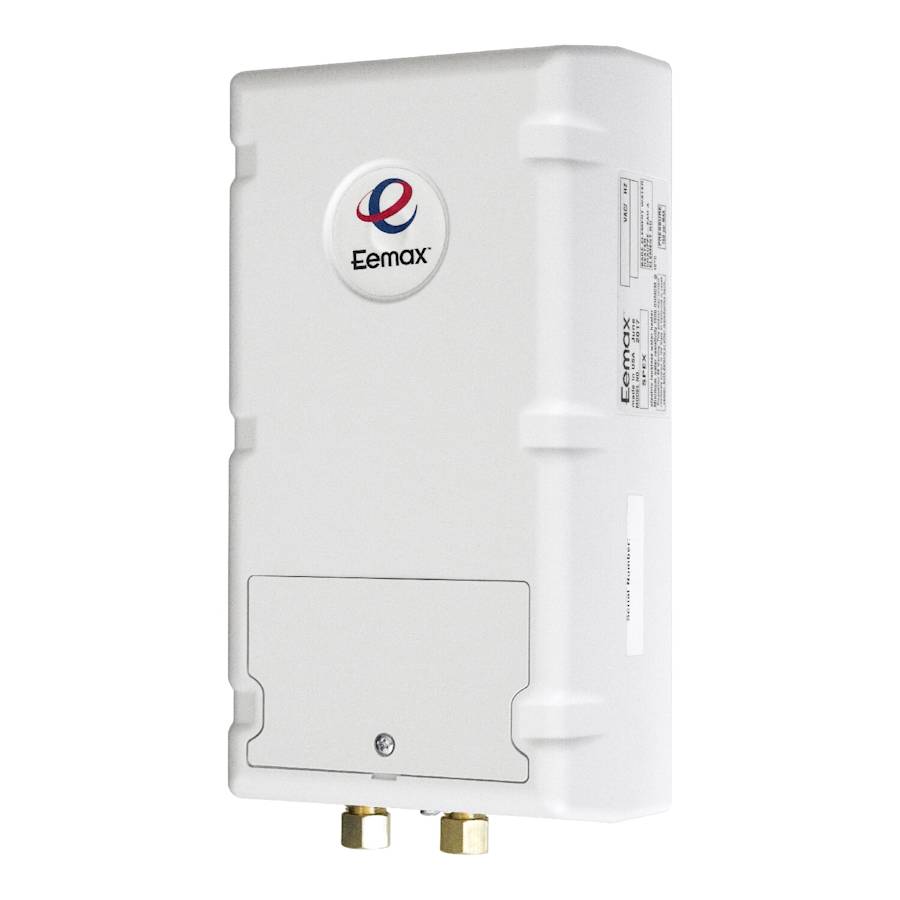

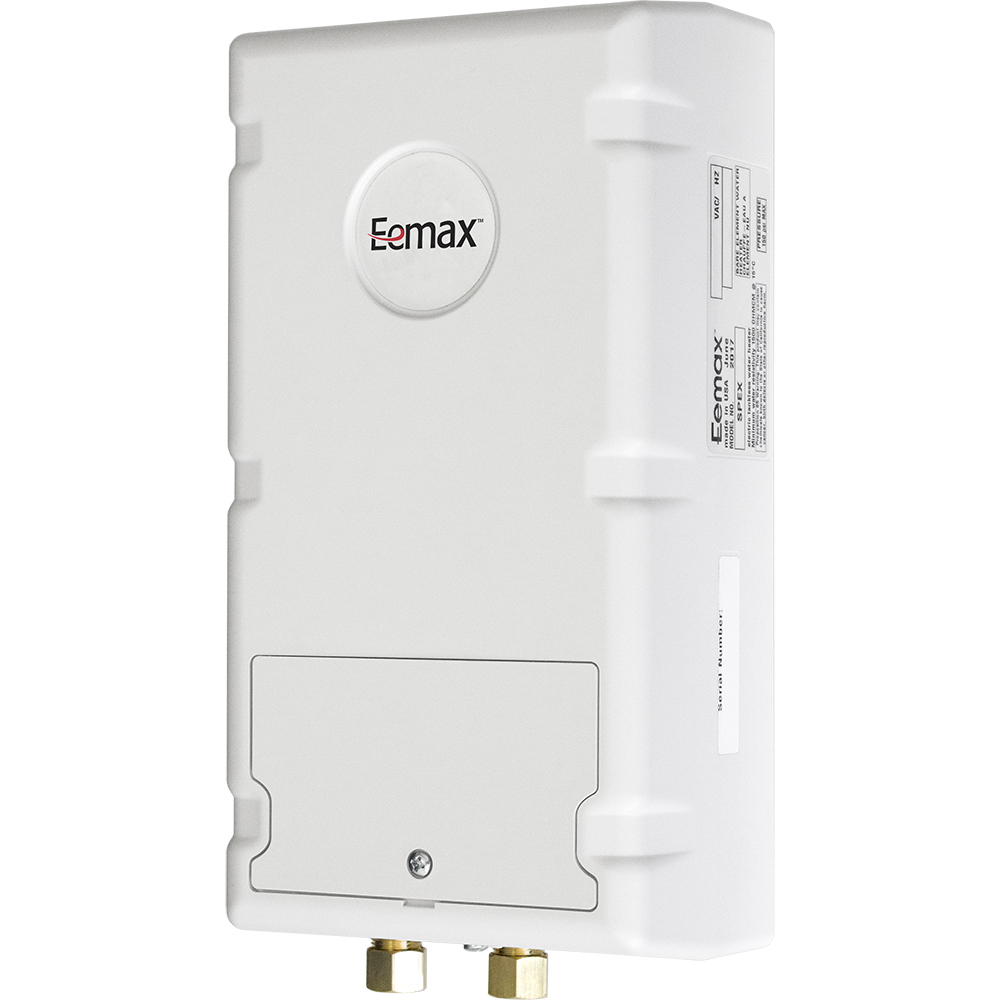

The EEMAX SPEX-55T is a thermostatic electric tankless water heater with active energy management and power modulating controls. It features microprocessor temperature control with a digital display for thermostatic accuracy. The heater mounts in any orientation and its flow meter activates only on demand, eliminating standby heat loss. It is suitable for ADA compliant facilities.
- Lowest activation in industry with 0.2 GPM turn on flow
- Active energy management with power modulating controls

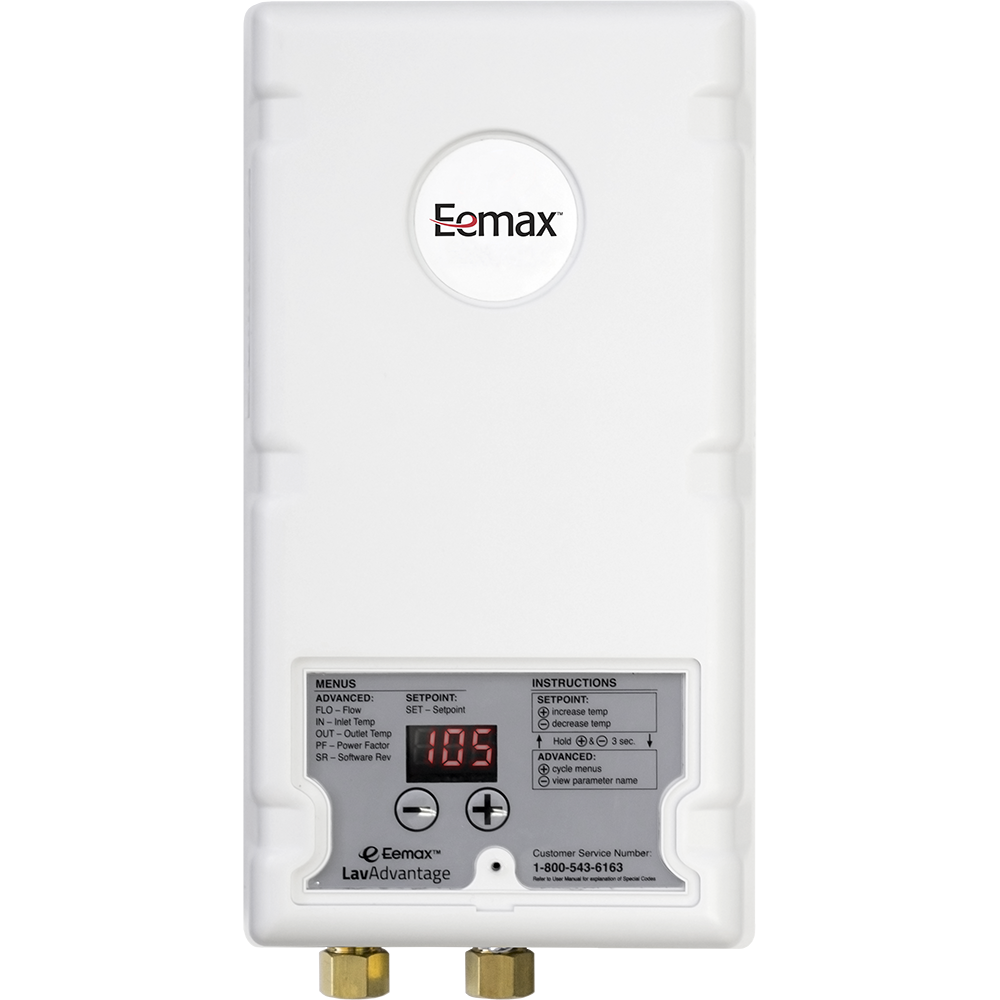

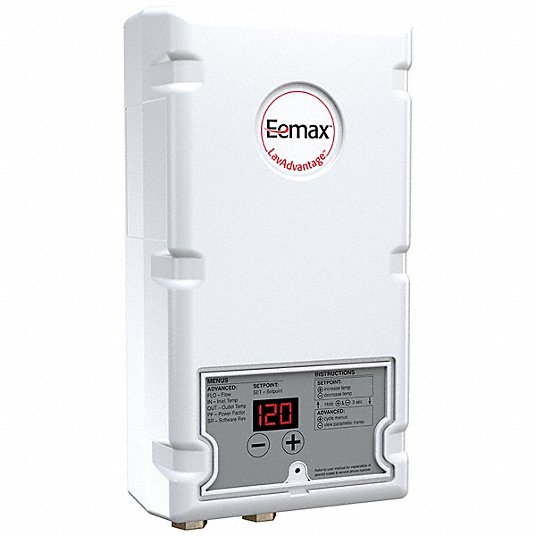

- Microprocessor temperature control with digital display for thermostatic accuracy
Product Highlights
Provides on demand hot water with precise thermostatic control. Compact size fits almost anywhere.
Product Information
Standard Information
-
Brand: EEMAX
-
Manufacturer Part Number: SPEX-55T
-
Country of Origin: USA
Technical Specifications
-
Voltage: 240V
-
Kilowatts: 5.5
-
Amperage: 23
-
Max Operating Pressure: 140 PSI
-
Min Operating Pressure: 30 PSI
-
Max Pressure: 150 PSI
-
Min Flow: 0.5 GPM
-
Max Flow: 2 GPM
-
Fuel Type: Electric
-
Efficiency: 99%
-
Installation Type: Under Sink
-
Phase: 1
-
Flow Rate at 60F Temp Rise (GPM): 0.6
-
Flow Rate at 40F Temp Rise (GPM): 0.5
-
Flow Rate at 70F Temp Rise (GPM): 0.5
-
Flow Rate at 50F Temp Rise (GPM): 0.8
-
Recommended Wire Size: 12 AWG
-
GPM Turn On: 0.2
-
Minimum Operating Temp: 70
-
Max Operating Temp: 140
-
Height: 9 inches
-
Width: 5 inches
-
Depth: 3 inches
-
Cover Material: ABS-UL 94 5VA Rated
-
Element Type: Replaceable cartridge - bare wire
-
Element Material: Nichrome
-
Adjustable Thermostat: True
-
Water Connection: 3/8"
-
NPT or Compression: Compression
-
Plumbing Configuration: Mutli-directional feed
-
Hot or Cold Feed: Pre-heated or cold water feed
-
# of Aerators Supplied: 0
-
Element: EX1050
-
Board: EX384-240
-
Relay/Contactor: EX255B
-
Eco: EX278A
-
Total Amp Draw: 23 A
-
Turn-On Flow Rate: 0.2 GPM
-
Water Connections: 3/8" Compression
-
Activation GPM: 0.2
-
Maximum Flow Rate: 3 GPM
-
Minimum Flow Rate: 0.2 GPM
-
Water Pressure (Max): 150 PSI
-
Water Pressure (Min): 35 PSI
-
Heating Technology: Electric Element
-
Indoor Installation: Yes
-
Number of Breakers: 1
-
Vent Type: Vent Free
-
Water Connection Type: Compression
-
Wattage: 5500
-
Wire Size: 12
-
Approved for Commercial Use: Yes
-
Certifications: AHRI, UL
-
Collection: LavAdvantage
-
Country Of Origin: USA
-
Low Lead Compliant: Yes
-
Made in America: Yes
-
Outdoor Approved: No
-
Product Variation: Point-Of-Use Water Heater
-
Series: LavAdvantage
-
Uniform Energy Factor: 0.97
-
Sub-brand: LavAdvantage
-
Operating Voltage: 240V AC
-
Minimum Flow Activation: 0.2 gpm
-
Environment: Indoor
-
Mounting Orientation: Horizontal; Vertical
-
Maximum Delivered Temperature: 140 00b0F
-
Control Type: Digital Display with Keypad
-
Cold Inlet Size: 3/8 in
-
Hot Outlet Size: 3/8 in
-
Overall Depth: 3 in
-
Overall Height: 10.75 in
-
Overall Width: 5.25 in
-
Power Consumption: 5,500 W
-
Standards: ADA Compliant; cETLus Listed; NSF/ANSI 372; UL Listed E86887
-
Temperature Rise @ Flow: 107 00b0F @ 0.35 gpm; 19 00b0F @ 2 gpm; 38 00b0F @ 1 gpm; 75 00b0F @ 0.5 gpm
-
Maximum Water Pressure: 150 psi
-
Market: Commercial; Residential
-
Application: Eyewash Fountains (EE Models - 90 00b0F Max) Sanitation (S Models - 180 00b0F); Kitchen Sinks; Multiple Sensor or Metering Faucets
-
Housing Material: Thermoplastic
-
Minimum Delivered Temperature: 70 00b0F
-
Hot Outlet Type: Compression
-
Cold Inlet Type: Compression
-
Minimum Water Pressure: 30 psi
-
Mounting Type: Wall Mounting
-
Cord Conductor Gauge: 12 AWG Wire
-
UNSPSC: 40101825
