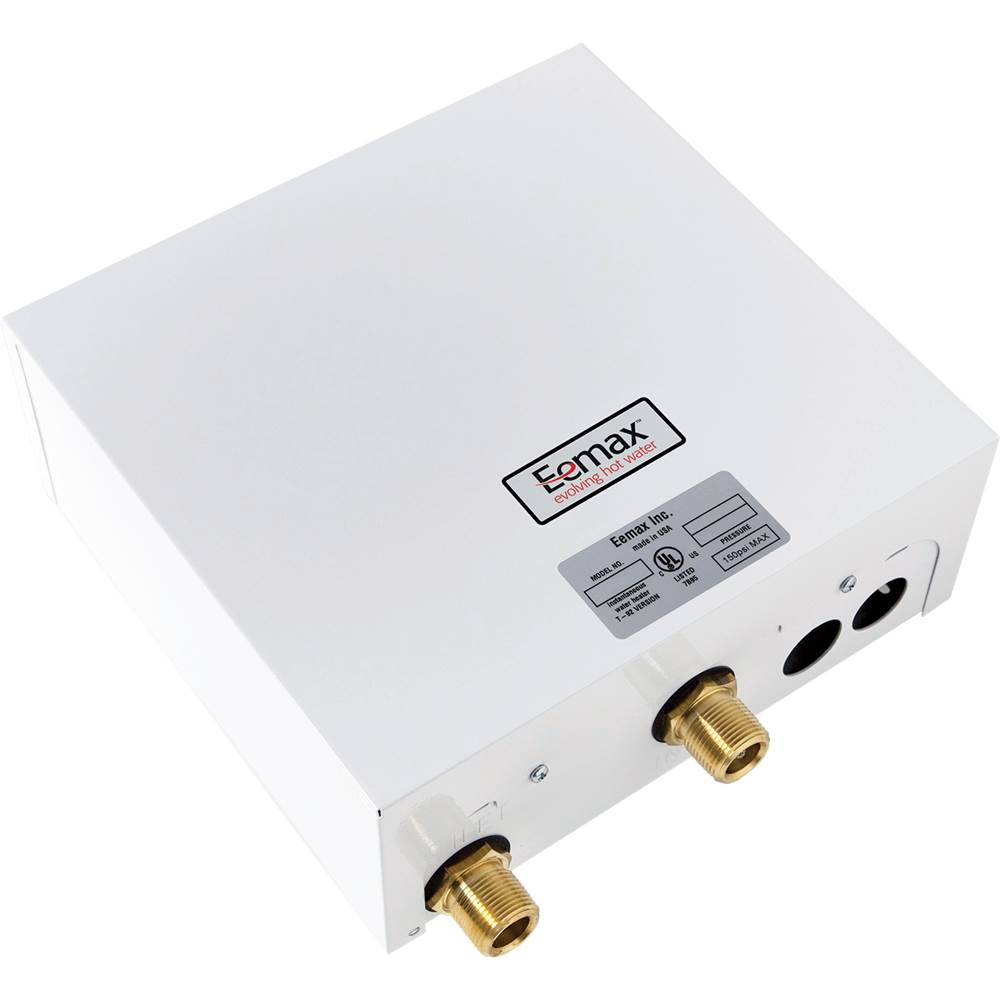

Eemax EX160TC ML Electric Tankless Water Heater 16kW 0.3 GPM

Product Description

The EEMAX EX160TC ML electric tankless water heater is designed for multi-lavatory applications, delivering on-demand hot water with a 0.3 GPM turn-on flow rate. This Series Two model features thermostatic control and is factory set from ambient to 180°F. It operates at 277V single phase and requires 58 amps, using 16kW of power.

• Turns on in stages based on hot water demand
• Provides continuous hot water without storage capacity
• Reduces installation costs by eliminating the need for a T&P relief valve or venting (check local codes)

Product Highlights

This tankless water heater activates only when hot water is needed, cutting energy waste. It features easy installation with 3/4" NPT fittings and a field-serviceable replaceable cartridge element.

Product Information

Standard Information

• Brand: EEMAX
• Manufacturer Part Number: EX160TC ML
• Country of Origin: United States

Technical Specifications

• GPM Turn On: 0.3
• Minimum Operating Pressure: 25 PSI
• Max Pressure Rating: 150 PSI
• Power: 16kW
• Volts: 277V
• Phase: Single
• Amperage: 58
• Recommended Wire Size: 10 AWG
• Product Type: Electric Tankless Water Heater
• Length: 11.25"
• Width: 11.00"
• Height: 4.75"
• Finish: White
• Collection: Series Two
• Material: Nichrome
• Application Commodity: Commercial
• Connection Size Inches: 3/4''
• Connection Type: NPT
• Cover Material: Powder Coated
• Element Type: Replaceable cartridge - bare wire
• Hot Or Cold Feed: Pre-heated or cold water feed
• Low Lead: NSF/ANSI 372, WQA
• Max Volume Gpm: 3
• Min Dynamic Operating Pressure: 35 PSI
• Orientation: Bottom feed
• Recm D 75c Cu Wire Size: 10 AWG
• Thermostat Range: 105 - 110
