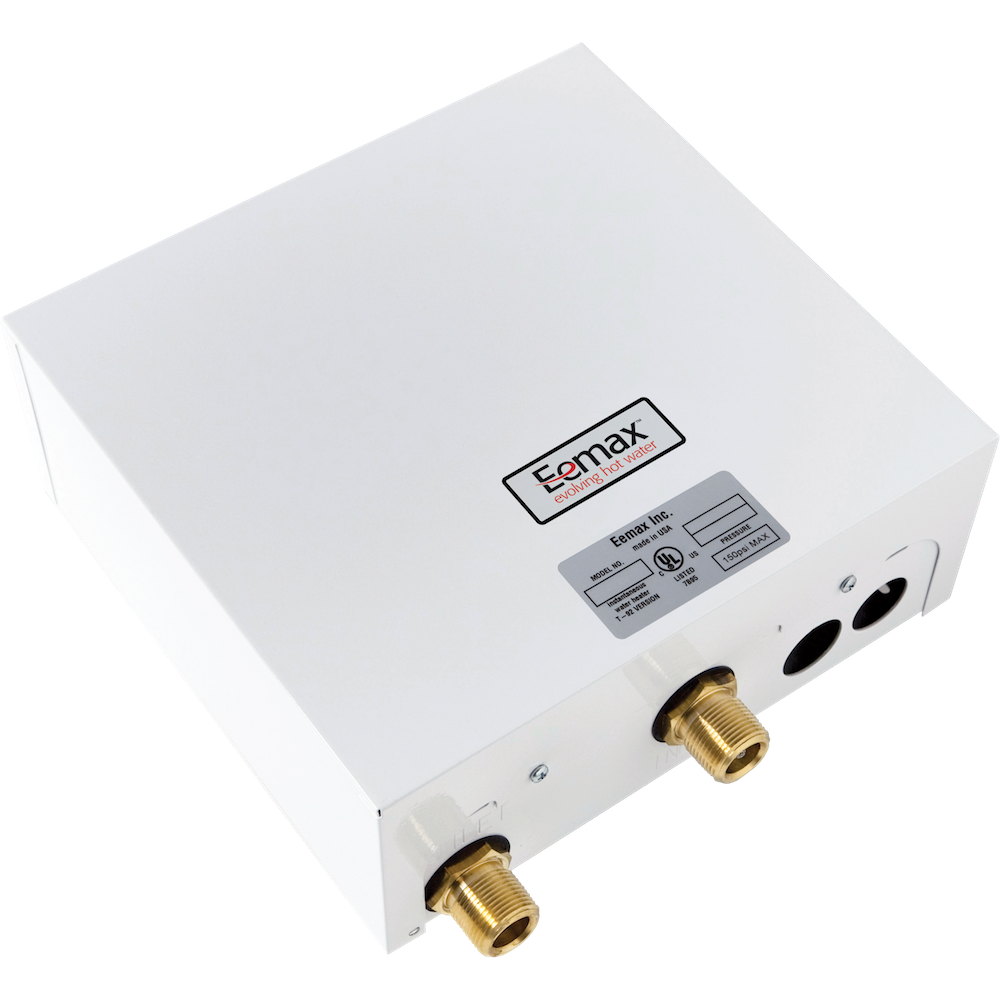

Eemax EX023240TC Series Two Electric Tankless Water Heater 23 kW (3/4 inches NPT) EX500 PRT

Brand: EEMAX
SKU: EX023240TC
Availability: In Stock

Ships same day if ordered by 12 pm
$706.46
$706.46
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Eemax EX023240TC is a 23 kW, 240 V Series Two electric tankless water heater that provides on-demand hot water for point-of-use and small commercial applications. The unit features a flow-activated thermostatic control, a 0.7–3 GPM operating range, and 3/4" NPT bottom-feed connections for integral plumbing. The compact, wall-mounted enclosure eliminates standby heat loss and supports continuous hot water delivery without a T&P valve.

  • Flow switch and thermostatic control enable on-demand operation and consistent outlet temperature
  • 23 kW at 240 V with 0.7–3 GPM flow range; recommended wiring 8 AWG and two breakers (nominal unit current ≈95.8 A)
  • 3/4" male NPT bottom-feed connections, replaceable nichrome heating element (EX500 PRT), powder-coated cover

Product Highlights

23 kW, 240 V; 0.7–3 GPM; 3/4" NPT bottom feed; 99% efficiency; wall-mounted

Product Information

Standard Information

  • Brand: EEMAX
  • Manufacturer Part Number: EX023240TC
Technical Specifications
Brand
Eemax
Manufacturer Part Number
EX023240TC
Model
EX023240TC
Power
23 kW
Input Voltage
240 V
Phase
1 (single-phase)
Amperage
95.8 A (nominal at 23 kW / 240 V); installation uses two 50 A breakers per manufacturer's wiring note
Recommended Wire Size
8 AWG (as typically recommended for two 50A circuits per manufacturer guidance)
Flow Rate
0.7-3 GPM
Turn-On Flow
0.7 GPM
Minimum Operating Pressure
35 PSI (manufacturer-specified)
Maximum Pressure
150 PSI
Minimum Operating Temperature
0 °F
Maximum Operating Temperature
140 °F
Connection Type
3/4" male NPT connections on bottom
Water Connection
3/4"
Plumbing Configuration
Bottom feed
Mounting Type
Wall-mounted
Dimensions
Height 10" x Width 10.5" x Depth 3" (10 x 10.5 x 3 inches)
Weight
10 lbs
Material
Enameled steel
Cover Material
Powder coated
Element Type
Replaceable cartridge (EX500 PRT)
Element Material
Nichrome
Element Part Number
EX500 PRT
Board Part Number
EX284AB-240
Relay/Contactor Part Number
EX1050-1
Efficiency
99%
Application
Point-of-use / 1 shower (small commercial & residential point-of-use)
