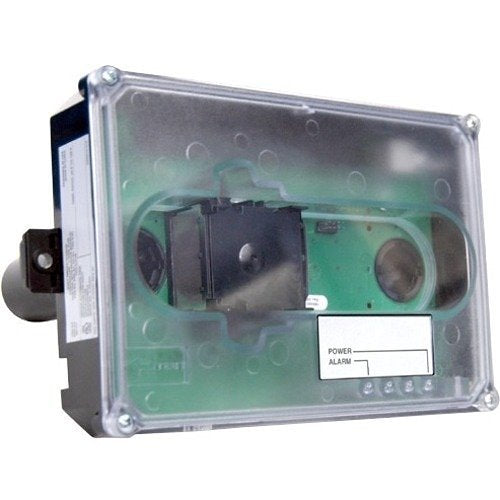

Edwards Signaling FX-PDD Intelligent Addressable Duct Smoke Detector

Product Description

The Edwards Signaling FX-PDD Intelligent Addressable Duct Smoke Detector is engineered for optimized performance in detecting smoke within HVAC systems. This product incorporates advanced photoelectric sensors capable of accurate and reliable detection.

• Compact size for installation in space-constricted areas, less than 2 inches deep.
• Operational across a broad temperature range from 32 to 120 degrees Fahrenheit with variable air velocity adaptability from 100 to 4,000 feet per minute.
• Visible status LEDs and magnetic test switch enhance functionality and ease of use.

Product Highlights

This duct smoke detector integrates seamlessly into existing setups with standard mounting options, includes environmental compensation features for stable operation, and offers additional control with an auxiliary relay.

Product Information

Standard Information

• Brand: Edwards Signaling
• MPN: FX-PDD
• Product Type: Smoke Detector

Technical Specifications

• Manufacturer: Carrier
• Height: 5.5 inches
• Width: 8.7 inches
• Depth: 1.9 inches
• Operating Temperature: 32 to 120 degrees Fahrenheit
• Air Velocity Rating: 100 to 4,000 feet per minute
• Voltage: 15.2 to 19.95 Vdc
• Connectivity: Wired
• Sensitivity: 0.79% to 2.46% obscuration/ft
• Certifications: UL Listed
