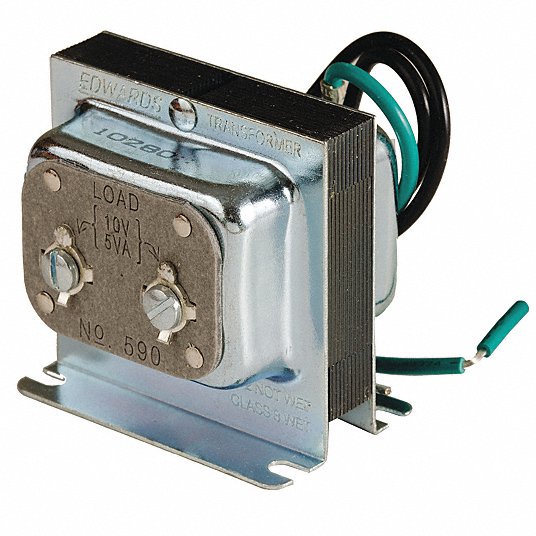

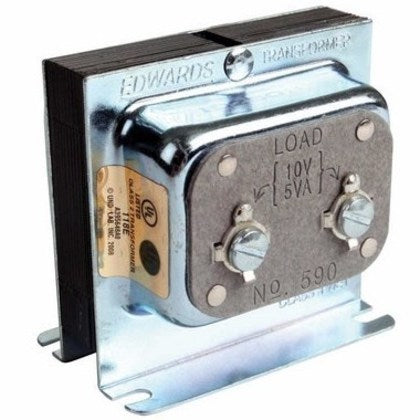

Edwards Signaling 590 Class 2 Signaling Transformer 5 VA

Product Description

The EDWARDS SIGNALING 590 Series Class 2 Signaling Transformer is a low voltage power source suitable for residential, commercial, and industrial uses. It mounts in a standard 1/2" knockout or surface mounts using the provided foot mounts and is suitable for mounting in both plastic and metal back boxes.

• VA Rating: 5 VA
• Primary Voltage: 120 V AC
• Secondary Voltage: 10 V AC

Product Highlights

Easy to install, this transformer features non-regenerative thermal overload protection, a grounding wire, pre-stripped primary side pigtails, and screw terminal connections on the secondary.

Product Information

Standard Information

• Brand: EDWARDS SIGNALING
• Manufacturer Part Number: 590
• Country of Origin: China

Technical Specifications

• VA Rating: 5 VA
• Secondary Voltage: 10 VAC
• Primary Voltage: 120 VAC
• Brand: EDWARDS SIGNALING
• Manufacturer: Edwards Signal
• Phase: 1
• Protective Device: Thermal Circuit Breaker
• Mounting: Foot
• Standards: CSA, UL
• Input Voltage: 120V AC
• Enclosure Type: Enclosed
• Output Voltage: 10V AC
• Frequency: 50/60 Hz
• Enclosure Finish: No Finish
• Enclosure Rating: Not Rated
• Mounting Type: Surface
• Series: 590
• Type: Low Voltage Class 2
• Application: For Residential, Commercial and Industrial Applications
• Volt Amps: 5
• Temperature Rise: Not Rated
• Sub-brand: Class II Transformer
• Connection - Primary: Wire Lead
• Connection - Secondary: Screw Terminal
• NEMA Enclosure Rating: Not Rated
