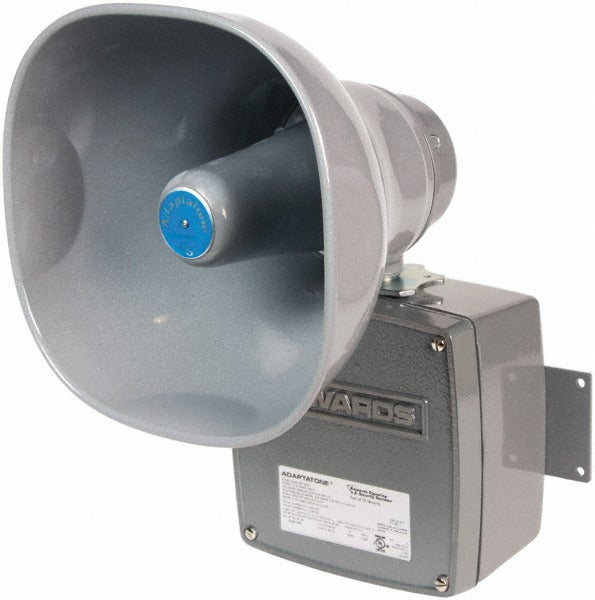

Edwards Signaling 5531M-24AQ Electronic Tone 24V

Product Description

The EDWARDS SIGNALING 5531M-24AQ is a 24-volt AC/DC electronic tone signaling device designed for industrial and commercial alarm and notification systems. It produces a sweeping tone pattern adjustable from 0 to 110 decibels at 10 feet, making it suitable for environments where audible alerts must cut through ambient noise. Rated at 0.98 amps, the unit operates on 24 volts AC or DC. Its weatherproof construction allows installation in locations exposed to moisture and outdoor conditions. Licensed electricians and fire alarm technicians are the primary installers of this device.

The 5531M-24AQ is well suited for commercial and light industrial applications where a reliable, weatherproof audible signaling device is required. Typical installations include manufacturing facilities, warehouses, loading docks, and exterior building locations where weather exposure is a factor. The sweeping tone output allows it to function across a wide decibel range, giving installers flexibility for different notification zones. It is not rated for explosion-proof environments and should not be installed in classified hazardous locations.

Key Features

• Operates on 24 volts AC or DC for compatibility with standard fire alarm and signaling panels
• Adjustable output from 0 to 110 decibels at 10 feet for flexible volume settings
• Sweeping tone pattern for distinct audible notification
• Weatherproof construction rated for outdoor and moisture-exposed installations
• UL listed to meet commercial and industrial installation code requirements
• Compact housing measuring 8 inches wide, 8.73 inches tall, and 13 inches in length

Compatibility

Designed as an OEM-style replacement or new-installation audible signaling device for 24-volt AC/DC fire alarm, security, and industrial notification systems.

Installation Notes

Installation should be performed by a licensed electrician or certified fire alarm technician in accordance with NEC Article 760 and applicable local codes. Disconnect and lock out all power to the signaling circuit before wiring or mounting the device. Verify that the supply circuit voltage and current capacity match the 24-volt, 0.98-amp rating of this device before energizing. Do not install in hazardous or classified locations, as this unit is not explosion-proof rated.
