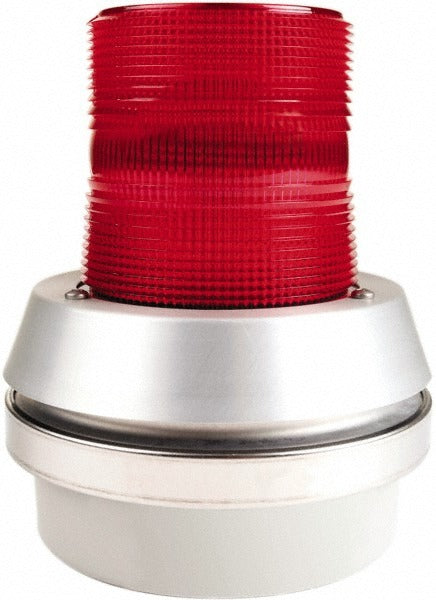

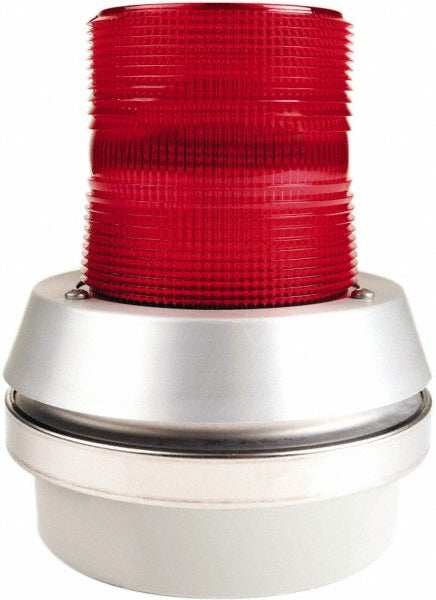

Edwards Signaling 51XBRFR120A Flashing Led Warning Light

Product Description

The EDWARDS SIGNALING 51XBRFR120A is a red flashing LED warning light designed for visual alarm and signaling applications in commercial and industrial environments. Operating at 120VAC and drawing 0.18 amps, it delivers 65 flashes per minute through a red lens mounted on a 6-inch diameter housing that stands 7.375 inches tall. The LED lamp type provides long service life with low current draw. Licensed electricians and fire alarm technicians are the primary installers for this type of signaling device.

This flashing light is rated for both indoor and outdoor use, making it suitable for warehouses, manufacturing facilities, loading docks, mechanical rooms, and exterior building applications where visual notification is required. It supports five mounting configurations: box, panel, pipe, surface, and wall mount. The pipe mount accepts a half-inch pipe or pendant fitting, giving installers flexibility across a wide range of mounting conditions. Its operating temperature range of -31 degrees F to 150.80 degrees F covers most field conditions.

Key Features

• Red LED lamp with 65 flashes per minute for high-visibility signaling
• Operates at 120VAC with a current draw of 0.18 amps
• Five mounting options: box, panel, pipe, surface, and wall mount
• Impact-resistant, shatter-resistant, and vibration-resistant lens construction
• Rated for indoor and outdoor use across a wide temperature range
• cULus Listed and UL Listed for code-compliant installations

Compatibility

Designed as an OEM-style visual signaling device suitable for use in fire alarm, security, and industrial warning systems requiring a 120VAC flashing red indicator light with box, panel, pipe, surface, or wall mounting.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and any applicable local codes. De-energize the circuit at the breaker before wiring the unit. When using the pipe mount option, verify the half-inch pipe fitting is secure and the conduit entry is properly sealed for outdoor installations. Confirm the mounting surface or enclosure is rated for the intended environment before final installation.
