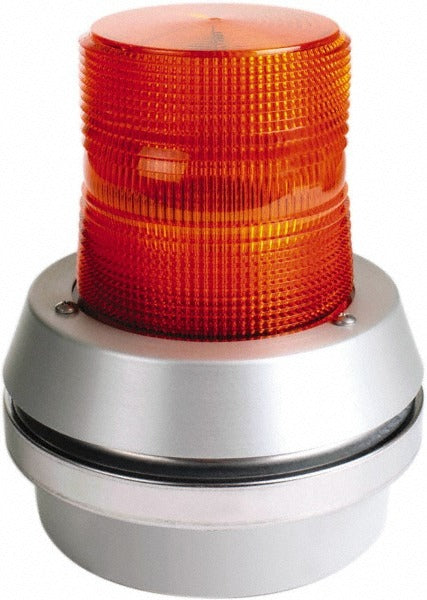

Edwards Signaling 51XBRFA120A Amber Flashing Led Light 120VAC

Product Description

The EDWARDS SIGNALING 51XBRFA120A is an amber LED flashing warning light designed for visual signaling in industrial, commercial, and facility applications. Operating at 120 volts AC and drawing 0.18 amps, this unit produces 65 flashes per minute through an impact-resistant, shatter-resistant amber lens. The fixture measures 6 inches in diameter and 7.38 inches in height. It is installed by electricians and facility maintenance technicians wherever a reliable, attention-drawing visual alert is required. The LED lamp type provides long service life compared to incandescent alternatives, reducing maintenance frequency in demanding environments.

This flashing light is suited for both indoor and outdoor installations across a wide range of applications including manufacturing floors, warehouses, loading docks, machine guarding, access control points, and mechanical rooms. Its versatile mounting design accepts box, panel, pipe, and surface wall mount configurations, giving installers flexibility in placement. The 1/2-inch pipe mount option allows pendant or post-mounted installations. Rated for temperatures from -31 degrees F to 150.80 degrees F, it performs reliably in harsh ambient conditions. It is appropriate for residential alarm systems, commercial security setups, and light industrial warning circuits.

Key Features

• LED lamp type for extended service life and low current draw at 0.18 amps
• 65 flashes per minute for clear, attention-drawing visual signaling
• Impact-resistant, shatter-resistant, and vibration-resistant amber lens
• Multiple mounting options: box, panel, pipe, surface, and wall mount
• Wide operating temperature range: -31 degrees F to 150.80 degrees F
• cULus Listed and UL Listed for code-compliant installations

Compatibility

Designed as an OEM-style visual signaling device suitable for 120VAC warning and alarm circuits in industrial, commercial, and institutional electrical systems.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before wiring. For pipe mount configurations, use a 1/2-inch threaded conduit or pipe fitting. Verify the mounting surface or box is rated for the fixture weight and environmental conditions at the install location.
