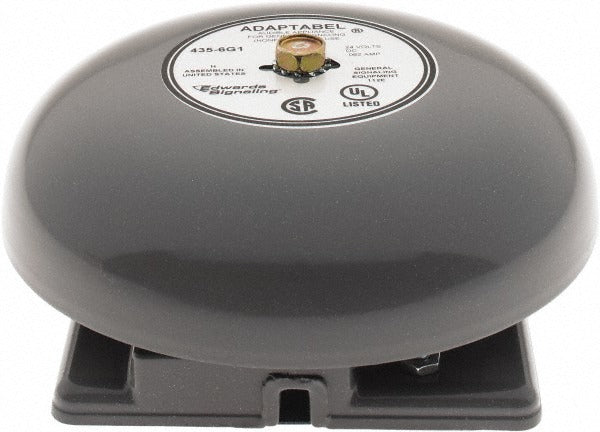

Edwards Signaling 435-6G1 Vibrating Bell 24 Vdc 6 Inch

Product Description

The EDWARDS SIGNALING 435-6G1 is a 24 VDC vibrating bell designed for outdoor and industrial signaling applications. The unit produces a continuous tone at 92 decibels measured at 10 feet, delivering clear audible alerts in loud or open environments. At 6 inches in diameter and 2.91 inches in height, it mounts compactly in a variety of locations. Drawing only 0.062 amps, it operates efficiently on low-voltage DC circuits. The weatherproof construction makes it suitable for installations where the device is exposed to moisture, dust, or outdoor conditions. Electricians and low-voltage alarm technicians are the primary installers of this type of signaling device.

The 435-6G1 is intended for outdoor signaling use in commercial, industrial, and light institutional settings. It suits applications where a continuous audible alert is required, such as access control entry points, fire alarm auxiliary circuits, process control notification, and facility perimeter signaling. The unit operates on 24 VDC, which is standard for most low-voltage alarm and building control panels. Its vibrating bell mechanism provides a traditional continuous tone pattern well recognized in industrial and commercial environments.

Key Features

• 92 dB output at 10 feet for reliable audible signaling in high-noise environments
• 24 VDC operation compatible with standard low-voltage signaling panels
• Vibrating bell mechanism producing a continuous tone pattern
• Weatherproof construction rated for outdoor locations
• Compact 6 inch diameter form factor at 2.91 inches in height
• Low current draw of 0.062 amps reduces panel load

Compatibility

Designed as an OEM-style replacement or new-installation vibrating bell for 24 VDC low-voltage signaling and alarm systems in outdoor or weatherproof-rated applications.

Installation Notes

Installation should be performed by a licensed electrician or qualified low-voltage technician in accordance with NEC Article 760 or the applicable local code. Disconnect and de-energize the signaling circuit at the panel before wiring. Verify the supply voltage is 24 VDC and that the panel output current capacity meets or exceeds the 0.062 amp draw of this device. Ensure all conduit entries and enclosure penetrations are properly sealed to maintain the weatherproof rating of the installation.
