Edwards Signaling 2302A-L Magnetic Contact Curtain Door IP6 30V 0.25A SPDT Track Mount Replacement 2304A-L

Product Description

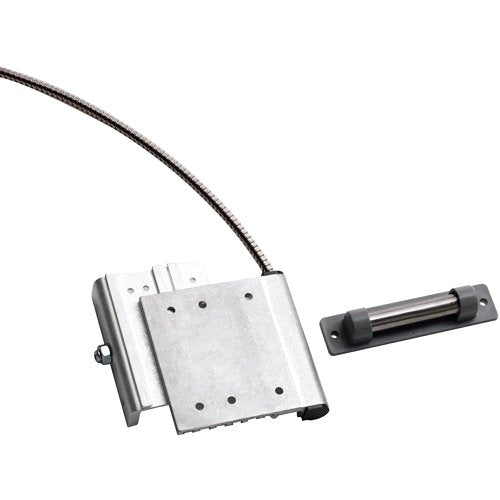

The Edwards Signaling 2302A-L Magnetic Contact is expertly designed for curtain-style overhead doors. This product, made by Carrier, optimizes the functionality and safety of your door assemblies. Its innovative alignment allows for direct mounting to the door channel, ensuring the magnet stays secure and out of the way, thereby reducing maintenance and false alarms caused by misaligned or damaged units.

• Specifically crafted for curtain-style overhead doors.
• Features an interlocking mounting bracket that adjusts to any channel width.
• Includes a horizontally mounted magnet in the door channel.

Product Highlights

Edwards Signaling's 2302A-L model promotes reliability and efficiency with its robust design, easy installation, and durable components. Ideal for use in various commercial settings.

Product Information

Standard Information

• Brand: Edwards Signaling
• Manufacturer: Carrier
• UPC: 046188064472

Technical Specifications

• Width: 3 inches
• Depth: 0.7 inches
• Material: Aluminum
• Warranty: 5-year limited warranty
• Operation Voltage: 30V
• Current: 0.25A
• Power Rating: 3W/VA
• Contact Type: SPDT
• Mounting Style: Track mount with 2 feet SS armored lead
